1641 (146-653-100) - Cub Cadet Garden Tractor (SN: 880001 - 899000) Fuel Tank Parts Diagram

Garden Tractor

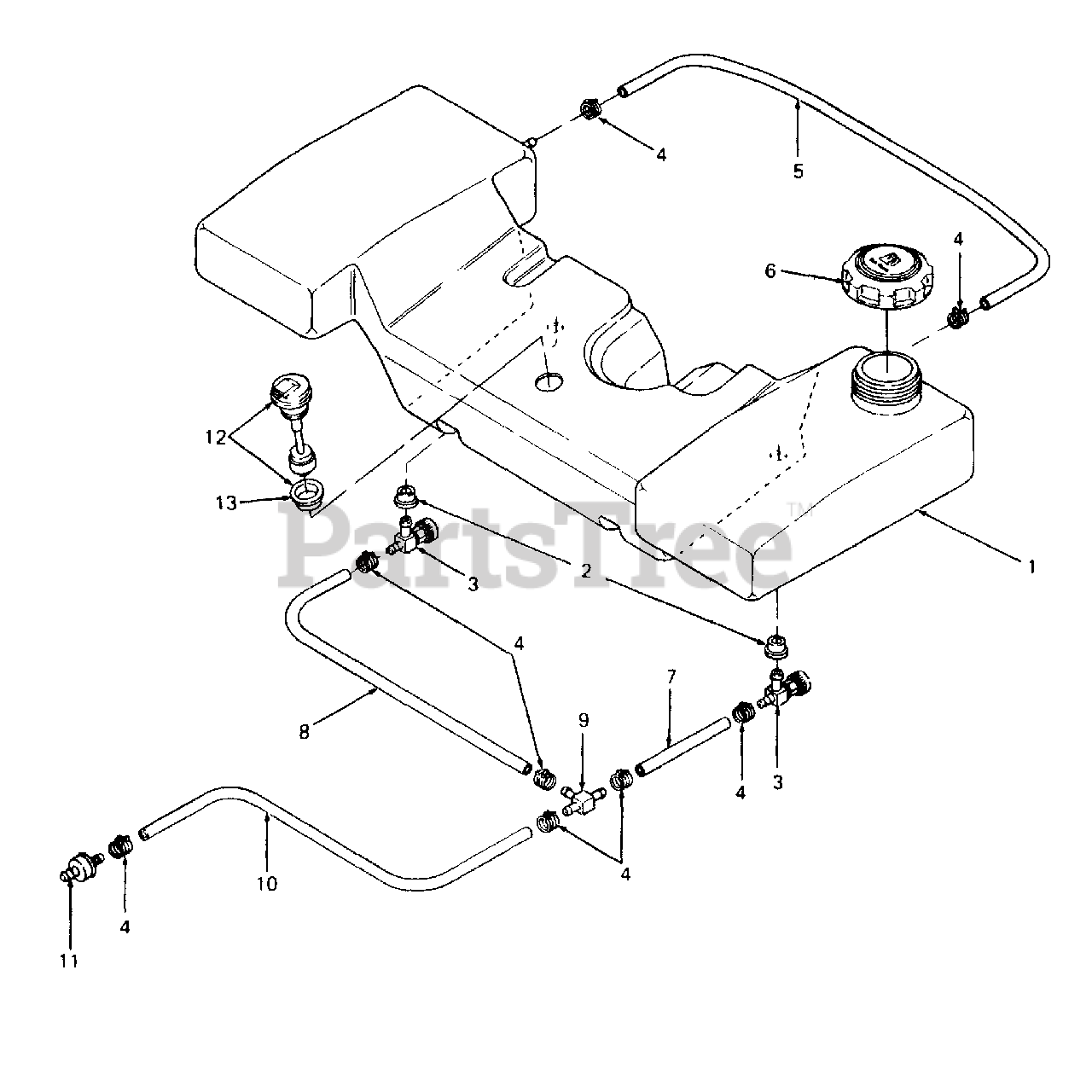

Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 751-3106

Tank, Fuel

$

$

Not available

2

Cub Cadet 751-3008

Bushing
(Superseded to 935-0149)

$7.99

$

In Stock, Qty 20+

0

3

Cub Cadet 751-3085

Valve, Fuel Shutoff

$

$

Not available

4

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

5

Line, Fuel - 24" Lg

Note: (Order Bulk Fuel Line Part No.750-3330, 10 Ft Lg)

$

$

Not available

6

Cub Cadet 751-3118

Cap, Fuel
(Superseded to 951-3124E)

$33.99

$

In Stock, Qty 20+

0

7

Line, Fuel - 5" Lg

Note: (Order Bulk Fuel Line Part No.750-3330, 10 Ft Lg)

$

$

Not available

8

Line, Fuel - 17" Lg

Note: (Order Bulk Fuel Line Part No. 750-3330, 10 Ft Lg)

$

$

Not available

9

Cub Cadet 751-3096

T-Fitting
(Superseded to 01003473)

$7.49

$

In Stock, only 3 left!

0

10

Line, Fuel - 41" Lg

Note: (Order Bulk Fuel Line Part No. 750-3330, 10 Ft Lg)

$

$

Not available

11

Cub Cadet BS-493629

Filter, Fuel
(Superseded to BS-84001895)

$7.99

$

In Stock, Qty 20+

0

12

Cub Cadet 751-3082

Sensor, Low Fuel
(Superseded to 951-3082)

$

$

Not available

13

Cub Cadet 750-3616

Bushing, Rubber

$

$

Currently unavailable
