16410 - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE BRIGGS & STRATTON MODEL 95902-3153-01 Parts Diagram

Walk-Behind Mower

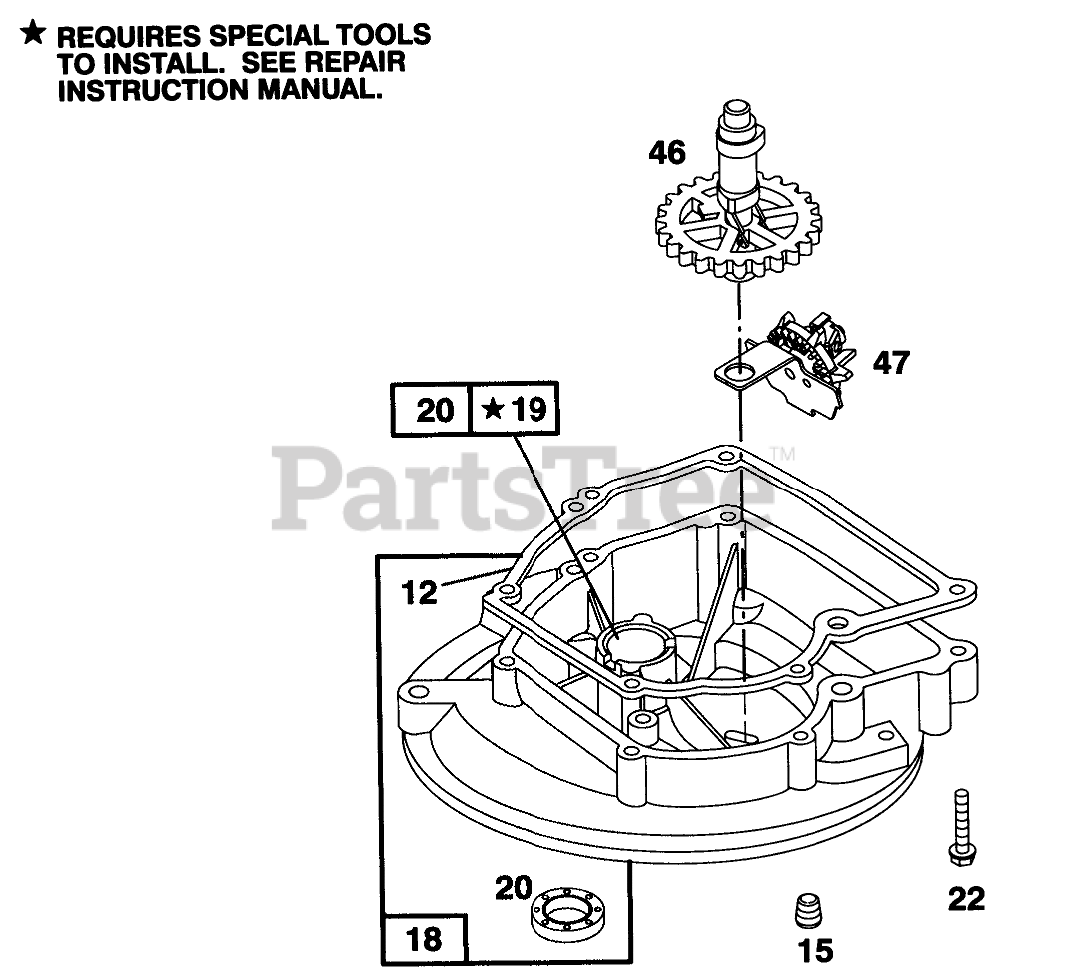

ENGINE BRIGGS & STRATTON MODEL 95902-3153-01 Parts Diagram

  • Title
12

Briggs & Stratton Part# 270833

Gasket-Crankcase-.015" thick
(Superseded to 692218)

Note: Included in Gasket Set-Part No. 298989.

Usually ships in 1 day

$

$4.57

0

Briggs & Stratton Part# 270895

Gasket-Crankcase .005"

Note: Included in Gasket Set-Part No. 298989.

Usually ships in 1 day

$

$8.15

0

Briggs & Stratton Part# 270896

Gasket-Crankcase .009"

Note: Included in Gasket Set-Part No. 298989.

Usually ships in 1 day

$

$4.80

0

15

Briggs & Stratton Part# 94720

Plug-Pipe
(Superseded to 691680)
Usually ships in 1 day

$

$4.35

0

18

Briggs & Stratton Part# 395384

Sump-Oil
(Superseded to 590569)
Usually ships same day

Not available

$

$

19
Usually ships same day

Not available

$

$

20

Briggs & Stratton Part# 391483

Seal-Oil
(Superseded to 391483S)
Usually ships in 1 day

$

$4.91

0

22

Briggs & Stratton Part# 94607

Screw-Mtg. Sem
(Superseded to 692551)
Usually ships in 6 to 12 days

$

$3.01

0

46

Briggs & Stratton Part# 493747

Gear-Cam
(Superseded to 691998)
Usually ships in 1 day

$

$51.98

0

47

Briggs & Stratton Part# 491688

Oil Slinger Gear and Bracket
(Superseded to 698690)
Usually ships in 6 to 12 days

$

$12.40

0
