16411 - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) Engine Assembly Parts Diagram

Walk-Behind Mower

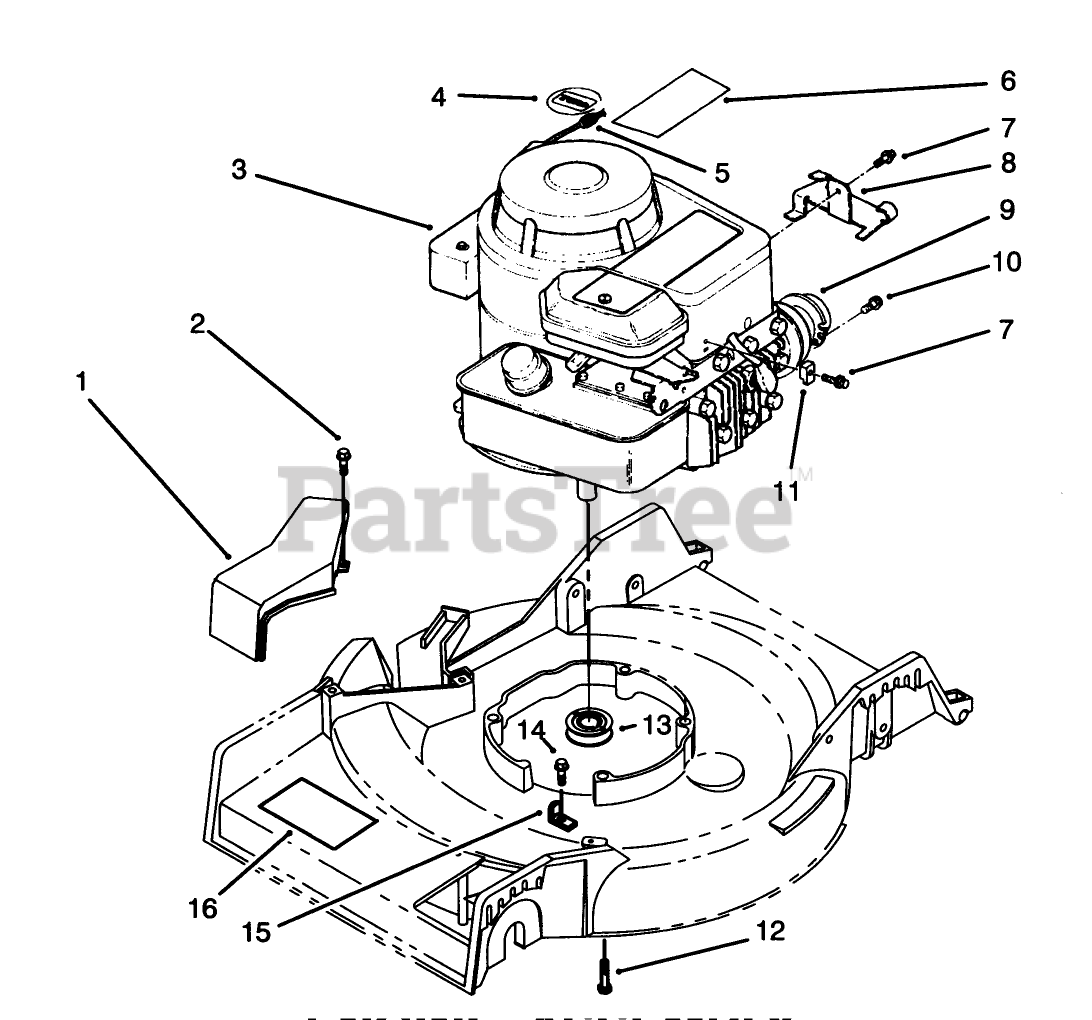

Engine Assembly Parts Diagram

  • Title

1

Toro 46-4780

BELT COVER 21" S D

$

$

Not available

2

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

3

Engine

$

$

Not available

4

Toro 92-2296

See Supercession: 68-5370
(Superseded to 68-5370)

$8.49

$

Usually ships in 3-6 days

0

5

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

6

Toro 92-3145

See Supercession: 86-9760
(Superseded to 86-9760)

$

$

Not available

7

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.99

$

Usually ships in 3-6 days

0

8

Toro 88-0460

CABLE BRACKET *

$

$

Not available

9

Toro 2210-174

DISCONTINUED

$

$

Not available

10

Toro 2210-173

DISCONTINUED

$

$

Not available

11

Toro 86-7980

CASING CLAMP F/W ENGINE

$

$

Not available

12

Toro 32144-105

THD FORM SCREW

$

$

Not available

13

Toro 23-0130

See Supercession: 93-0278
(Superseded to 93-0278)

$53.99

$

Usually ships in 3-6 days

0

14

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

15

Toro 70-8080

BELT GUIDE

$

$

Not available

16

Toro 71-0600

DECAL

$16.99

$

Usually ships in 3-6 days

0
