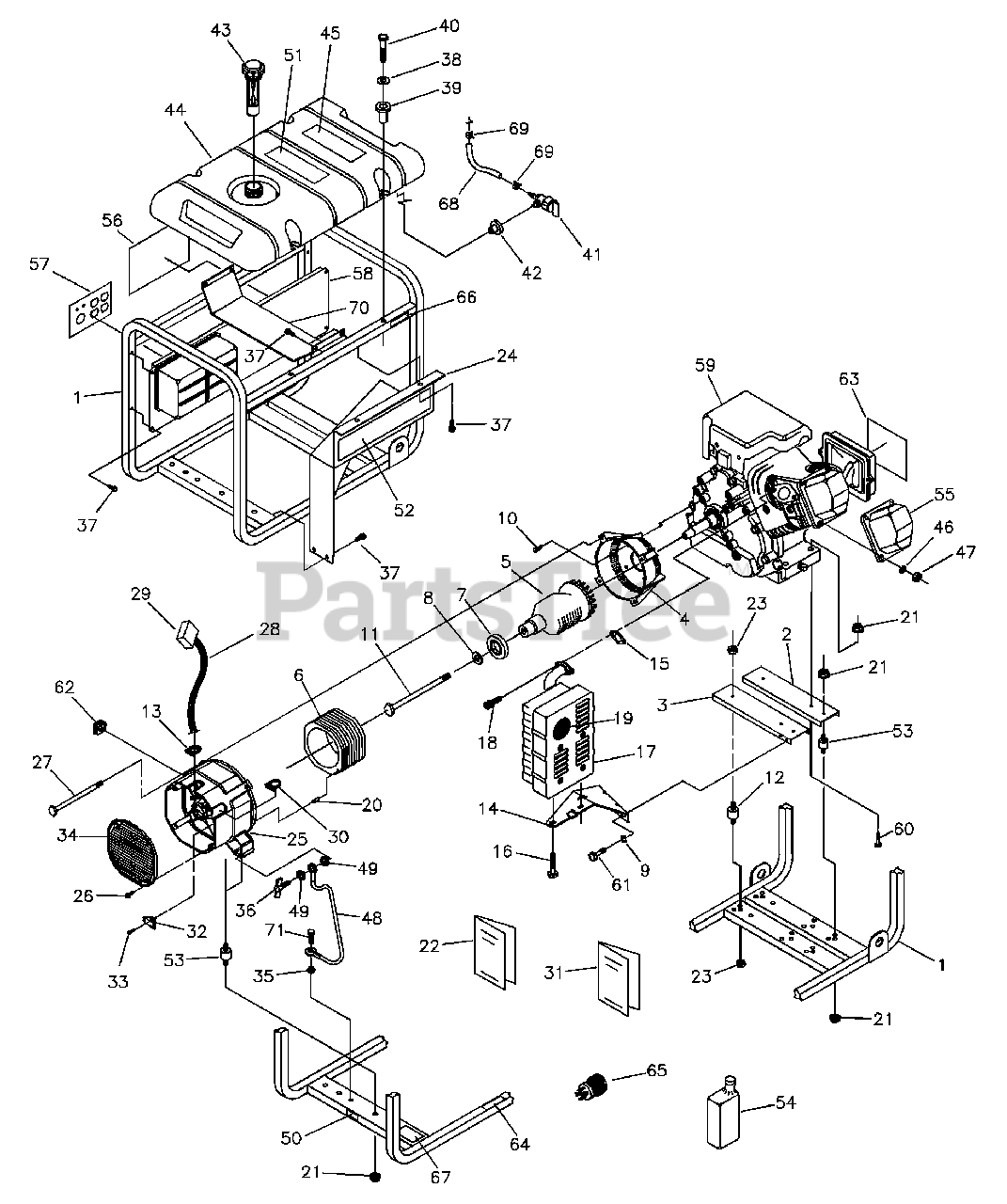

1642-0 - PowerBoss 5,500 Watt Portable Generator Main Unit Parts Diagram

5,500 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B189010

CRADLE

$

$

Currently unavailable

2

Briggs & Stratton B92531

SUPPORT, Engine
(Superseded to B92531GS)

$30.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B92731

SUPPORT, Engine & Muffler
(Superseded to B92731GS)

$23.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66365G

HOUSING, Engine Adapter
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 187746

ASSEMBLY, Rotor
(Superseded to 187746GS)

Note: (Inclds Item 7)

$290.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 187745

ASSEMBLY, Stator
(Superseded to 187745GS)

$

$

Not available

7

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796

WASHER, M8 Flat
(Superseded to 96796GS)

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22129

WASHER, M8 Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307

SCREW, 5/16-24 x 3/4 SEMS
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 99383

SCREW, 5/16-24 x 7-3/8

$

$

Currently unavailable

12

Briggs & Stratton 92609

MOUNT, Vibration
(Superseded to 92609GS)

$38.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 189127

GROMMET, Rubber

$

$

Currently unavailable

14

Briggs & Stratton 92532

BRACKET, Muffler
(Superseded to 92532GS)

$22.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 188551

GASKET, Exhaust

$

$

Currently unavailable

16

Briggs & Stratton 66476

SCREW, M6-1 x 12 w/Lock Washer
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 188213

MUFFLER
(Superseded to 312711GS)

$

$

Not available

18

Briggs & Stratton 60706

SCREW, 5/16 - 18 x 3/4"

$

$

Currently unavailable

19

Briggs & Stratton 83083

SCREEN, Spark Arrest
(Superseded to 83083GS)

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton 81917

PIN, 4mm x 10 Roll
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 67989

NUT, Flange Serrated
(Superseded to 67989GS)

$3.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 189027

MANUAL, Owners

$

$

Not available

23

Briggs & Stratton 189160

NUT, 5/16-18, Flanged Serrated
(Superseded to 189160GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton J189011

SHIELD, Heat

$

$

Currently unavailable

25

Briggs & Stratton 66825B

CARRIER, Rear Bearing

$

$

Currently unavailable

26

Briggs & Stratton 74908

TAPTITE, M5-0.8 x 10
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 86308A

BOLT, M6-1 x 145mm Stator
(Superseded to 86308AGS)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 84409

SLEEVING, Flexo, 1/2" X 15"

$

$

Currently unavailable

29

Briggs & Stratton 22695

FASTEN, On Tab Housing 6P
(Superseded to 22695GS)

$6.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 84242

GROMMET, Plastic
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 188826

MANUAL, Engine

$

$

Currently unavailable

32

Briggs & Stratton 91825

ASSEMBLY, Brush Holder

$

$

Not available

33

Briggs & Stratton 66849

TAPTITE, M5-0.8 x 16
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton B4871

COVER, Bearing Carrier
(Superseded to B4871GS)

$9.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 22769

WASHER, #10 Int. Shakeproof
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 86494

SCREW, M6-1.0 x 16 Wing
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2153

SCREW, #10 Self Drilling
(Superseded to B2153GS)

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 189155

WASHER, Flat, 6.6 x 21.6 x1.9

$

$

Currently unavailable

39

Briggs & Stratton 188973

GROMMET, Tank

$

$

Currently unavailable

40

Briggs & Stratton 189156

HHCS, M6-1.0 x 25

$

$

Currently unavailable

41

Briggs & Stratton 80270

VALVE, Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 78299

BUSHING, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 85134

CAP, Fuel Gauge
(Superseded to B4363GS)

$41.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 188817

TANK, Fuel, 5 Gallon
(Superseded to 193668GS)

Note: (Includes Items 41 & 42)

$

$

Not available

45

Briggs & Stratton 189235

DECAL, Start Instructions

$

$

Currently unavailable

46

Briggs & Stratton 22097

WASHER, Lock
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 22127

NUT, 1/4-20

$

$

Not available

48

14353621

WIRE, Ground

$

$

Not available

49

Briggs & Stratton 26850

WASHER, M6 Shakeproof

$

$

Not available

50

Briggs & Stratton B4986

DECAL, Ground, Green
(Superseded to B4986GS)

$2.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 92982

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189153

DECAL, Heat Shield

$

$

Currently unavailable

53

Briggs & Stratton B5072

MOUNT, Vibration
(Superseded to B5072GS)

$12.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton BB3061

BOTTLE, Oil, 28 oz
(Superseded to BB3061GS)

$13.99

$

In Stock, only 1 left!

0

55

Briggs & Stratton 187330

HOOD, Rocker Arm Cover

$

$

Currently unavailable

56

Briggs & Stratton 189025

DECAL, Panel, Side

$

$

Currently unavailable

57

Briggs & Stratton 189024

DECAL, Control Panel

$

$

Currently unavailable

58

Briggs & Stratton 189018

ASSEMBLY, Control Panel

$

$

Currently unavailable

59

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

60

Briggs & Stratton 39414

HHCS, M8 - 1.25 x 35
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 22142

SCREW, 5/16 - 18 x 3/4"
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 67022

GROMMET, Rubber
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 189186

DECAL, Cover,Air Cleaner

$

$

Currently unavailable

64

Briggs & Stratton 77816

DECAL, Hot Muffler
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 43438

PLUG, 250V, 30A
(Superseded to 43438GS)

$26.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 73054

DECAL, Shut-Off, Fuel

$

$

Not available

67

Briggs & Stratton 20566

DECAL, 1-800 #
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 30340

HOSE, 1/4" x 7.5"

$3155.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 48031C

CLAMP

$

$

Not available

70

Briggs & Stratton J189297

STRAP, Tank, Fuel

$

$

Currently unavailable

71

Briggs & Stratton 86292

SCREW, #10 Self Drilling
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0
