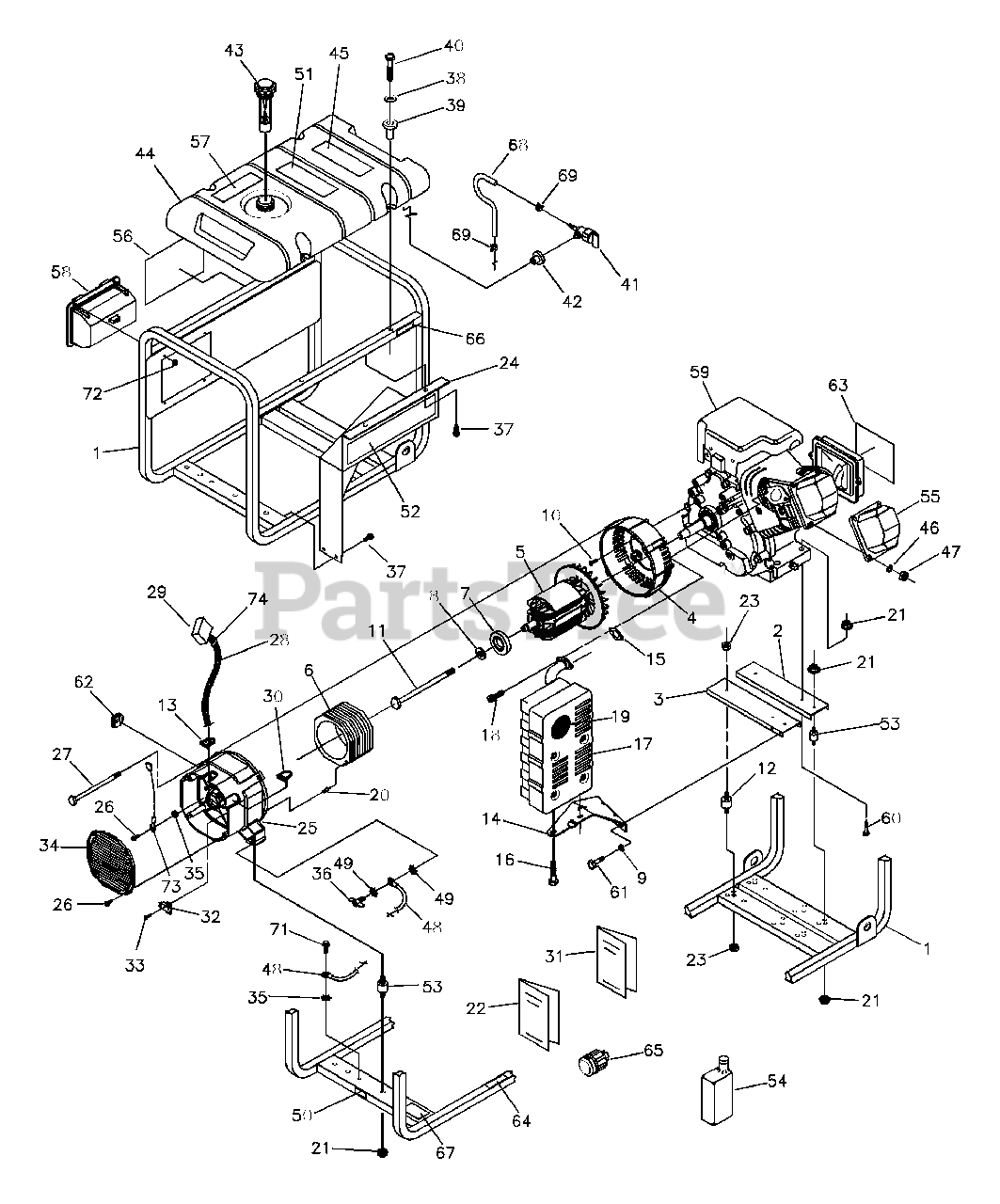

1642-1 - PowerBoss 5,500 Watt Portable Generator Main Unit Parts Diagram

5,500 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B188894GS

CRADLE

$116.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B92531GS

SUPPORT, Engine

$30.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B92731GS

SUPPORT, Engine & Muffler

$23.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66365GGS

HOUSING, Engine Adapter

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 187746GS

ASSEMBLY, Rotor

Note: (Inclds Item 7)

$290.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 187745GS

ASSEMBLY, Stator

$

$

Not available

7

Briggs & Stratton 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22129GS

WASHER, M8 Lock

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307GS

SCREW, 5/16-24 x 3/4 SEMS

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 99383GS

SCREW, 5/16-24 x 7-3/8

$16.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 92609GS

MOUNT,Vibration

$38.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 189127GS

GROMMET, Rubber

$4.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 92532GS

BRACKET, Muffler

$22.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 188551GS

GASKET, Exhaust
(Superseded to 695398)

$7.99

$

In Stock, Qty 6

0

16

Briggs & Stratton 66476GS

SCREW, M6-1 x 12 w/Lock Washer

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 188213GS

MUFFLER
(Superseded to 312711GS)

$

$

Not available

18

Briggs & Stratton 60706GS

SCREW, 5/16 - 18 x 3/4"

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton 81917GS

PIN, 4mm x 10 Roll

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 67989GS

NUT, Flange Serrated

$3.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 189438GS

MANUAL, Owners

$16.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 189160GS

NUT, 5/16-18, Flanged Serrated

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton J189011GS

SHIELD, Heat

$75.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton SRV66825DGS

CARRIER, Rear Bearing

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 86308AGS

BOLT, M6-1 x 145mm Stator

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 84409GS

SLEEVING, Flexo, HW 1/2" X 1.25 ft.

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 22695GS

FASTEN, On Tab Housing 6P

$6.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 84242GS

GROMMET, Plastic

$4.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 188826GS

MANUAL, Engine
(Superseded to 275092GS)

$11.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 91825GS

ASSEMBLY, Brush Holder

$54.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 66849GS

TAPTITE, M5-0.8 x 16

$4.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton B4871GS

COVER, Bearing Carrier

$9.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 23762GS

WASHER, #10 Ext. Shakeproof

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 86494GS

SCREW, M6-1.0 x 16 Wing

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2153GS

SCREW, #10 Self Drilling

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 189155GS

WASHER, Flat, 6.6 x 21.6 x1.9

$9.49

$

In Stock, only 1 left!

0

39

Briggs & Stratton 188973GS

GROMMET,Tank

$3.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 189156GS

HHCS, M6-1.0 x 25

$2.49

$

In Stock, only 1 left!

0

41

Briggs & Stratton 80270GS

VALVE,Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 78299GS

BUSHING, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 85134GS

CAP, Fuel Gauge
(Superseded to B4363GS)

$41.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 188817GS

TANK, Fuel, 5 Gallon
(Superseded to 193668GS)

Note: (Includes Items 41 & 42)

$

$

Not available

45

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 22097GS

WASHER, Lock

$3.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 22127GS

NUT, 1/4-20

$1.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 26850GS

WASHER, M6 Shakeproof

$2.99

$

In Stock, only 1 left!

0

50

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189153GS

DECAL, Heat Shield

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton B5072GS

MOUNT,Vibration

$12.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton BB3061GS

BOTTLE, Oil, 28 oz

$13.99

$

In Stock, only 1 left!

0

55

Briggs & Stratton 187330GS

HOOD, Rocker Arm Cover

$12.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 189025GS

DECAL, Panel, Side

$11.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 189157GS

ASSEMBLY, Control Panel

$106.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

60

Briggs & Stratton 39414GS

HHCS, M8 - 1.25 x 35

$2.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 22142GS

SCREW, 5/16 - 18 x 3/4"
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

62

Briggs & Stratton 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 189186GS

DECAL, Cover,Air Cleaner

$10.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 77816GS

DECAL, Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 43438GS

PLUG, 250V, 30A

$26.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 73054GS

DECAL, Shut-Off, Fuel

$8.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 20566GS

DECAL, 1-800 #

$1.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 190234GS

HOSE, Fuel, Formed
(Superseded to 189826GS)

$23.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 48031CGS

CLAMP
(Superseded to 691038)

$3.99

$

In Stock, Qty 7

0

71

Briggs & Stratton 86292GS

SCREW, #10 Self Drilling
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

72

Briggs & Stratton 189164GS

NUT, Palnut, 3/16"

$3.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 189521AGS

WIRE, Ground, Panel

$4.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 28739AGS

TIE WRAP

$1.49

$

Usually ships in 2-12 days

0
