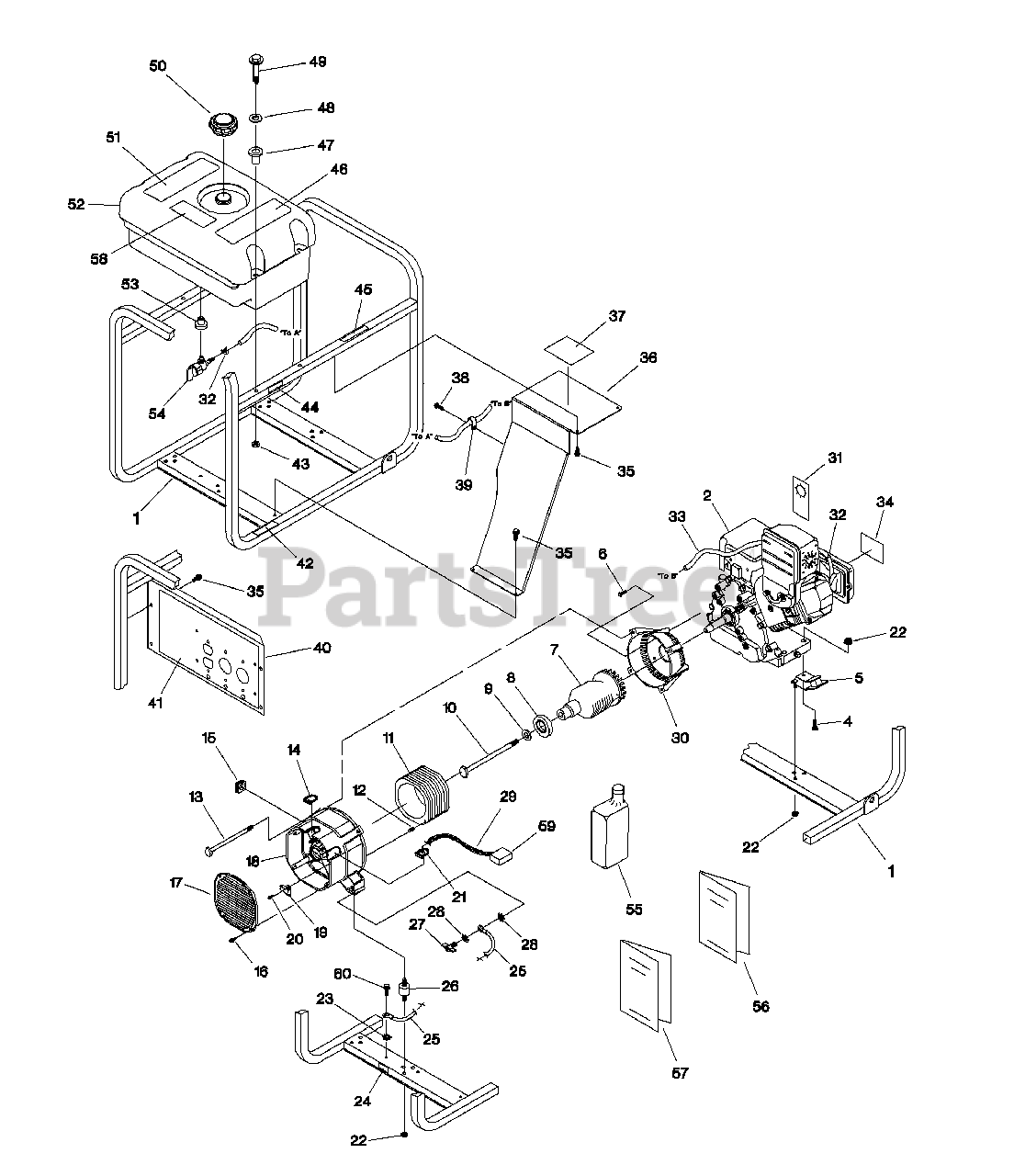

1643-0 - Generac 5,000 Watt Portable Generator Main Unit Parts Diagram

5,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton A188972

CRADLE

$

$

Currently unavailable

2

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

4

Briggs & Stratton 76222

PPHMS, M8 -1.25 x 40 mm
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 70642

MOUNT,Vibration 45 Deg.
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

6

Briggs & Stratton 86307

HHMS, 5/16" x 3/4"
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 91844J

ASSEMBLY, Rotor
(Superseded to 91844JGS)

Note: (Includes Item 8)

$

$

Not available

8

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 96796

WASHER, Special
(Superseded to 96796GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 47480

HHCS, 5/16" - 24 x 7"
(Superseded to 5047480B)

$205.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 91859J

ASSEMBLY, Stator
(Superseded to 91859AGS)

$

$

Not available

12

Briggs & Stratton 81917

PIN, 4 x 10 Roll
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 86308C

HHCS, M6 - 1.0 x 130, SEMS
(Superseded to 86308CGS)

$5.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 84242

GROMMET, R. B. C.
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 67022

GROMMET, Bushing
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 74908

TAPTITE, M5 - 0.8 x 10
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B4871

COVER, Bearing Carrier
(Superseded to B4871GS)

$9.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66825B

CARRIER, Rear Bearing

$

$

Currently unavailable

19

Briggs & Stratton 91825

ASSY., Brush & Bridge Rectifier

$

$

Not available

20

Briggs & Stratton 66849

SCREW, M5 - 0.8 x 16
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 189127

GROMMET, Bushing

$

$

Currently unavailable

22

Briggs & Stratton 67989

NUT, M8 Flange Serrated
(Superseded to 67989GS)

$3.49

$

In Stock, Qty 20+

0

23

Briggs & Stratton 22769

WASHER, Shakeproof #10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B4986

DECAL, Ground
(Superseded to B4986GS)

$2.99

$

In Stock, only 1 left!

0

25

14353621

WIRE, Ground

$

$

Not available

26

Briggs & Stratton 85652

MOUNT,Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 17

0

27

Briggs & Stratton 86494

WING SCREW, M6 x 16
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 26850

WASHER, Shakeproof 1/4"

$

$

Not available

29

Briggs & Stratton 84409

SLEEVING, Flexo HW 1/2" x 15"

$

$

Currently unavailable

30

Briggs & Stratton 66365G

HOUSING, Engine Adapter
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 70453

TAG, Oil Warning
(Superseded to 70453GS)

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 48031C

CLAMP, Hose 1/2"

$

$

Not available

33

Briggs & Stratton 30340

HOSE, 1/4" x 21" I.D. SAE-30R7

$3155.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 189241

DECAL,Air Cleaner
(Superseded to 708218)

$8.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton B2153

SCREW, Self Drill 12-14 x 7/8"
(Superseded to B2153GS)

$4.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton J189055

HEAT SHEILD, Muffler

$

$

Currently unavailable

37

Briggs & Stratton 189316

DECAL,Warning, Handover Heat

$

$

Currently unavailable

38

Briggs & Stratton 56893

CRIMPTITE, #10-24 x 1/2"
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

39

Briggs & Stratton 55934G

CLAMP,Vinyl Coated
(Superseded to 55934GGS)

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 189449

PANEL, Control

$

$

Currently unavailable

41

Briggs & Stratton 189077

DECAL, Control Panel

$

$

Currently unavailable

42

Briggs & Stratton 20566

DECAL, 1-800
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 77395

NUT, M6 Flange Lock
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 73054

DECAL, Fuel Shut-Off

$

$

Not available

45

Briggs & Stratton 77816

DECAL, Caution Hot Muffler
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 189235

DECAL, Start Instruction

$

$

Currently unavailable

47

Briggs & Stratton 188973

GROMMET, Mounting Tank

$

$

Currently unavailable

48

Briggs & Stratton 189155

WASHER, Flat, 6.6 x 21.6 x 1.9

$

$

Currently unavailable

49

Briggs & Stratton 189286

CAPSC., M6 x 45mm Hx Hd

$

$

Currently unavailable

50

Briggs & Stratton 90878

CAP, Fuel
(Superseded to 846987)

$21.99

$

In Stock, Qty 6

0

51

Briggs & Stratton 92982

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189074

TANK, Fuel, 5 Gallon, Assy.

Note: (Includes Items 53 & 54)

$

$

Currently unavailable

53

Briggs & Stratton 78299

BUSHING, Fuel Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

54

Briggs & Stratton 80270

VALVE, Fuel
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

55

Briggs & Stratton BB3061

OIL BOTTLE
(Superseded to BB3061GS)

$13.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 189079

MANUAL, Generator

$

$

Currently unavailable

57

Briggs & Stratton 188826

MANUAL, Engine

$

$

Currently unavailable

58

Briggs & Stratton 188333

DECAL, Gas Tank Fill

$

$

Currently unavailable

59

Briggs & Stratton 22695

HOUSING, Fasten - On Tab, 6 Pin
(Superseded to 22695GS)

$6.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 86292

SCREW, Self Drill, #10-16 x 3/4"
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0
