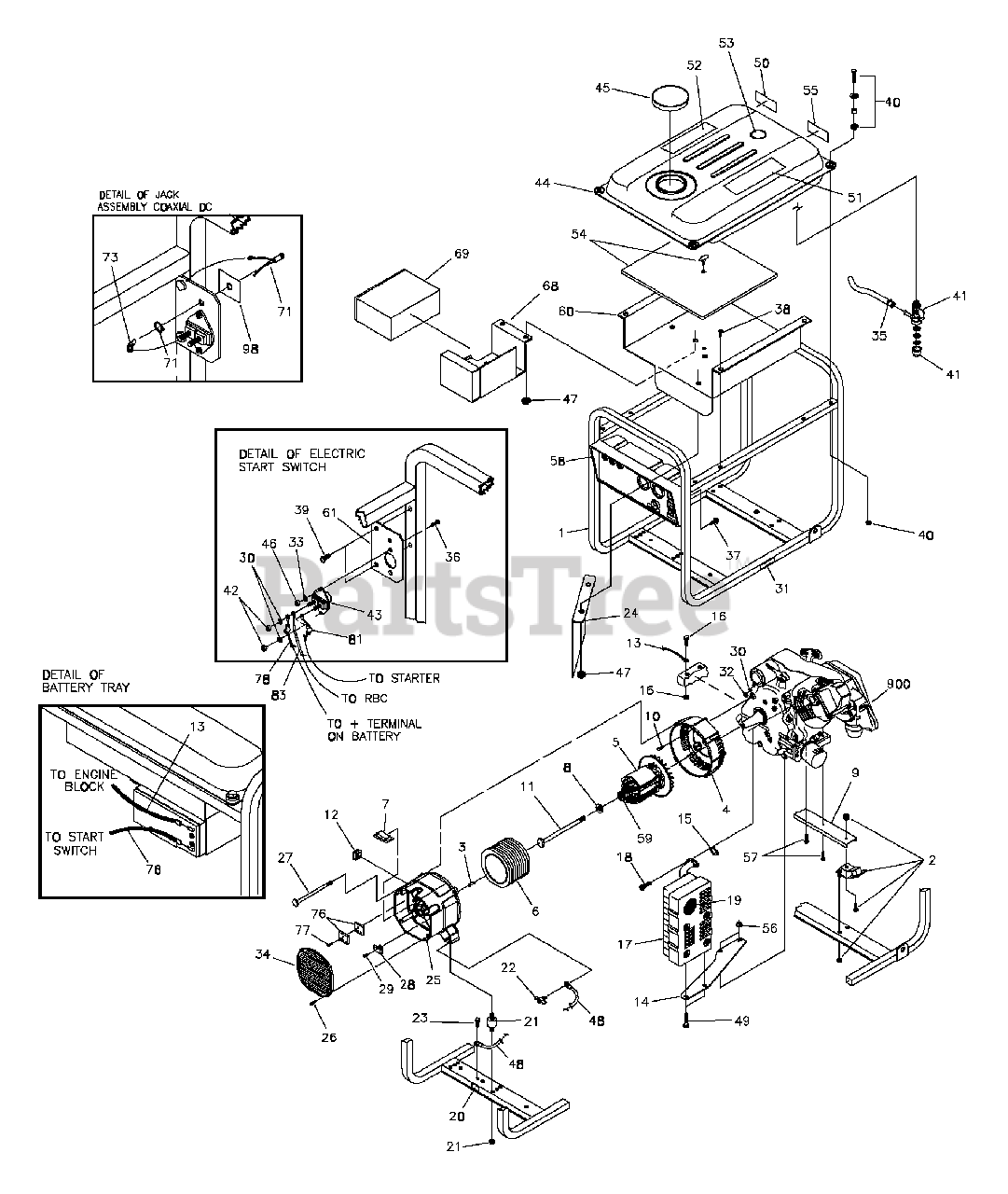

1645-0 - Generac EXL 4,000 Watt Portable Generator Main Unit Parts Diagram

EXL 4,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M197027GS

CRADLE

$362.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194552GS

KIT, Mount, Vibration 45°

$15.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 81917GS

PIN, Roll M4 x 10

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66365GS

HOUSING, Engine Adapter

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84141JGS

ASSY, Rotor w/ Bearing

$278.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 187105AGS

ASSY, Stator

$

$

Not available

7

Briggs & Stratton 84132GS

ASSY, Drive Module Pwr Reg.

$126.99

$

In Stock, only 3 left!

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton M84021GS

SUPPORT, Engine

$20.99

$

Usually ships in 2-12 days

0

10

HHCS, 5/16-24 x 3/4 Lg.

Note: (Purchase Locally)

$

$

Not available

11

Briggs & Stratton 47480GS

HHCS, 5/16-24 x 7" Lg.

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 185931HGS

ASSY, Wire, #55, Black

$8.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 83208GS

BRACKET, Muffler

$21.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 89476GS

GASKET, Exhaust

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 194530GS

KIT, Vibration Mount

$13.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 83071GS

MUFFLER

$

$

Not available

18

SHCS, M8 1.25 x 20 Lg.

Note: (Purchase Locally)

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Mount,Vibration

$11.99

$

In Stock, Qty 17

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10-16 x 3/4" Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 192986GS

SHIELD, Heat

$7.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton SRV66825DGS

CARRIER, Rear Bearing

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10 Lg.

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 86308GS

BOLT, M6 - 1.0 x 115

$3.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 66386GS

ASSY, Brush Holder

$23.99

$

In Stock, only 4 left!

0

29

Briggs & Stratton 66849GS

TAPTITE, M5 0.8 x 16 Lg.

$4.99

$

In Stock, only 1 left!

0

30

WASHER, 1/4 Lock

Note: (Purchase Locally)

$

$

Not available

31

Briggs & Stratton 196830GS

DECAL, Caution Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

32

NUT, M6 - 1.0

Note: (Purchase Locally)

$

$

Not available

33

WASHER, M8 Lock

Note: (Purchase Locally)

$

$

Not available

34

Briggs & Stratton B4871GS

COVER, Bearing Carrier

$9.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 189568GS

CLAMP, Hose

$5.49

$

Usually ships in 2-12 days

0

36

HHCS, 1/4-20 x 3/4

Note: (Purchase Locally)

$

$

Not available

37

Briggs & Stratton B2153GS

SCREW, 12-14 x 7/8, Self Driller

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton B1797GS

CLIP, Tree

$3.99

$

In Stock, Qty 8

0

39

Briggs & Stratton 195094GS

SCREW, 10 - 16 Self Drill

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 193661GS

KIT, Hardware Fuel Tank

Note: (Includes Qty of 4)

$

$

Not available

41

Briggs & Stratton 189133GS

VALVE, Tank
(Superseded to 310573GS)

$11.99

$

In Stock, Qty 18

0

42

NUT, 1/4 - 20

Note: (Purchase Locally)

$

$

Not available

43

Briggs & Stratton 77282GS

SWITCH, Starter

$76.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 193680GS

ASSY, Fuel Tank

Note: (Includes Items 41, 50, 51, 52, 53 & 55)

$

$

Not available

45

Briggs & Stratton 189135GS

CAP, Fuel

$20.99

$

In Stock, only 1 left!

0

46

NUT, 5/16 - 24

Note: (Purchase Locally)

$

$

Not available

47

Briggs & Stratton 77395GS

NUT, M6 Flange Lock

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

49

HHCS, M6 - 1.0 x 12

Note: (Purchase Locally)

$

$

Not available

50

Briggs & Stratton 78549GS

DECAL, Electric Start

$3.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 93826GS

DECAL, Starting Instructions

$14.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 189136GS

GAUGE, Fuel

$18.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194527GS

KIT, Insulation w/ Clip

$37.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Fuel Shut Off

$9.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 20+

0

57

Briggs & Stratton 195398GS

TPHMS, M8 - 1.25 x 35

$2.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 87116GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

59

Briggs & Stratton 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton J189130GS

SHIELD, Heat

$94.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 188987GS

BRACKET, Switch

$10.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 192988GS

TRAY, Battery

$55.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 187079GS

BATTERY, 12V, 10A

$

$

Not available

71

Briggs & Stratton 192531GS

ASSY, Jack, DC

$10.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 58359GS

LUG, 5/16 #22/18 I-S

$3.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

77

Briggs & Stratton 66849CGS

TAPTITE, M5 0.8 x 30 Lg.

$4.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 185931GGS

ASSY, Wire, #13,Red

$11.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 189302BGS

ASSY, Wire, #16,Red

$17.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 189740GS

HARNESS, Wire, Starter

$25.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 189198GS

DECAL, Instructions, ES

$8.99

$

In Stock, only 1 left!

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton A8926GS

MANUAL, Engine

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Parts Not Illustrated

$3.49

$

In Stock, Qty 20+

0

Briggs & Stratton 65787GS

CABLE, Battery Charge

Note: Parts Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: Parts Not Illustrated

$38.99

$

In Stock, only 1 left!

0

Briggs & Stratton 100523GS

PLUG, 125V, 30A

Note: Parts Not Illustrated

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483GS

PLUG, 250V, 20A
(Superseded to 100522GS)

Note: Parts Not Illustrated

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Parts Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 189189GS

MANUAL, Operator's

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton D1456GS

MANUAL, Engine Parts

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 189759GS

KIT, Fuel Valve Repair
(Superseded to 310574GS)

Note: Parts Not Illustrated

$10.99

$

In Stock, Qty 5

0

Briggs & Stratton 193678GS

KIT, Decals

Note: Parts Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 84883GS

Cord Wrap

Note: Optional Accessories Not Included

$29.99

$

Usually ships in 2-12 days

0
