1646-4 - Generac Wheelhouse 5,550 Watt Portable Generator Main Unit Parts Diagram

Wheelhouse 5,550 Watt Portable Generator

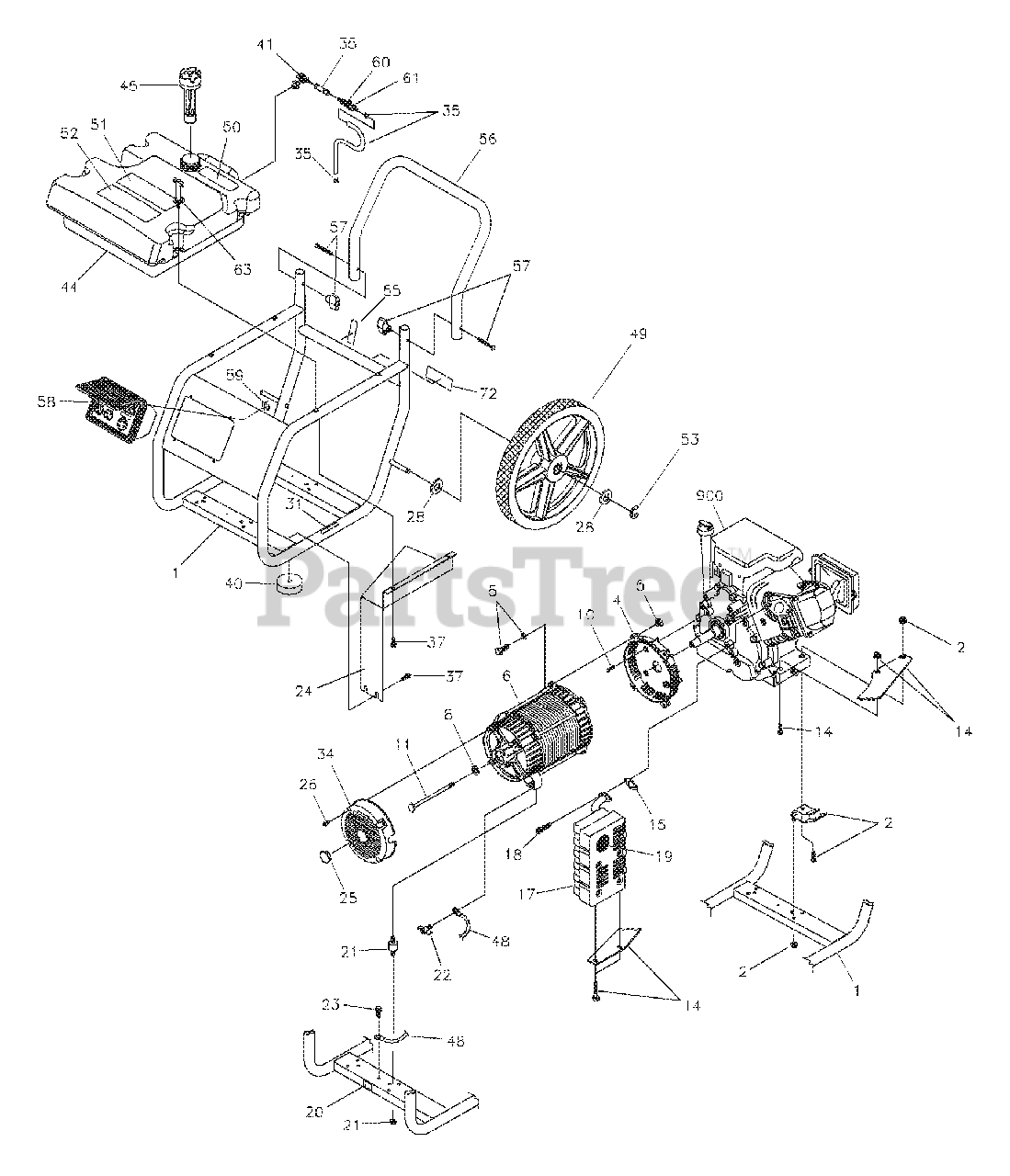

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M194879GS

FRAME
(Superseded to M197129GS)

$

$

Not available

2

Briggs & Stratton 194150GS

KIT,Vibration Mount 45°.

$13.99

$

In Stock, Qty 7

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 194151GS

KIT, Hrdwr Mounting Adptr

$22.99

$

Usually ships in 2-12 days

0

6

NSP

ASSY,Alternator

Note: (see "Alternator")

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SBHCS, 3/8-16 x 1.0 Lg.

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

HHCS, 5/16-24 x 7.44

$17.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 194729GS

KIT, Muffler Brkt w/ Hardware

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 6

0

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

SHCS, 5/16 - 18 x 3/4"

Note: (Purchase Locally)

$

$

Not available

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT,Vibration Mount

$11.99

$

In Stock, Qty 17

0

22

Briggs & Stratton 86494GS

SCREW,Wing, M6 1 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10-16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 192793GS

SHIELD, Heat

$94.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

SCREW, M5-0.8 x 10 Taptite

$2.99

$

Usually ships in 2-12 days

0

28

WASHER, Flat 1/2

Note: (Purchase Locally)

$

$

Not available

31

Briggs & Stratton 196830GS

DECAL, Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 194432GS

KIT, Hose Fuel w/ Clamps
(Superseded to 499742)

$77.99

$

In Stock, Qty 16

0

34

Briggs & Stratton 195422GS

COVER, Bearing Carrier

$13.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 192376GS

SCREW, 12 - 24 x 1/2 THD Forming

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 192553GS

KIT,Vibe Mount

$16.99

$

In Stock, Qty 8

0

41

Briggs & Stratton 192980GS

KIT,Valve Tank

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 196181GS

ASSY,Tank, Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton 189420GS

CAP, Fuel Gauge

$47.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 193548GS

KIT,Wheel

Note: (includes Item 53)

$

$

Not available

50

Briggs & Stratton 188333GS

DECAL, Fuel Tank

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 192050GS

KIT, E-Ring, 1/2"
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

55

Briggs & Stratton 73054GS

DECAL, Shut-Off, Fuel

$8.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton M194907GS

HANDLE

$136.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 189456GS

KIT, Handle Fastening

$24.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 190355GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

59

NUT, Palnut 3/16"

Note: (Purchase Locally)

$

$

Not available

60

Briggs & Stratton 189117GS

QUICK CONNECT, Fuel, 1/4 Barb

$41.99

$

In Stock, only 4 left!

0

61

Briggs & Stratton 192695GS

QUICK CONNECT, Fuel, 1/4 Barb

$38.99

$

In Stock, Qty 6

0

63

Briggs & Stratton 189114GS

KNOB, Fuel Tank Hold Down

$

$

Not available

72

Briggs & Stratton 192480GS

DECAL,Warning, Fuel Line Disconnect

$14.99

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 43438GS

PLUG, 250V, 30A

Note: Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS5242

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 191911GS

MANUAL, Owners

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 189208GS

STABILIZER, Fuel

Note: Not Illustrated

$4.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 193821GS

KIT, Decal, Service

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0
