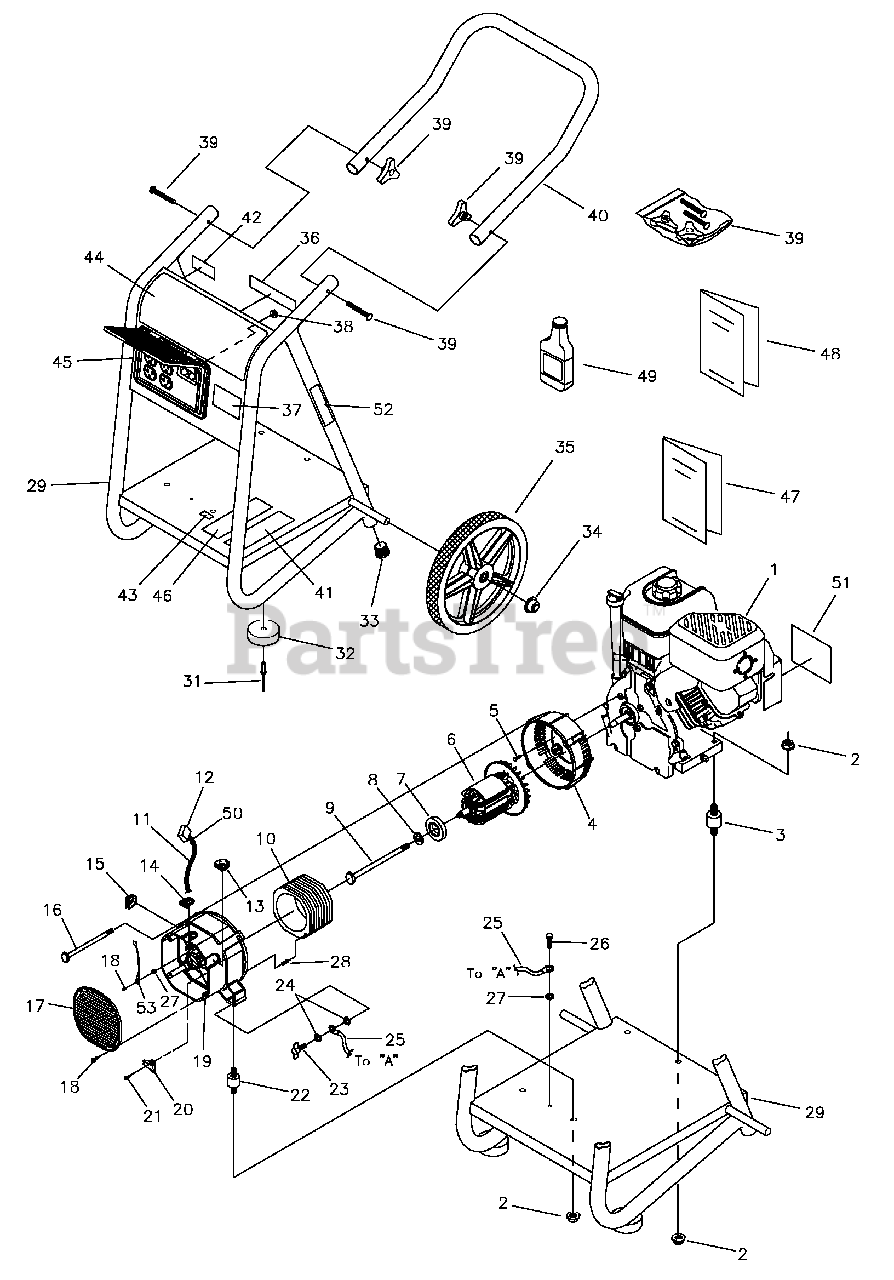

1649-0 - PowerBoss 3,250 Watt Portable Generator Main Unit Parts Diagram

3,250 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

NSP

ENGINE

$

$

Not available

2

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 20+

0

3

Briggs & Stratton 85651GS

MOUNT,Vibration

$24.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66365GS

HOUSING, Engine Adapter

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 86307GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 188075GS

ASSY, Rotor

Note: (Includes Item 7)

$223.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 24421GS

SCREW

$18.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 189381AGS

ASSY, Stator

$

$

Not available

11

Briggs & Stratton 84409GS

SLEEVING

$4.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22695GS

FASTEN, On Tab Housing 6P

$6.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84242GS

GROMMET, Plastic

$4.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 189127GS

GROMMET, Rubber

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 86308GS

BOLT

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B4871GS

COVER, Bearing Carrier

$9.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 74908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton SRV66825DGS

CARRIER, Rear Bearing

$137.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 91825GS

ASSY, Brush Holder

$54.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 66849GS

SCREW

$4.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 85652GS

MOUNT,Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 17

0

23

Briggs & Stratton 86494GS

SCREW,Wing

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 26850GS

WASHER

$2.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 86292GS

SCREW
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 81917GS

PIN, Roll

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B189309GS

BASE

$

$

Not available

31

Briggs & Stratton 188194GS

RIVET, Blind

$1.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 191413GS

VIBE MOUNT, with Washer

$6.49

$

In Stock, Qty 7

0

33

Briggs & Stratton 189332GS

CAPLUG

$3.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 190146GS

PUSHNUT

$9.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 191908GS

WHEEL
(Superseded to 193548GS)

$

$

Not available

36

Briggs & Stratton 189340GS

DECAL, Start Instructions
(Superseded to 189467GS)

$22.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 189364GS

DECAL, Logo
(Superseded to 189467GS)

$22.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 189164GS

NUT

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B2203GS

KIT, Handle Hardware

$5.49

$

In Stock, only 2 left!

0

40

Briggs & Stratton B189231GS

HANDLE

$76.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 189235GS

DECAL, Operating Instructions

$19.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 20566GS

DECAL, 1-800

$1.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

44

Briggs & Stratton 189341GS

DECAL, Control Panel
(Superseded to 189467GS)

$22.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 189158GS

ASSY, Control Panel

Note: (see "Control Panel")

$114.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

47

Briggs & Stratton 275092

MANUAL, Engine

$

$

Not available

48

Briggs & Stratton 189351GS

MANUAL, Owners

$16.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton BB3061BGS

BOTTLE, Oil
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

50

Briggs & Stratton 28739AGS

WRAP,Tie

$1.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 189342GS

DECAL,Air Cleaner
(Superseded to 189467GS)

$22.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 77816GS

DECAL, Muffler,Warning

$4.99

$

Usually ships in 2-12 days

0

53

UNKNOWN

$

$

Not available
