165 BT - Husqvarna Backpack Blower (2001-06) Blower Housing / Tubes Parts Diagram

Backpack Blower

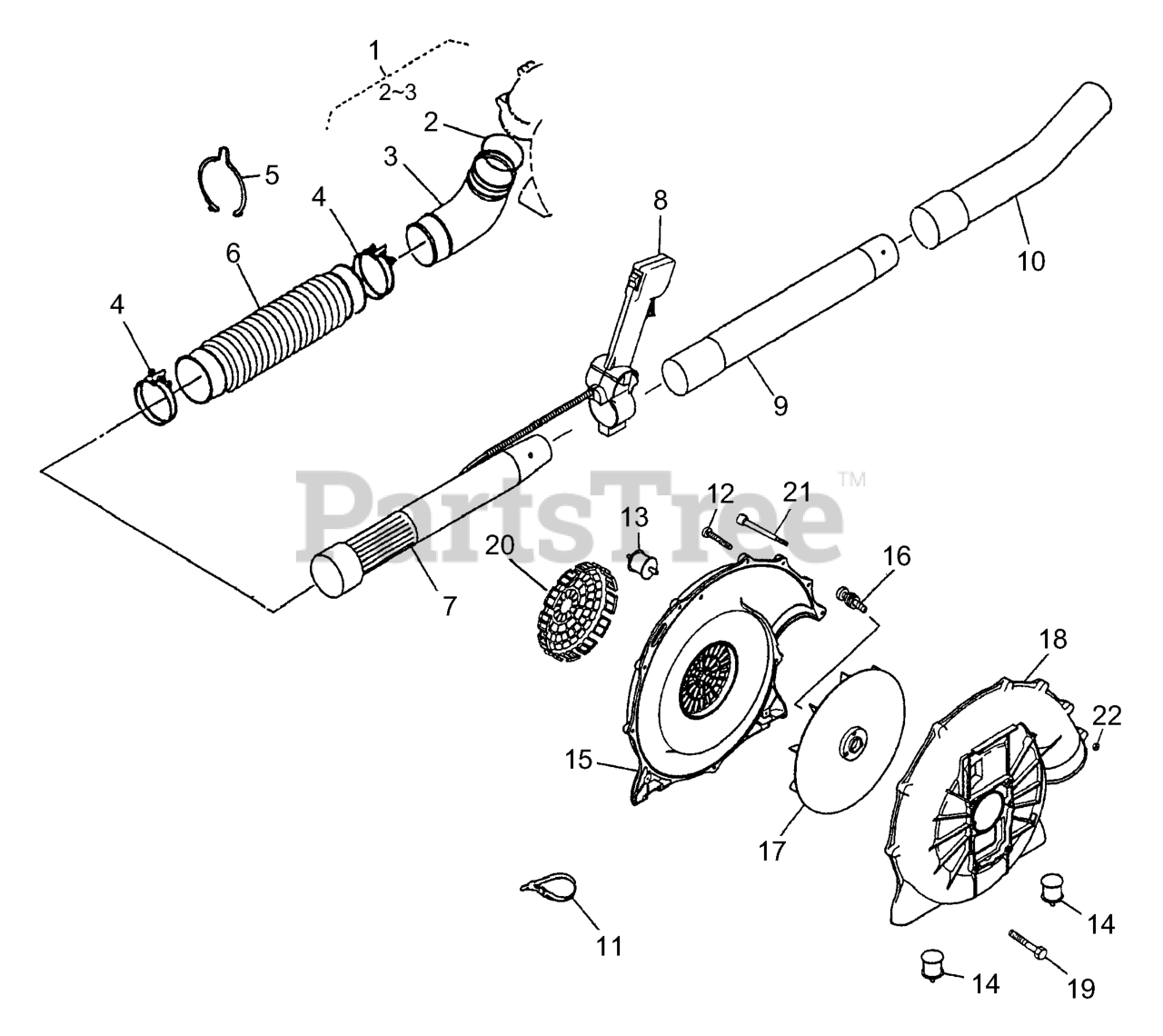

Blower Housing / Tubes Parts Diagram

  • Title

1

Husqvarna 695000799

ELBOW PIPE C.P.

Note: Compl.

$

$

Not available

2

Husqvarna 695000005

O'RING
(Superseded to 531003215)

$

$

Not available

3

Husqvarna 695000800

ELBOW PIPE
(Superseded to 531003732)

$

$

Not available

4

Husqvarna 695000801

HOSE BAND
(Superseded to 531003733)

$

$

Not available

5

Husqvarna 695000802

WIRE CLAMP
(Superseded to 531003734)

$

$

Not available

6

Husqvarna 695000803

FLEX. PIPE
(Superseded to 531003735)

$

$

Not available

7

Husqvarna 695000804

BASE PIPE
(Superseded to 531003736)

$

$

Not available

8

Husqvarna 695000805

THROTTLE LEVER ASSY
(Superseded to 695000820)

$

$

Not available

9

Husqvarna 695000806

MIDDLE PIPE
(Superseded to 531003738)

$

$

Not available

10

Husqvarna 695000807

BEND PIPE
(Superseded to 531003739)

$

$

Not available

11

Husqvarna 695000110

BAND FR66820XX006
(Superseded to 531003249)

$1.49

$

Usually ships in 3-10 days

0

12

Husqvarna 695000633

SCREW
(Superseded to 531003727)

$

$

Not available

13

Husqvarna 695000634

ANTIVIBE MOUNT
(Superseded to 531003686)

$

$

Not available

14

Husqvarna 695000635

ANTIVIBE MOUNT
(Superseded to 531003687)

$

$

Not available

15

Husqvarna 695000809

Fan Case

$

$

Not available

16

Husqvarna 695000637

BOLT
(Superseded to 531003679)

$

$

Not available

17

Husqvarna 695000810

Fan

$

$

Not available

18

Husqvarna 695000811

Fan Case

$

$

Not available

19

Husqvarna 695000640

BOLT
(Superseded to 531003248)

$

$

Not available

20

Husqvarna 695000812

FAN COVER
(Superseded to 531004497)

$

$

Not available

21

Husqvarna 695000813

SOCKET SCREW
(Superseded to 531003743)

$

$

Not available

22

Husqvarna 695000040

NUT
(Superseded to 732251401)

$2.49

$

Usually ships in 3-10 days

0
