165-SUC - Cub Cadet Engine 165-SUC Fuel Tank & Mounting Parts Diagram

Engine

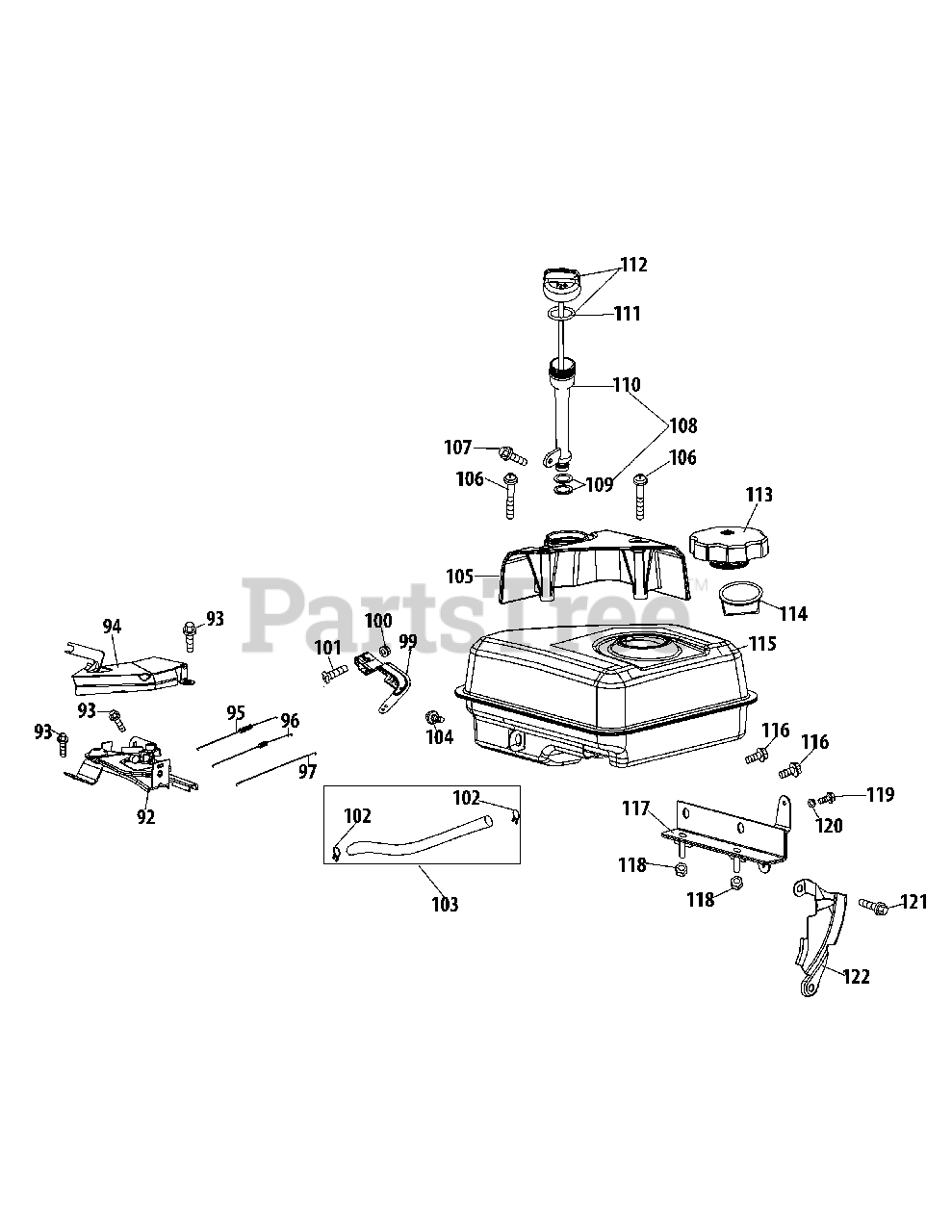

165-SUC Fuel Tank & Mounting Parts Diagram

  • Title

92

Cub Cadet 951-10758

Throttle Control Bracket

$21.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 710-05103

Bolt M6×12

$3.99

$

In Stock, only 2 left!

0

94

Cub Cadet 951-11108

Governor Shield

$4.49

$

Usually ships in 3-6 days

0

95

Cub Cadet 951-11935

Governor Spring

$7.49

$

In Stock, only 1 left!

0

96

Cub Cadet 951-10664

Throttle Return Spring
(Superseded to 751P10664A)

$2.49

$

In Stock, Qty 10

0

97

Cub Cadet 951-10665

Governor Rod
(Superseded to 751P10665A)

$1.99

$

In Stock, only 3 left!

0

99

Cub Cadet 951-11106

Governor Arm Bracket

$7.49

$

Usually ships in 3-6 days

0

100

Cub Cadet 712-04212

Flange Nut M6
(Superseded to 712-05015)

$6.49

$

In Stock, only 4 left!

0

101

Cub Cadet 710-04908

Governor Arm Bolt M6X21

$5.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 951-11700

Hose Clamp
(Superseded to 951-11700A)

$3.99

$

In Stock, only 3 left!

0

103

Cub Cadet 951-10650

Fuel Line Kit

$26.99

$

In Stock, Qty 8

0

104

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 8

0

105

Cub Cadet 951-11914

Engine Dipstick Cover

$13.99

$

In Stock, only 1 left!

0

106

Cub Cadet 710-04905

Engine Cover / Dipstick Bolt

$4.49

$

Usually ships in 3-6 days

0

107

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 8

0

108

Cub Cadet 951-11913

Oil Fill Tube Assembly

$15.99

$

In Stock, only 1 left!

0

109

Cub Cadet 951-11381

Fill Tube O-Ring

$4.99

$

Usually ships in 3-6 days

0

110

Cub Cadet 951-10656

Dipstick Tube
(Superseded to 631-05020AP)

$32.99

$

In Stock, only 2 left!

0

111

Cub Cadet 951-11904

Dipstick O-Ring

$3.99

$

In Stock, only 1 left!

0

112

Cub Cadet 951-12482

Dipstick Assembly

$14.99

$

Usually ships in 3-6 days

0

113

Cub Cadet 951-12533

Fuel Cap

$22.99

$

In Stock, Qty 7

0

114

Cub Cadet 951-11933

Fuel Level Indicator

$8.99

$

In Stock, only 1 left!

0

115

Cub Cadet 951-10653B

Fuel Tank

$74.99

$

In Stock, only 2 left!

0

116

Cub Cadet 710-04914

Bolt:Flange M6X20

$3.99

$

In Stock, only 3 left!

0

117

Cub Cadet 951-11114

Switch Housing Mounting Bracket

$16.99

$

Usually ships in 3-6 days

0

118

Cub Cadet 712-05015

Nut, M6

$6.49

$

In Stock, only 4 left!

0

119

Cub Cadet 710-05268

Screw M4×10

$2.49

$

Usually ships in 3-6 days

0

120

Cub Cadet 736-04526

Washer

$3.99

$

In Stock, only 1 left!

0

121

Cub Cadet 710-04915

Bolt M6×20

$4.49

$

In Stock, Qty 8

0

122

Cub Cadet 751-14138

Blower Housing Shield
(Superseded to 951-14138A)

$4.99

$

Usually ships in 3-6 days

0
