1650 (80424) - Snapper Garden Tractor, 16hp Implement (Mule) Drive Parts Diagram

Garden Tractor, 16hp

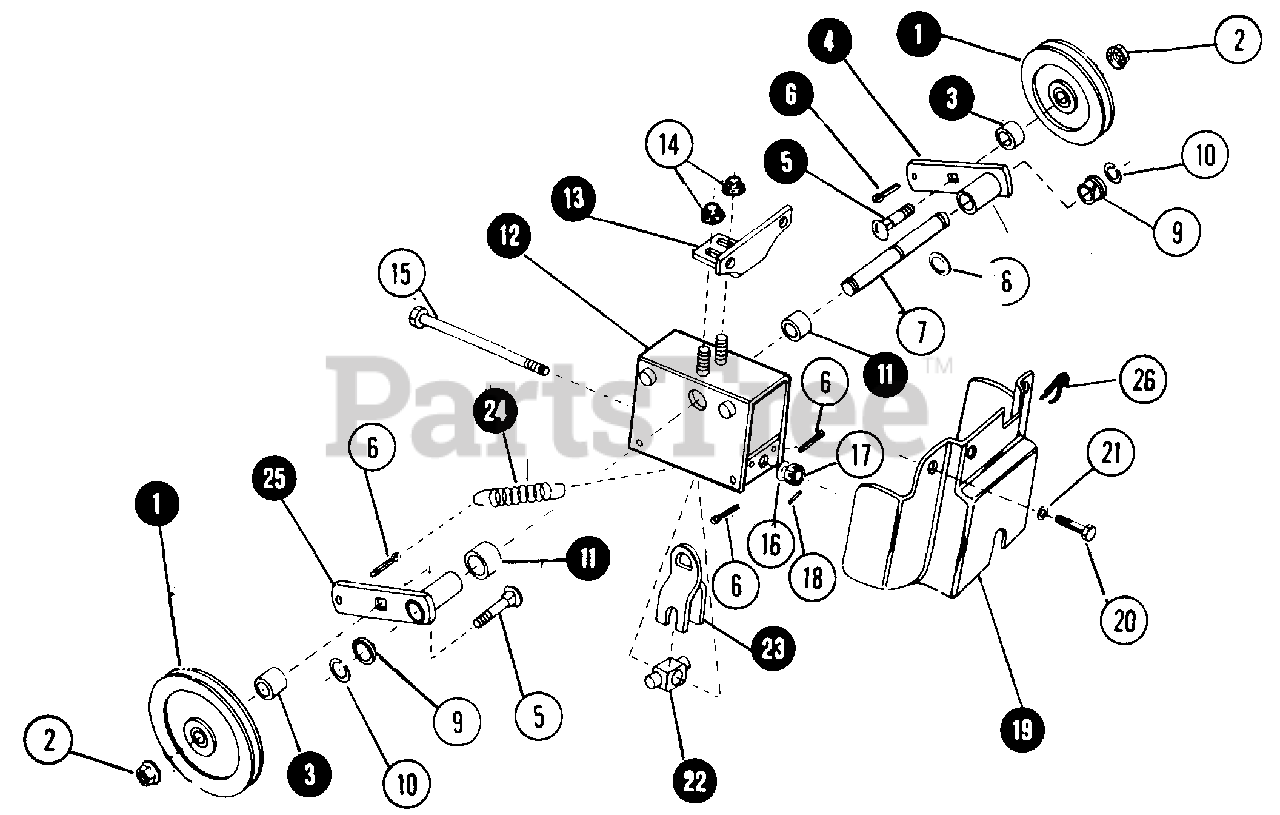

Implement (Mule) Drive Parts Diagram

  • Title

Snapper 7060458

IMPLEMENT (MULE) DRIVE KIT

Note: (ACCESSORY)

$

$

Currently unavailable

1

Snapper 7018274

PULLEY, IDLER

$

$

Not available

2

Snapper 7090619

NUT, 1/2C FLANGE LOCK
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7027506

SPACER, PULLEY

$

$

Not available

4

Snapper 7047741

ARM, IDLER PULLEY LEFT SIDE
(Superseded to 7047741YP)

$80.99

$

Usually ships in 2-12 days

0

5

Snapper 7090618

BOLT, 1/2C x 2 CARRIAGE

$

$

Currently unavailable

6

Snapper 7090616

COTTER-PIN, 1/4 x 3/4

$

$

Not available

7

Snapper 7027508

SHAFT, PULLEY RETAINER
(Superseded to 7027508YP)

$27.99

$

Usually ships in 2-12 days

0

?8

Snapper 7018272

WASHER, 17/32 x 7/8 x 5/64

$

$

Not available

9

Snapper 7012695

SHIM, .009-.011"
(Superseded to 7012695YP)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7012696

RING, SHAFT RETAINER

$

$

Currently unavailable

11

Snapper 7027504

SPACER, IDLER ARM PULLEY
(Superseded to 7027504YP)

$8.49

$

Usually ships in 2-12 days

0

12

Snapper 7049823

FRAME, IMPLEMENT DRIVE

$

$

Currently unavailable

13

Snapper 39624

BRACKET, MOUNTING

$

$

Currently unavailable

14

Snapper 7091619

NUT, 3/8C FLANGE LOCK
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 9

0

15

Snapper 27503

BOLT, 3/8C HEX DRILLED

$

$

Currently unavailable

16

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7090617

NUT, 3/8C HEX SLOTTED

$

$

Not available

18

Snapper 7012694

PIN, SPIROL 3/32 x 9/16
(Superseded to 7012694YP)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7019532

COVER, IMPLEMENT DRIVE
(Superseded to 7019532YP)

$83.99

$

Usually ships in 2-12 days

0

20

Snapper 7090581

BOLT, 5/16C x 7/8 HEX

$

$

Not available

21

Snapper 7090188

WASHER, 5/16 FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

22

Snapper 7027507

TRUNNION, PULLEY ADJUSTER

$

$

Not available

23

Snapper 7047742

BRACKET, ADJUSTER
(Superseded to 7047742YP)

$175.99

$

Usually ships in 2-12 days

0

24

Snapper 7018273

SPRING, IDLER PULLEY TENSION
(Superseded to 7018273YP)

$7.99

$

Usually ships in 2-12 days

0

25

Snapper 7047740

ARM, IDLER PULLEY RIGHT SIDE
(Superseded to 7047740YP)

$122.99

$

Usually ships in 2-12 days

0

26

Snapper 7012672

HAIR-PIN CLIP

$

$

Currently unavailable
