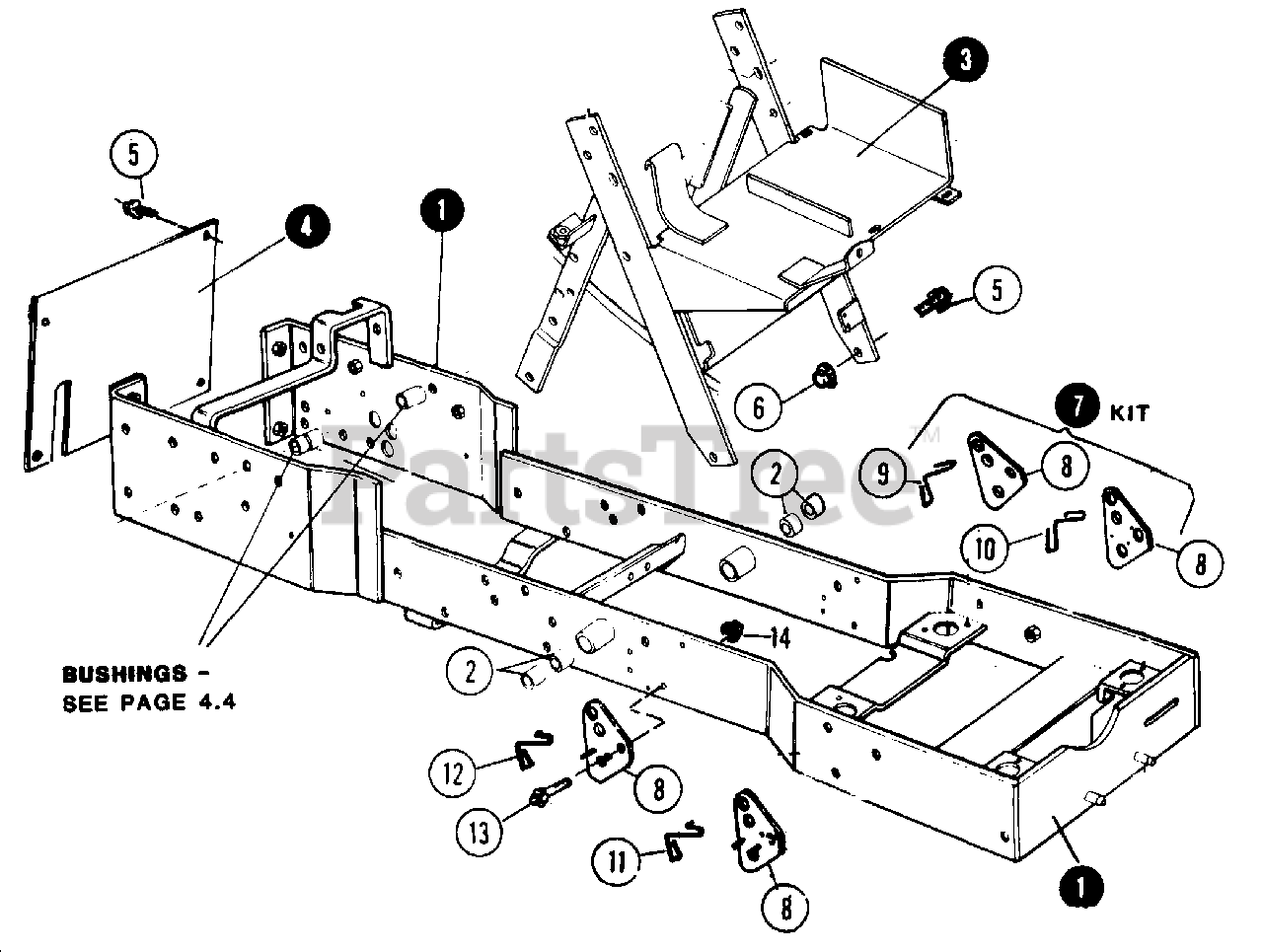

1650 A (80524) - Snapper Garden Tractor, 16hp Frame Parts Diagram

Garden Tractor, 16hp

Frame Parts Diagram

  • Title

1

Snapper 59805

FRAME ASSEMBLY

Note: (INCLUDES 4 OF ITEM 2)

$

$

Currently unavailable

2

Snapper 7012706

BUSHING
(Superseded to 7012706SM)

$10.99

$

In Stock, only 2 left!

0

3

Snapper 49841

PEDESTAL FRAME

$

$

Currently unavailable

4

Snapper 39679

PLATE, REAR COVER

Note: (1650 ONLY - SEE "Rear Power Take-Off" ILLUSTRATION AND PARTS LIST FOR 1650A)

$

$

Currently unavailable

5

Snapper 7027198

BOLT, 3/8C x 1 FLANGE
(Superseded to 704038)

Note: Was 90582

$6.49

$

In Stock, Qty 11

0

6

Snapper 7091619

NUT, 3/8C FLANGE LOCK
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 9

0

7

Snapper 7060448

KIT, IMPLEMENT MOUNTING

Note: (INCLUDES ITEMS 8-14)

$

$

Currently unavailable

8

Snapper 7059554

BRACKET, LINK PIVOT

$

$

Not available

9

Snapper 7019591

SPRING, LEFT REAR
(Superseded to 7019591YP)

$7.99

$

Usually ships in 2-12 days

0

10

Snapper 7019593

SPRING, LEFT FRONT

$

$

Not available

11

Snapper 7019590

SPRING, RIGHT FRONT
(Superseded to 7019590YP)

$7.49

$

Usually ships in 2-12 days

0

12

Snapper 7019592

SPRING, RIGHT REAR
(Superseded to 7019592YP)

$8.99

$

Usually ships in 2-12 days

0

13

Snapper 7090661

BOLT, 5/16-18 x 1 HEX FLANGE LOCK

$

$

Not available

14

Snapper 7091601

NUT, 5/16-18 HEX LOCK
(Superseded to 703409)

Note: Was 90585

$5.99

$

In Stock, Qty 20+

0
