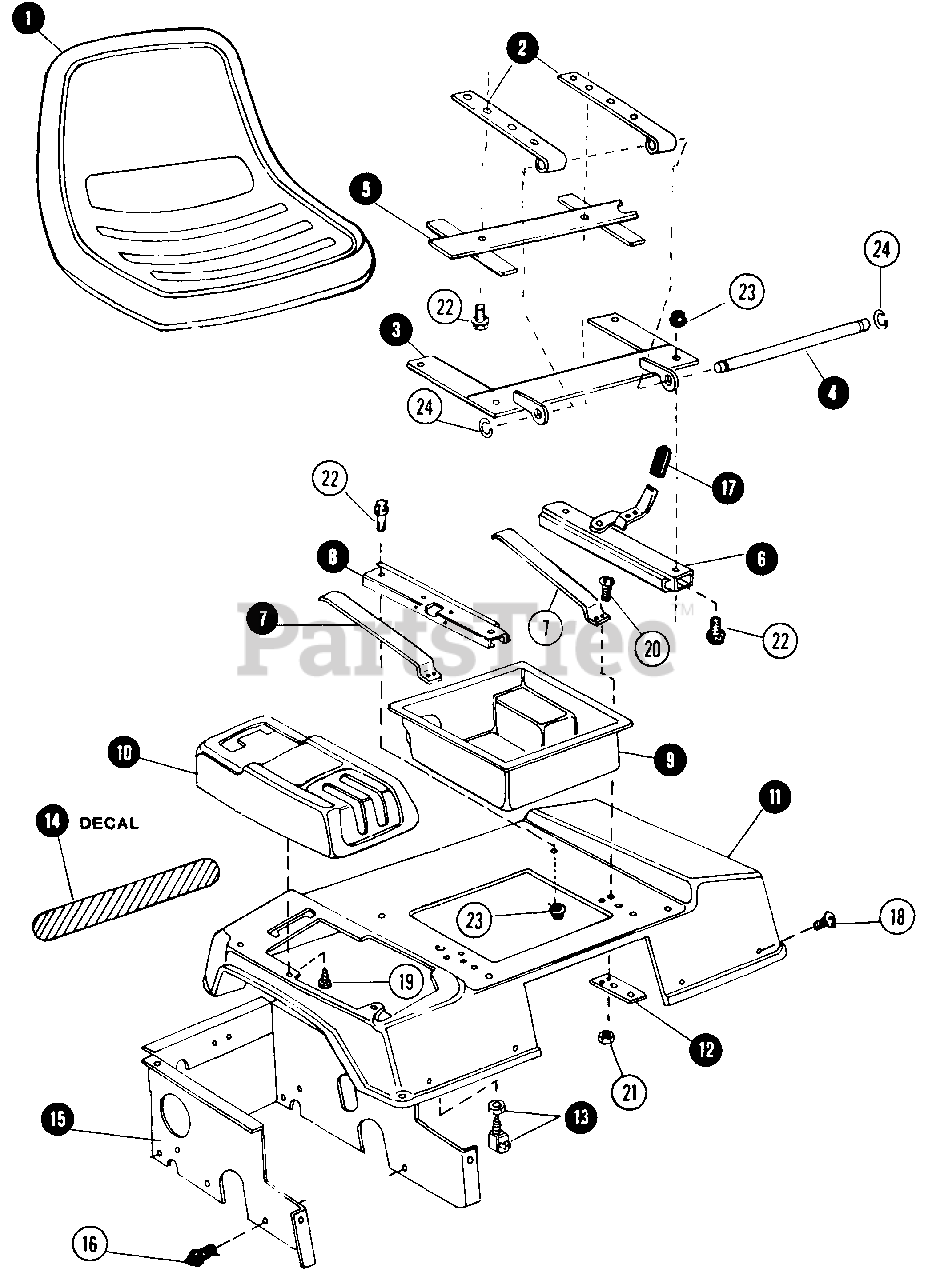

1650 A (80524) - Snapper Garden Tractor, 16hp Seat, Rear Fender Parts Diagram

Garden Tractor, 16hp

Seat, Rear Fender Parts Diagram

  • Title

1

Snapper 7028595

SEAT, OPERATOR'S
(Superseded to 7028650YP)

Note: Was 19839

$277.99

$

Usually ships in 2-12 days

0

2

Snapper 39651

STRAP, SEAT HINGE

$

$

Currently unavailable

3

Snapper 49827

HINGE, SEAT - ASSEMBLY

$

$

Currently unavailable

4

Snapper 27524

PIN, SEAT PIVOT

$

$

Currently unavailable

5

Snapper 49591

BAR, DEFLECTOR - ASSEMBLY

$

$

Currently unavailable

6

Snapper 59540

RAIL SEAT - ASSEMBLY

$

$

Currently unavailable

7

Snapper 37769

SPRING, SEAT

$

$

Currently unavailable

8

Snapper 19556

RAIL, SEAT - ASSEMBLY

$

$

Currently unavailable

9

Snapper 7019824

COMPARTMENT

$

$

Not available

10

Snapper 7019885

COVER, REAR FENDER

Note: (WITH REAR P.T.O. CUTOUT)

$

$

Currently unavailable

Snapper 19887

COVER, REAR FENDER

Note: (WITHOUT REAR P.T.O. CUTOUT)

$

$

Currently unavailable

11

Snapper 39830

FENDER REAR

$

$

Currently unavailable

12

Snapper 32022

PLATE, SEAT RETAINER

$

$

Currently unavailable

13

Snapper 7012668

SWITCH, SEAT INTERLOCK
(Superseded to 7012668YP)

Note: (INCLUDES NUTS)

$35.99

$

Usually ships in 2-12 days

0

14

Snapper 7019668

DECAL, SNAPPER
(Superseded to 7019668YP)

Note: (REAR FENDERS)

$6.49

$

Usually ships in 2-12 days

0

15

Snapper 39833

RISER, REAR FENDER

$

$

Currently unavailable

16

Snapper 7090620

BOLT, 3/8C x 7/8 HEX FLANGE LOCK

$

$

Not available

17

Snapper 12731

CAP, SEAT LATCH

$

$

Currently unavailable

18

Snapper 7090316

SCREW, 5/16C x 5/8 ROUND HEAD
(Superseded to 703225)

Note: Was 90605

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7091819

SCREW, 1/4C x 5/8 SELF-TAPPING
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 11

0

20

Snapper 90597

SCREW, 10-24 x 5/8 ROUND HEAD SLOTTED

$

$

Currently unavailable

21

Snapper 7090594

NUT, #10-24 HEX LOCK - NYLON
(Superseded to 7090594YP)

$2.99

$

Usually ships in 2-12 days

0

22

Snapper 7090606

BOLT, 5/16C x 5/8 HEX FLANGE LOCK
(Superseded to 703823)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 7091601

NUT, 5/16C HEX FLANGE
(Superseded to 703409)

Note: Was 90585

$5.99

$

In Stock, Qty 20+

0

24

Snapper 7012703

RING, RETAINING

$

$

Not available
