1651030 - Simplicity 30" Mower Deck Mower Control Group (2948I01) Parts Diagram

30" Mower Deck

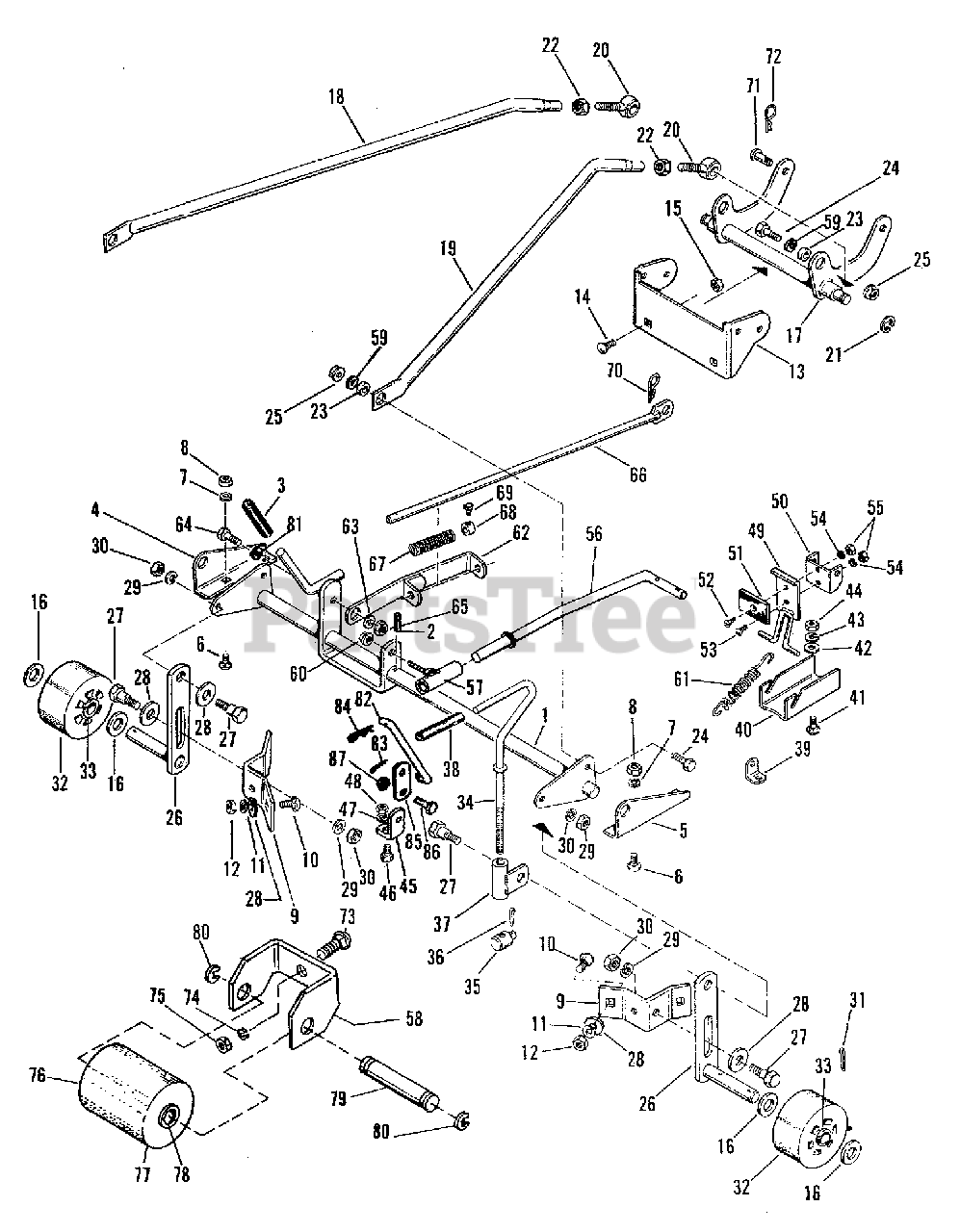

Mower Control Group (2948I01) Parts Diagram

  • Title

1

Simplicity 175943

CONTROL ARM ASSEMBLY

$

$

Not available

2

Simplicity 2818111

PIN, Roll, 1/8 x 1

$

$

Not available

3

Simplicity 2161105

GRIP, Handle

$

$

Not available

4

Simplicity 176769

BRACKET, L.H., Pivot

$

$

Not available

5

Simplicity 176770

BRACKET, R.H., Pivot

$

$

Not available

6

Simplicity 930685

BOLT, Carriage, 5/16-18 x 5/8 Lg.

$

$

Not available

7

Simplicity 9173356

LOCKWASHER, 5/16

$

$

Not available

8

Simplicity 1917372SM

NUT, Full Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1602211

SUPPORT, Roller Brake

$

$

Not available

10

Simplicity 930658

BOLT, Carriage

$

$

Not available

11

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917372SM

NUT, Full Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1608940

BRACKET, Forward Mower

$

$

Not available

14

Simplicity 2830591

SCREW, Whiz Lock, 5/16-18 x 3/4

$

$

Not available

15

Simplicity 2827557

NUT, Flange, 5/16-18

$

$

Not available

16

Simplicity 2177351

WASHER

$

$

Not available

17

Simplicity 175935

ROCKER ARM ASSEMBLY

$

$

Not available

18

Simplicity 175942

ARM, L.H. Adjusting

$

$

Not available

19

Simplicity 176736

ARM, R.H., Adjusting

$

$

Not available

20

Simplicity 2157215SM

EYEBOLT

$

$

Not available

21

Simplicity 2158399SM

RING, Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 2819262

NUT, Hex Jam, 1/2-20

$

$

Not available

23

Simplicity 2153081

SPACER

$

$

Not available

24

Simplicity 821210

CAPSCREW, Hex, 3/8-16 x 1 Lg.

$

$

Not available

25

Simplicity 2823428

LOCKNUT, 3/8-16

$

$

Not available

26

Simplicity 1607603

ROLLER SUPPORT ASSEMBLY

$

$

Not available

27

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

28

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

29

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

30

Simplicity 2816950SM

NUT, Full Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

31

Simplicity 2818458

PIN, Cotter, 3/16 x 1

$

$

Not available

32

Simplicity 1668487SM

ROLLER ASSEMBLY

$9.99

$

In Stock, Qty 20+

0

33

Simplicity 2108419

BUSHING

$

$

Not available

34

Simplicity 176775

HANDLE

$

$

Not available

35

Simplicity 108172

PIVOT

$

$

Not available

36

Simplicity 2818448

PIN, Cotter, 3/32 x 1

$

$

Not available

37

Simplicity 176777

ROD GUIDE ASSEMBLY

$

$

Not available

38

Simplicity 176985

GRIP

$

$

Not available

39

Simplicity 1602446

ANCHOR, Spring

$

$

Not available

40

Simplicity 1607989

BRACKET, Pivot

$

$

Not available

41

Simplicity 2821158

BOLT, Carriage

$

$

Not available

42

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

43

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

44

Simplicity 1917372SM

NUT, Full Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

45

Simplicity 1650140

BRACKET

$

$

Not available

46

Simplicity 2819318

CAPSCREW, Hex, 5/16-18 x 5/8 Lg.

$

$

Not available

47

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

48

Simplicity 1917372SM

NUT, Full Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

49

Simplicity 176783

BRAKE SUPPORT ASSEMBLY

$

$

Not available

50

Simplicity 176785

ANCHOR, Brake Rod

$

$

Not available

51

Simplicity 1610590SM

SHEAVE, Brake

$48.99

$

Usually ships in 2-12 days

0

52

Simplicity 2826267SM

SCREW, Flat Head, Machine No. 10-24 x 5/8 Lg.

$2.99

$

Usually ships in 2-12 days

0

53

Simplicity 916080

SCREW, Flat Head, Machine No. 10-24 x 1/2 Lg.

$

$

Not available

54

Simplicity 1917356SM

LOCKWASHER, No. 10
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

55

Simplicity 2816621

NUT, Hex, No 10-24

$

$

Not available

56

Simplicity 178547

ROD, Brake

$

$

Not available

57

Simplicity 178548

ROD GUIDE ASSEMBLY

$

$

Not available

58

Simplicity 1603204

BRACKET, Control Roller

$

$

Not available

59

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

60

Simplicity 2823428

LOCKNUT, 3/8-16

$

$

Not available

61

Simplicity 1602894

SPRING

$

$

Not available

62

Simplicity 176743

ROD GUIDE ASSEMBLY

$

$

Not available

63

Simplicity 2153081

SPACER

$

$

Not available

64

Simplicity 2807731

CAPSCREW, Hex, 3/8-16 x 1 Lg.

$

$

Not available

65

Simplicity 2823428

LOCKNUT, 3/8-16

$

$

Not available

66

Simplicity 176874

CLUTCH ROD ASSEMBLY

$

$

Not available

67

Simplicity 162065

SPRING

$

$

Not available

68

Simplicity 105201

COLLAR, Set

$

$

Not available

69

Simplicity 2828804

SCREW, Set, 1/4-20 x 3/8 Lg.

$

$

Not available

70

Simplicity 1918196SM

CLIP, Hairpin
(Superseded to 5025210YP)

$3.99

$

In Stock, only 3 left!

0

71

Simplicity 2156306SM

PIN

$7.49

$

In Stock, Qty 20+

0

72

Simplicity 2106788

CLIP, Spring

$

$

Not available

73

Simplicity 930685

BOLT, Carriage, 5/16-18 x 5/8

$

$

Not available

74

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

75

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

76

Simplicity 1668513SM

ROLLER ASSEMBLY

$10.99

$

In Stock, Qty 20+

0

77

Simplicity 2108178

ROLLER

$

$

Not available

78

Simplicity 2108419

BUSHING

$

$

Not available

79

Simplicity 1603205SM

SHAFT, Control Roller

$29.99

$

Usually ships in 2-12 days

0

80

Simplicity 2827793SM

RING, "E"
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

81

Simplicity 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

82

Simplicity 1650645

ROD

$

$

Not available

83

Simplicity 2822000

PIN, Cotter, 3/32 x 5/8

$

$

Not available

84

Simplicity 2106787

CLIP, Hairpin

$

$

Not available

85

Simplicity 108199

LINK

$

$

Not available

86

Simplicity 2817397

CAPSCREW, 5/16-18 X 3/4

$

$

Not available

87

Simplicity 2823362

LOCKNUT, 5/16-18

$

$

Not available
