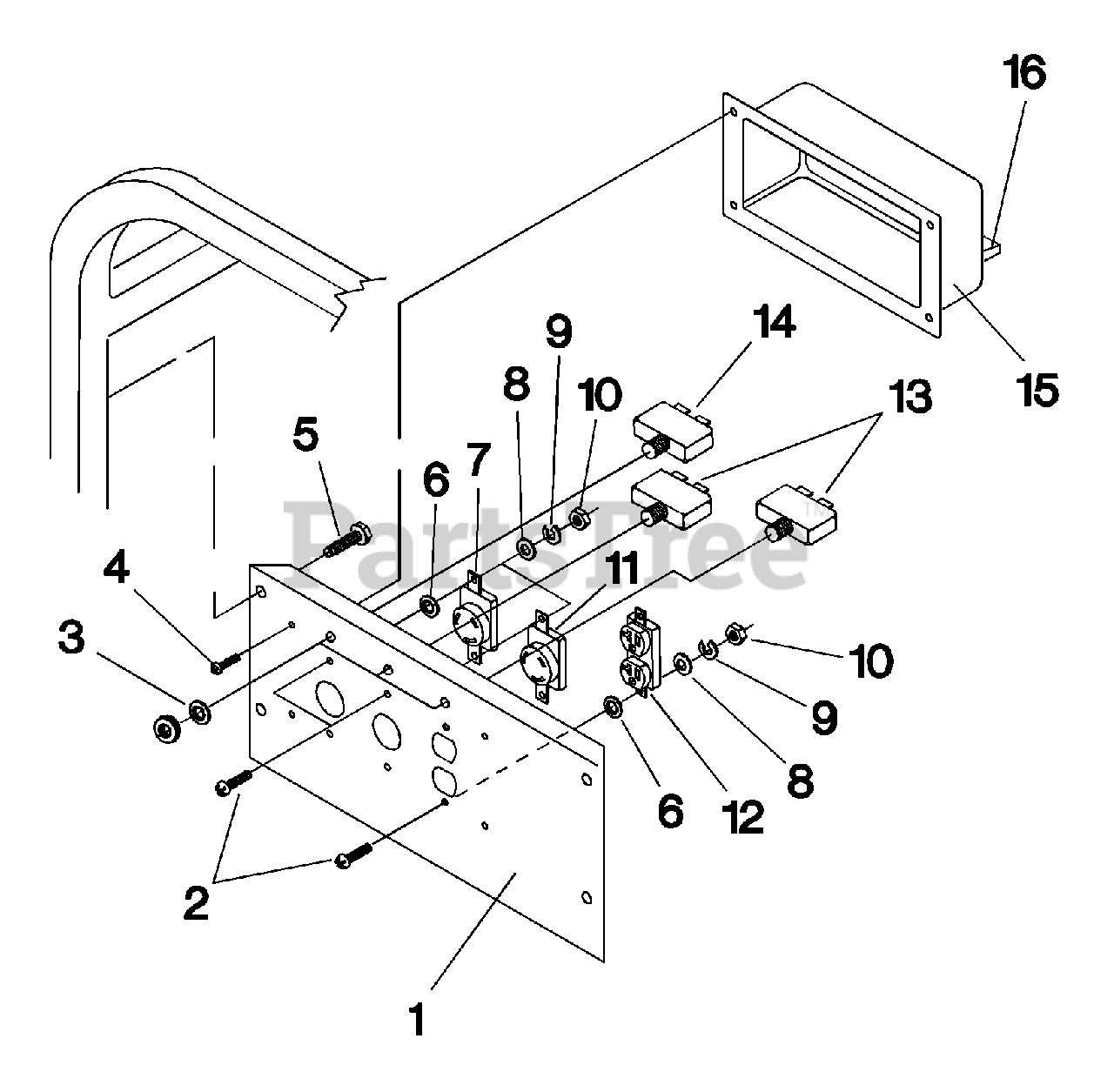

1652-0 - Generac 4,200 Watt Portable Generator Control Panel Parts Diagram

4,200 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton B4245GS

PANEL, Control

$28.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 75475GS

SCREW, M4 - 0.7 x 10mm

$3.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 82881GS

WASHER, Internal Lock

$1.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 82308GS

SCREW, Self Tapping

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B2153GS

SCREW, No. 10 Self Drilling x 7/8"

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 23365GS

WASHER, No. 8 Serrated Lock

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 68868GS

RECEPTACLE, 120 Volt, 30 Amp Twistlock
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 38150GS

WASHER, No. 8 Flat

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22264GS

WASHER, No. 8 Lock

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 51715GS

NUT, M4 0.7 Hex

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 68867GS

RECEPTACLE, 120/240 Volt, 20 Amp Twistlock

$46.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 68759GS

OUTLET, 120 Volt, 20 amp Duplex

$24.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 75207GS

CIRCUIT BREAKER, 20 Amp
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 75207AGS

CIRCUIT BREAKER, 30 Amp
(Superseded to 706178)

$34.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 81919GS

CONTROL PANEL, Back

$136.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22694GS

CONNECTOR, 6-Pin Male

$5.99

$

Usually ships in 2-12 days

0
