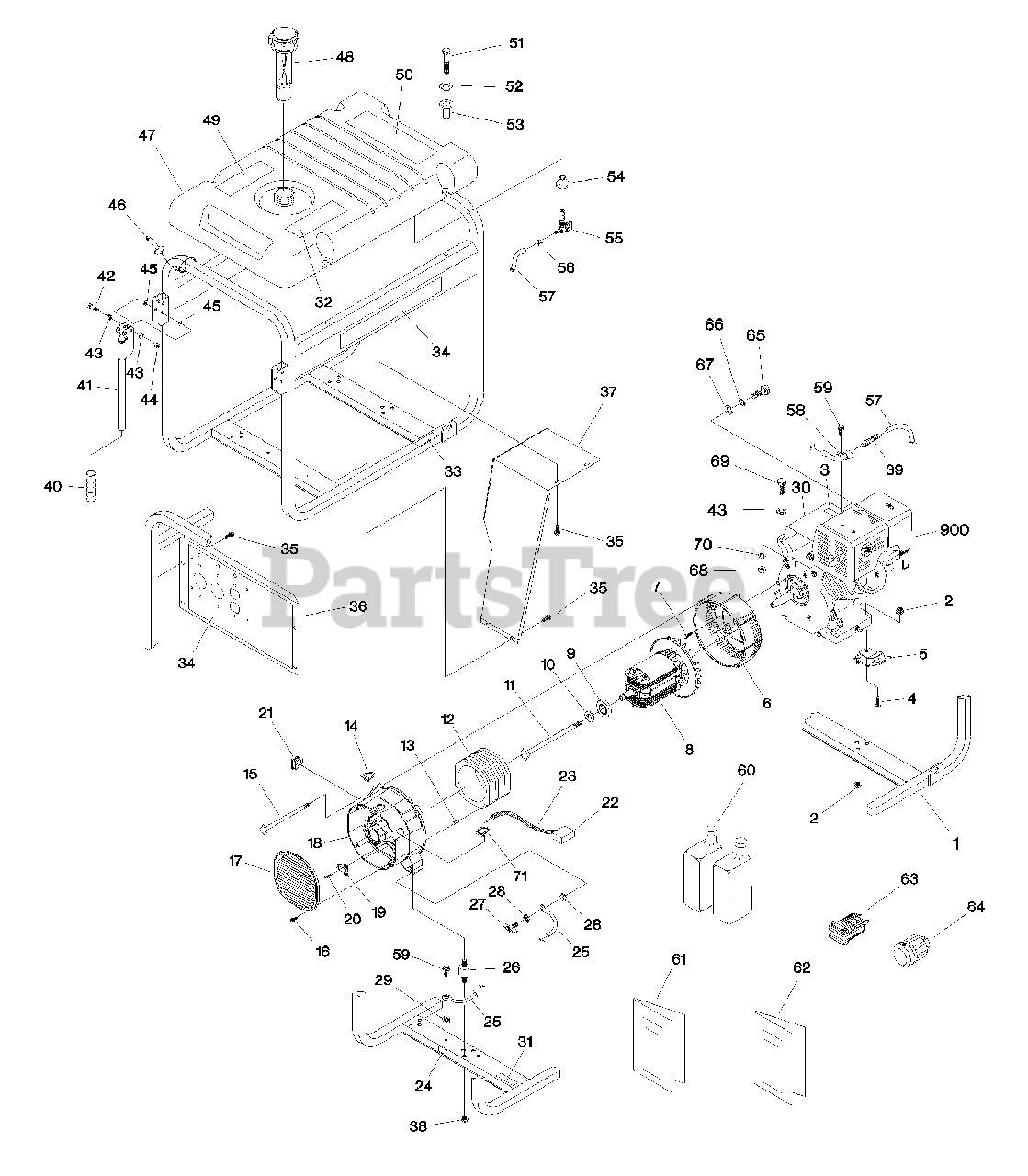

1652-0 - Generac 4,200 Watt Portable Generator Main Unit Parts Diagram

4,200 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B189811GS

CRADLE

$202.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 67989GS

NUT, M8 - 1.25, Flanged Serrated

$3.49

$

In Stock, Qty 20+

0

3

Briggs & Stratton 73054GS

DECAL, Fuel Shut-Off

$8.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 76222GS

PPHS, M8-1.25 x 40mm

$4.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 70642GS

MOUNT, 45° Vibration

$31.99

$

In Stock, only 3 left!

0

6

Briggs & Stratton 66365GGS

HOUSING,Adapter

$69.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 86307GS

SCREW, 5/16"-24 x 3/4" SEMS

$2.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 91844JGS

ASSEMBLY, Rotor

$

$

Not available

9

Briggs & Stratton 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 96796GS

WASHER, Special

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 47480GS

BOLT, Rotor

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 91859AGS

ASSEMBLY, Stator

$

$

Not available

13

Briggs & Stratton 81917GS

PIN, M4 x 10mm Roll

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 84242GS

GROMMET, Plastic

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 86308CGS

BOLT, Stator

$5.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 74908GS

SCREW, M5-0.8 x 10mm

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B4871GS

COVER, Bearing Carrier

$9.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton SRV66825DGS

CARRIER, Rear Bearing

$137.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 91825GS

ASSEMBLY, Brush & Bridge Rectifier

$54.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 66849GS

SCREW, M5-0.8 x 15mm

$4.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22695GS

CONNECTOR, 6-pin Male

$6.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84409GS

SLEEVING, Flexo, .75ft

$4.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 82857GS

MOUNT,Vibration

$12.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 86494GS

SCREW, M6 x 16mm Wing

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 26850GS

WASHER, 1/4" Shakeproof

$2.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 23762GS

WASHER, #10 Ext. Shakeproof

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton B189434GS

COVER, Engine

$24.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 20566GS

DECAL, 1-800

$1.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 77816GS

DECAL, Caution, Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 190020GS

SET, Decals

$34.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton B2153GS

SCREW, Self Drill, 12 - 14 x 7/8"

$4.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B4244GS

PANEL, Control

$217.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton J189818GS

HEATSHIELD, Muffler

$66.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 189160GS

NUT, 5/16-18, Flange Serrated

$2.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 189564GS

CONNECTOR, Reducer, 3/16 x 1/4"

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton B4605GS

GRIP
(Superseded to 198669GS)

$8.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton BB5586GS

HANDLE

Note: (Includes Item 40)

$

$

Not available

42

Briggs & Stratton 39287GS

HHCS, M8 - 1.25 x 45

$3.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 22145GS

WASHER, Flat, 5/16 - M8

$2.99

$

In Stock, only 1 left!

0

44

Briggs & Stratton 49820GS

NUT, M8 Nylok

$3.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 187104GS

WASHER, Nylon

$4.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton B4135GS

PIN, with Lanyard

$6.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton B1998AGS

TANK ASSY., Fuel
(Superseded to 193500GS)

Note: (Includes Items 54 & 55)

$

$

Not available

48

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

49

Briggs & Stratton 188333GS

DECAL, Instructions, Fuel Level

$23.99

$

In Stock, only 1 left!

0

50

Briggs & Stratton 93826GS

DECAL, Starting Instructions

$14.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 78831AGS

HHCS, M6 - 1.0 x 45, SEMS

$3.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189155GS

WASHER, Flat

$9.49

$

In Stock, only 1 left!

0

53

Briggs & Stratton 83465GS

GROMMET,Tank

$3.99

$

In Stock, Qty 20+

0

54

Briggs & Stratton 78299GS

BUSHING, Gas Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

55

Briggs & Stratton 80270GS

VALVE, Fuel
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

56

Briggs & Stratton 48031CGS

CLAMP, Hose Band
(Superseded to 691038)

$3.99

$

In Stock, Qty 7

0

57

Briggs & Stratton 30340GS

HOSE, Fuel, 1/4 ID .075ft.
(Superseded to 499742)

$77.99

$

In Stock, Qty 16

0

58

Briggs & Stratton B1232GS

CLAMP, Hose

$2.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2"

$3.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

61

Briggs & Stratton B1464GS

MANUAL, Engine

$17.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 189829GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 37806GS

PLUG, 125V 30 Amp, 3-Prong
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 43483GS

PLUG, 120/240V, 20 Amp
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 38750GS

HHCS, M6 - 1.0 x 30

$2.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 22097GS

WASHER, Lock 1/4" - M6

$3.49

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 22473GS

WASHER, Flat 1/4" - M6
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

68

Briggs & Stratton 45771GS

NUT, M8 - 1.25

$6.49

$

In Stock, only 2 left!

0

69

Briggs & Stratton 42909GS

HHCS, M8 - 1.25 x 30

$3.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 22129GS

WASHER, Lock 5/16 - M8

$2.99

$

In Stock, only 2 left!

0

71

Briggs & Stratton 189127GS

GROMMET, Bushing, Rubber

$4.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

Briggs & Stratton 84883GS

Cord Wrap

Note: Optional Accessories Not Included
