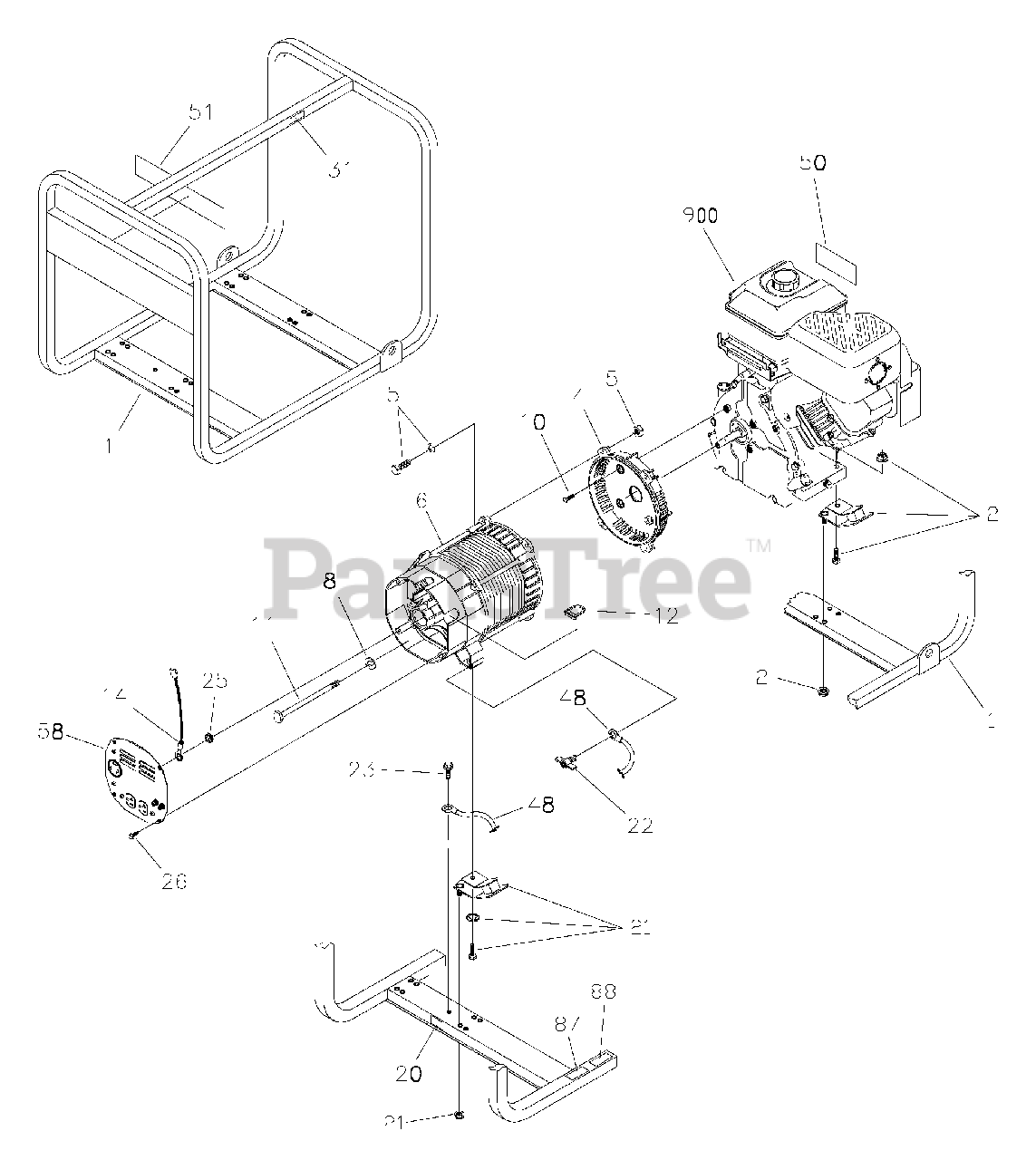

1653-3 - Generac 3,250 Watt Portable Generator Main Unit Parts Diagram

3,250 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M190341GS

ASSY, Cradle

$262.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT,Vibration Mount

$13.99

$

In Stock, Qty 7

0

4

Briggs & Stratton 186058AGS

HOUSING, Engine Adaptor

$30.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 194151GS

KIT, Hardware Mounting Adapter

$22.99

$

Usually ships in 2-12 days

0

6

NSP

ASSY,Alternator

Note: (See "Alternator")

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, Flat

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 86307GS

HHCS, 5/16 - 24 x 3/4, SEMS

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 24823GS

HHCS, 5/16" - 24 x 7-7/8"

$18.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84242GS

GROMMET, Plastic RBC

$4.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 55199JGS

WIRE, Ground Panel

$1.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194849GS

KIT,Vibration Mount

$11.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10-16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 23762GS

WASHER, #10 Ext. Shakeproof

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 .08 x 10mm

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 191436GS

DECAL, Caution Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 192491GS

DECAL, Fuel Tank

$17.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 196056GS

DECAL, Start,Warning, English/French

$26.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 189645GS

ASSY, Control Panel

Note: (See "Control Panel")

$104.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 195459GS

DECAL, Neutral Ground

$6.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 195940GS

DECAL, French Neutral Ground

$6.99

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 195269GS

MANUAL, Owners

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS5242

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 196309GS

KIT, Decal Srv

Note: Not Illustrated

$48.99

$

Usually ships in 2-12 days

0
