1653-4 - Generac Elite Series 3,250 Watt Portable Generator Wheel Kit Parts Diagram

Elite Series 3,250 Watt Portable Generator

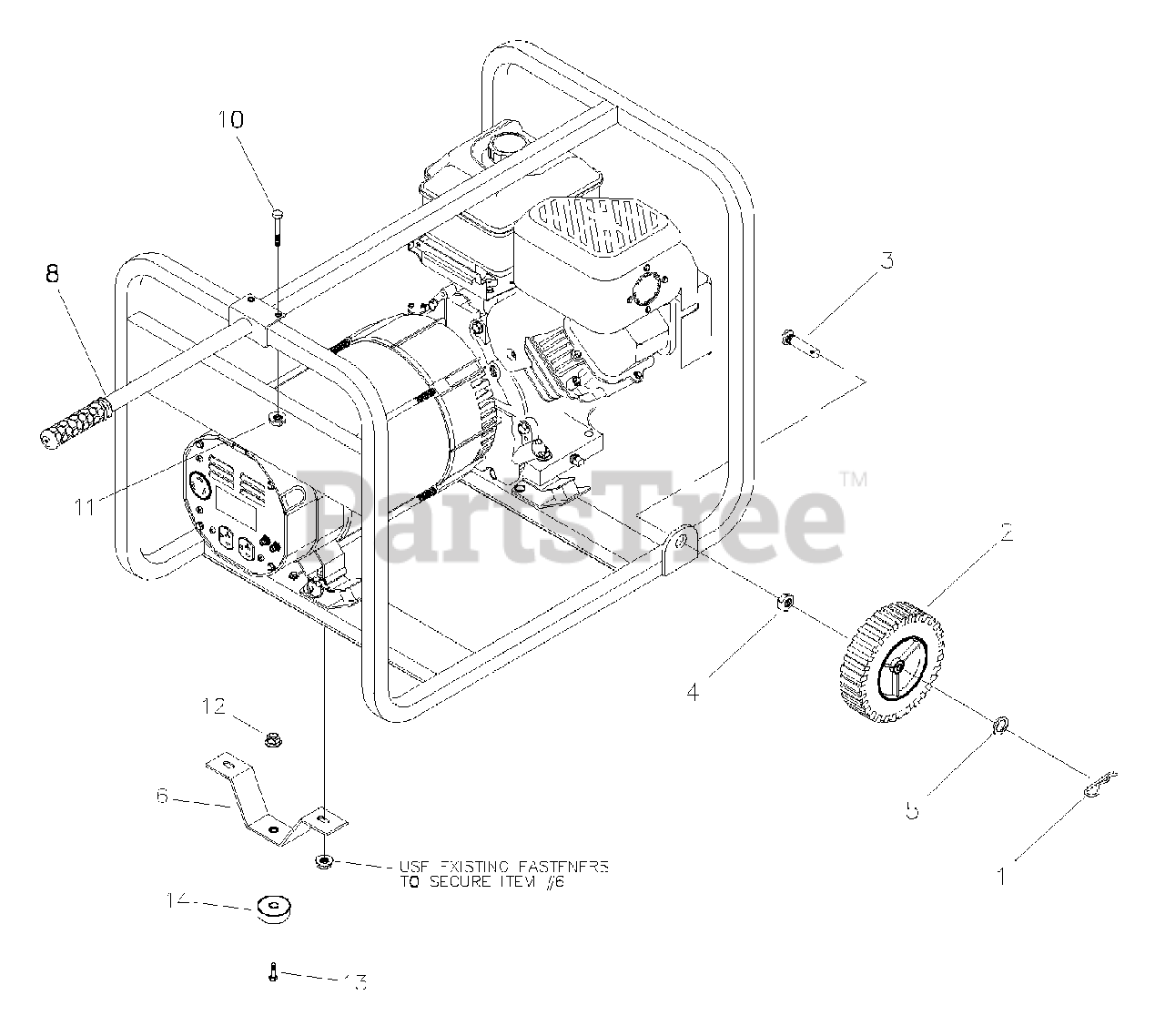

Wheel Kit Parts Diagram

  • Title

1

Briggs & Stratton 87005AGS

PIN, Retaining
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

2

Briggs & Stratton 197061GS

WHEEL

$24.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 93728GS

STUD,Axle

$7.49

$

In Stock, only 3 left!

0

4

Briggs & Stratton 94222QGS

JAM NUT, Lock 5/8" - 18

$3.99

$

In Stock, only 1 left!

0

5

WASHER, Flat

Note: (Purchase locally)

$

$

Not available

6

Briggs & Stratton 190505GS

LEG, Mounting

$28.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 84910GS

HANDLE, Lifting w/Grip
(Superseded to 189715GS)

$54.99

$

In Stock, only 3 left!

0

10

HHCS, M8 - 1.25 x 45

Note: (Purchase locally)

$

$

Not available

11

Briggs & Stratton 52858GS

NUT, Locking Hex M8 - 1.25

$3.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 77395GS

NUT, Flange Lock M6 - 1.0

$3.99

$

Usually ships in 2-12 days

0

13

HHCS, M6 - 1.00 x 16

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 87841GS

MOUNT, Rubber Donut

$3.99

$

In Stock, only 3 left!

0

Briggs & Stratton 189718GS

GRIP, Handle
(Superseded to 198669GS)

Note: Item Not Called Out

$8.99

$

Usually ships in 2-12 days

0
