16530 XLS (961930062-00) - Husqvarna 30" Snow Blower (2010-06) CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

30" Snow Blower

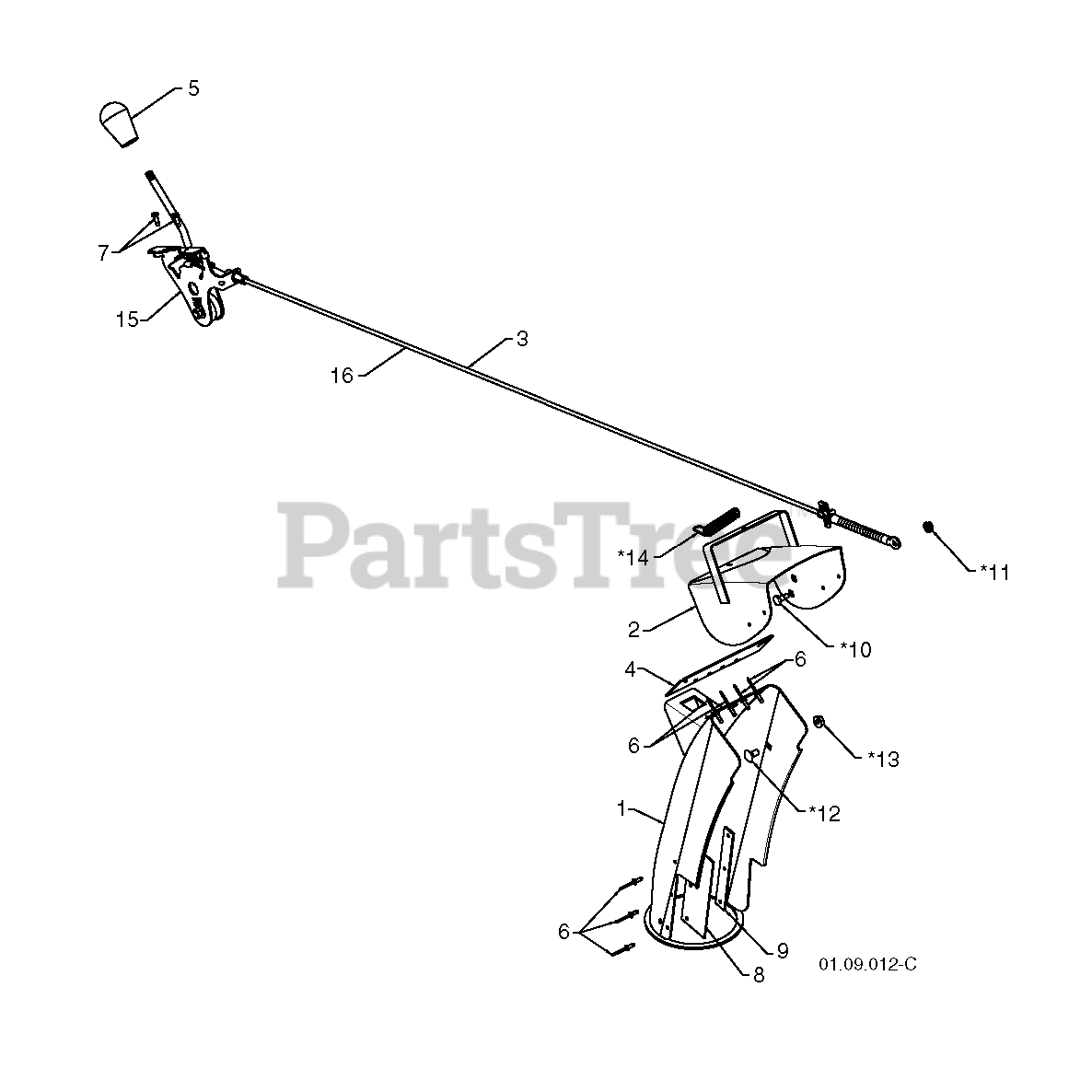

CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

  • Title

5

Husqvarna 532414280

KNOB LEVER, BLACK

$7.99

$

In Stock, Qty 5

0

1

Husqvarna 532435791

RP CHUTE.WELDMENT.PNT.ORANGE
(Superseded to 532444041)

$62.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532421163

CONTROL.ASM.DEFLECTOR

$

$

Not available

13

Husqvarna 532751153

NUT.LOCK.5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, Qty 5

0

15

Husqvarna 532420679

RP CNTRL.HEAD.ASSEM.DEFLECTOR
(Superseded to 587030801)

Note: SERVICE PART

$68.99

$

Usually ships in 3-10 days

0

7

Husqvarna 817501010

SCREW #10-24 X 5/8

$

$

Not available

6

Husqvarna 532128415

RIVET BLIND

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

$7.99

$

In Stock, Qty 12

0

9

Husqvarna 532435776

RP STRAP.SHEILD.RETAINER

$9.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532421164

SERVICE.CHUTE.DEF.CBL.GRY
(Superseded to 585271601)

Note: SERVICE PART

$31.99

$

In Stock, only 2 left!

0

4

Husqvarna 532420325

SEAL.DEFLECTOR

$6.99

$

In Stock, only 1 left!

0

12

Husqvarna 872250505

BOLT
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 532430324

SHIELD.SNOW.CHUTE

$22.99

$

In Stock, only 2 left!

0

2

Husqvarna 532184113

DEFLECTOR.WELDMENT.PNT.ORANGE
(Superseded to 588077802)

$113.99

$

In Stock, only 2 left!

0

10

Husqvarna 532179829

BOLT, SHOULDER

$4.99

$

In Stock, Qty 10

0

11

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$3.99

$

In Stock, Qty 6

0
