16533 ES (1696031) - Murray 33" Snow Thrower, 16.5hp (2011) Wheels And Tires Group Parts Diagram

33" Snow Thrower, 16.5hp

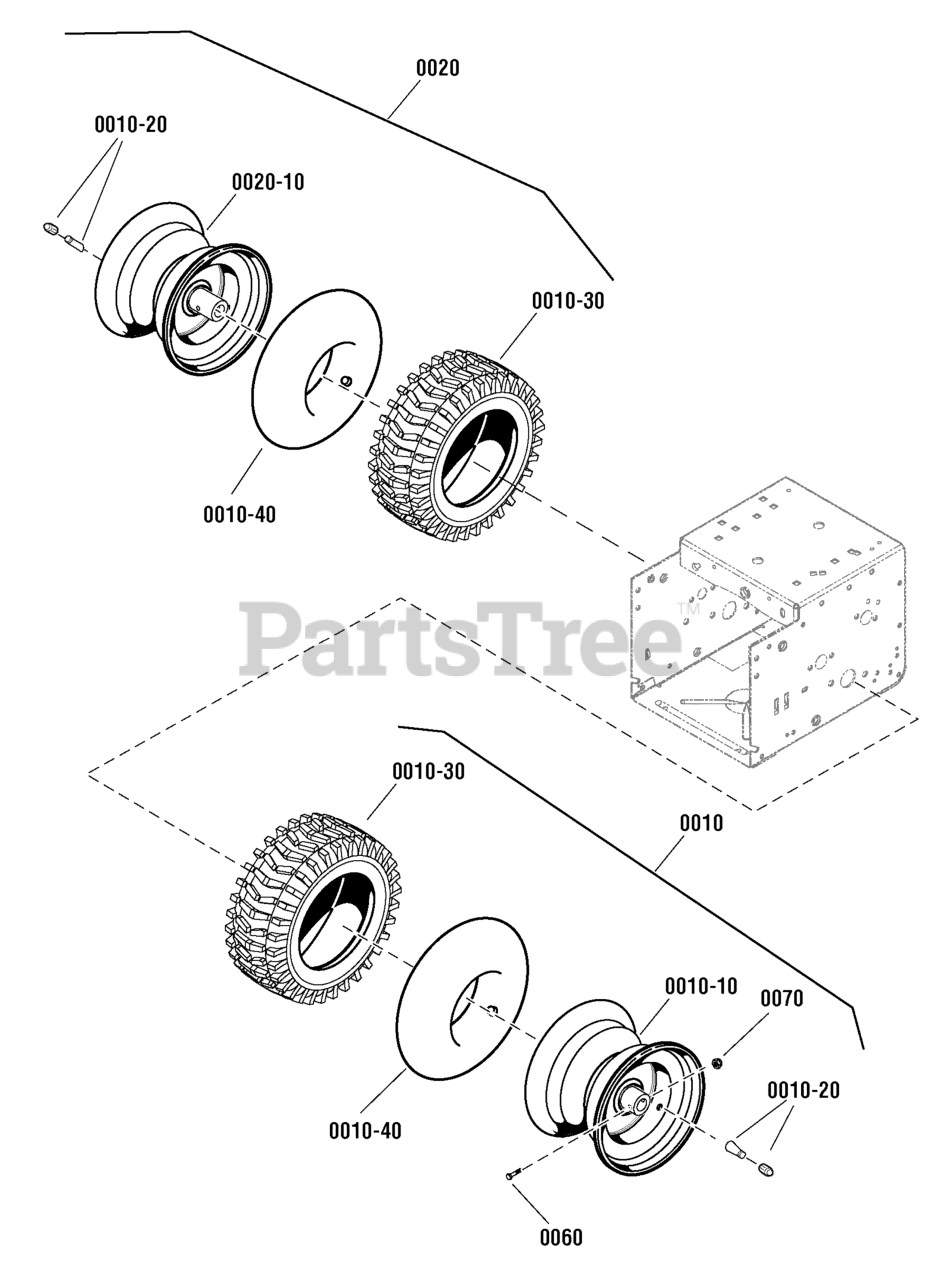

Wheels And Tires Group Parts Diagram

  • Title

0010

Murray 1733005SM

WHEEL & TIRE ASSEMBLY, LH

Note: (Includes Ref. Nos. 0010-10, 0010-20 & 0010-30)

$181.99

$

Usually ships in 2-12 days

0

0010-10

* RIM, Wheel, LH

$

$

Not available

0010-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$8.49

$

Usually ships in 2-12 days

0

0010-30

Murray 1751301YP

TIRE, 16 x 6.50-8

$107.99

$

Usually ships in 2-12 days

0

0010-40

Murray 2164247SM

TUBE, Tire

$43.99

$

In Stock, only 2 left!

0

0020

Murray 1733007SM

WHEEL & TIRE ASSEMBLY, RH

Note: (Includes Ref. Nos. 0020-10, 0010-20 & 0010-30)

$181.99

$

Usually ships in 2-12 days

0

0020-10

* RIM, Wheel, RH

$

$

Not available

0060

Murray 577015MA

BOLT, Hex, 1/4-20 x 1-3/4, G5

$5.49

$

In Stock, Qty 9

0

0070

Murray 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
