16533 ES (1696272-00) - Murray 33" Snow Thrower, 16.5hp (2013) Auger Housing Group Parts Diagram

33" Snow Thrower, 16.5hp

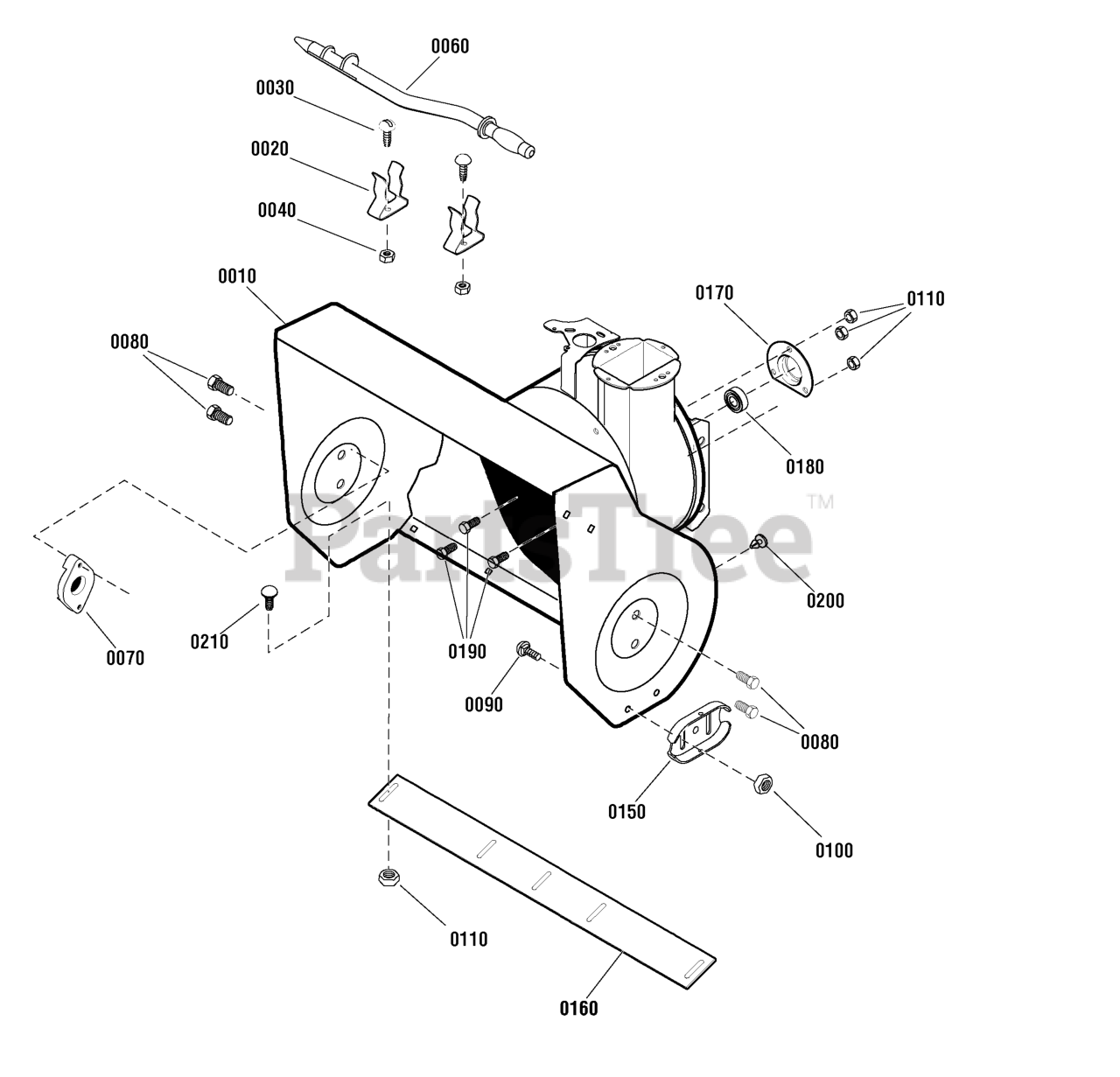

Auger Housing Group Parts Diagram

  • Title

0010

Murray 1687608YP

HOUSING, Auger, 33"

$755.99

$

Usually ships in 2-12 days

0

0020

Murray 1736620YP

CLIP, Retainer

$6.99

$

In Stock, Qty 8

0

0030

Murray 1960569SM

SCREW, Truss Head, Torx #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 703412

NUT, Nylock, 10 x 24

$4.49

$

In Stock, Qty 5

0

0060

Murray 1736094YP

BRUSH, Cleanout

$36.99

$

In Stock, only 2 left!

0

0070

Murray 53757MA

BEARING, Auger

$10.99

$

In Stock, only 2 left!

0

0080

Murray 703235

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 703126

BOLT, Carriage, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 703333

NUT, Hex Flange, 3/8-16

$4.99

$

In Stock, Qty 11

0

0110

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.99

$

In Stock, Qty 20+

0

0150

Murray 1727854BMYP

SKID, Height Adjust

$16.99

$

In Stock, Qty 13

0

0160

Murray 1740747AYP

BLADE, Scraper, 33

$61.99

$

Usually ships in 2-12 days

0

0170

Murray 582957YZMA

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$11.99

$

In Stock, only 2 left!

0

0180

Murray 1705897SM

BEARING, Ball

$8.49

$

In Stock, Qty 20+

0

0190

Murray 703822

CAPSCREW, Hex Head, 5/16-18 x 5/8

$4.49

$

In Stock, only 1 left!

0

0200

Murray 760040MA

PLUG, Panel

$

$

Not available

0210

Murray 703447

BOLT, Carriage, 5/16-18 x 5/8, G5

$4.49

$

In Stock, Qty 18

0
