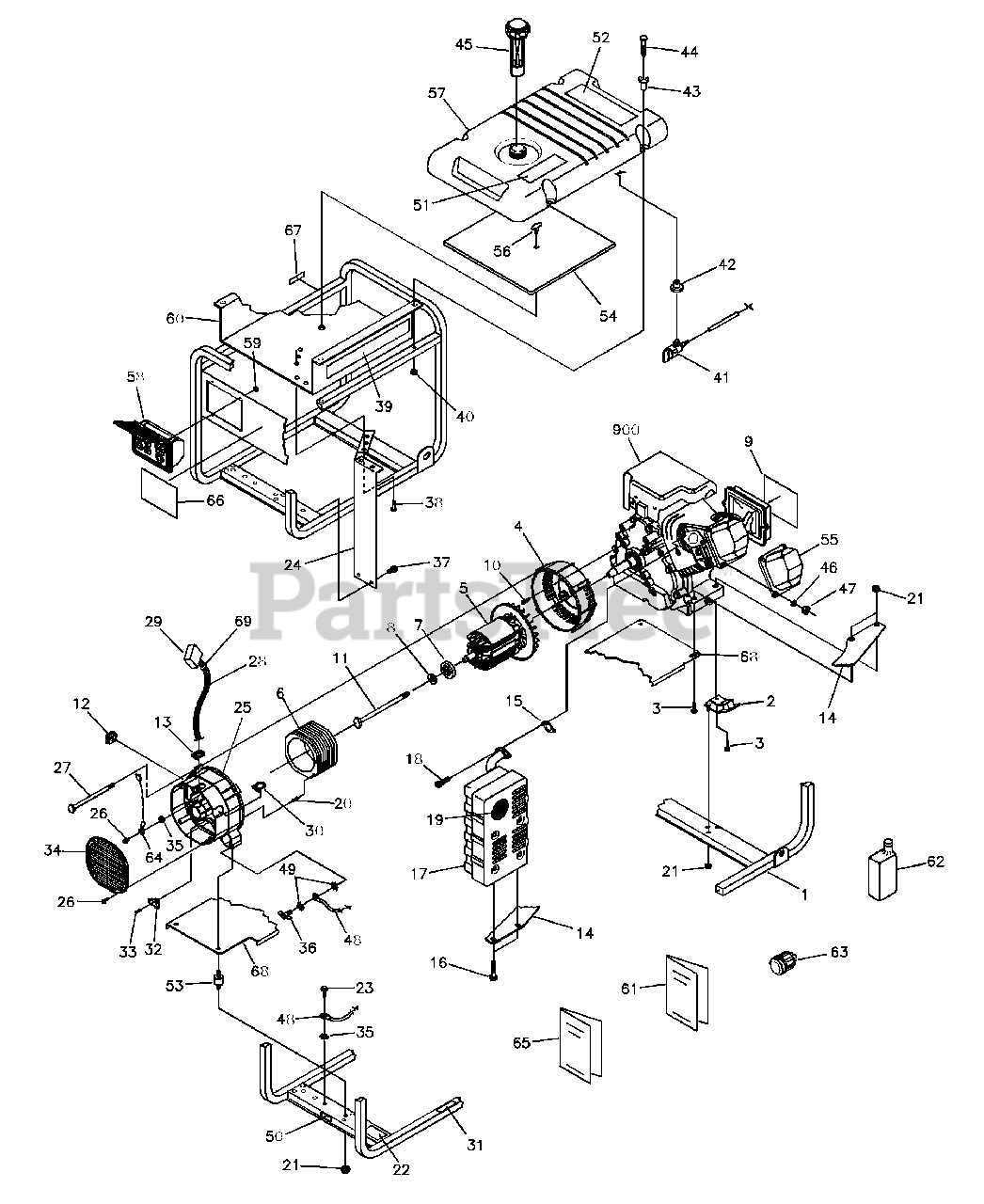

1654-0 - Generac 5,500 Watt Portable Generator Main Unit Parts Diagram

5,500 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton A189503GS

CRADLE
(Superseded to M189503GS)

$118.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 70642GS

MOUNT, Vibration, 45°.

$31.99

$

In Stock, only 3 left!

0

3

Briggs & Stratton 76222GS

PPHMS, M8 - 1.25 x 40 mm

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66365GGS

HOUSING, Engine Adapter

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 187746GS

ASSEMBLY, Rotor

Note: (Inclds Item 7)

$290.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 187745GS

ASSEMBLY, Stator

$

$

Not available

7

Briggs & Stratton 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 189949GS

DECAL, Cover,Air Cleaner

$8.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 86307GS

SCREW, SEMS

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 99383GS

SCREW

$16.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 189127GS

GROMMET, Rubber

$4.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 188551GS

GASKET, Exhaust
(Superseded to 695398)

$7.99

$

In Stock, Qty 5

0

16

Briggs & Stratton 66476GS

SCREW, w/Lock Washer

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 60706GS

SCREW

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton 81917GS

PIN, 4mm x 10 Roll

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 67989GS

NUT, Flange Serrated

$3.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 20566GS

DECAL, 1-800 #

$1.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, Self Drilling
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton J190061GS

SHIELD, Heat

$

$

Not available

25

Briggs & Stratton SRV66825DGS

CARRIER, Rear Bearing

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

TAPTITE

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 86308AGS

BOLT, Stator

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 84409GS

SLEEVING, Flexo

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 22695GS

FASTEN, On Tab Housing 6P

$6.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 84242GS

GROMMET, Plastic

$4.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 77816GS

DECAL, Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 91825GS

ASSEMBLY, Brush Holder

$54.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 66849GS

TAPTITE

$4.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton B4871GS

COVER, Bearing Carrier

$9.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 23762GS

WASHER, Ext. Shakeproof

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 86494GS

SCREW, Wing

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2153GS

SCREW, Self Drilling

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 56893GS

SCREW, Crimptite

$3.49

$

In Stock, only 1 left!

0

39

Briggs & Stratton 189948GS

DECAL, Heat Shield

$9.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 77395GS

NUT, M6 Flange Lock

$3.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 80270GS

VALVE, Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 78299GS

BUSHING, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 83465GS

GROMMET, Tank

$3.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 78831BGS

HHCS, SEMS

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 22097GS

WASHER, Lock

$3.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 22127GS

NUT

$1.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 26850GS

WASHER, M6 Shakeproof

$2.99

$

In Stock, only 1 left!

0

50

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 85652GS

MOUNT, Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 13

0

54

Briggs & Stratton 92665GS

INSULATION

$16.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 187330GS

HOOD, Rocker Arm Cover

$12.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 85000GS

CLIP, Insulation

$2.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton B1998GS

ASSY., Tank, Fuel 7-Gallon
(Superseded to 193500GS)

Note: (Includes Items 41 & 42)

$

$

Not available

58

Briggs & Stratton 189157GS

ASSEMBLY, Control Panel

$106.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 189164GS

NUT, Palnut

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton J92039GS

SHIELD, Heat

$

$

Not available

61

Briggs & Stratton 189828GS

MANUAL, Owners

$14.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton BB3061GS

BOTTLE, Oil, 28 oz

$13.99

$

In Stock, only 1 left!

0

63

Briggs & Stratton 43438GS

PLUG, 250V, 30A

$26.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 189521AGS

WIRE, Ground, Panel

$4.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 188826GS

MANUAL, Engine
(Superseded to 275092GS)

$11.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 189949GS

DECAL, Panel, Control

$8.49

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 73054GS

DECAL, Fuel Shut-off

$8.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton L190018GS

PLATE, Stiffener

$46.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 28739AGS

TIE WRAP

$1.49

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable
