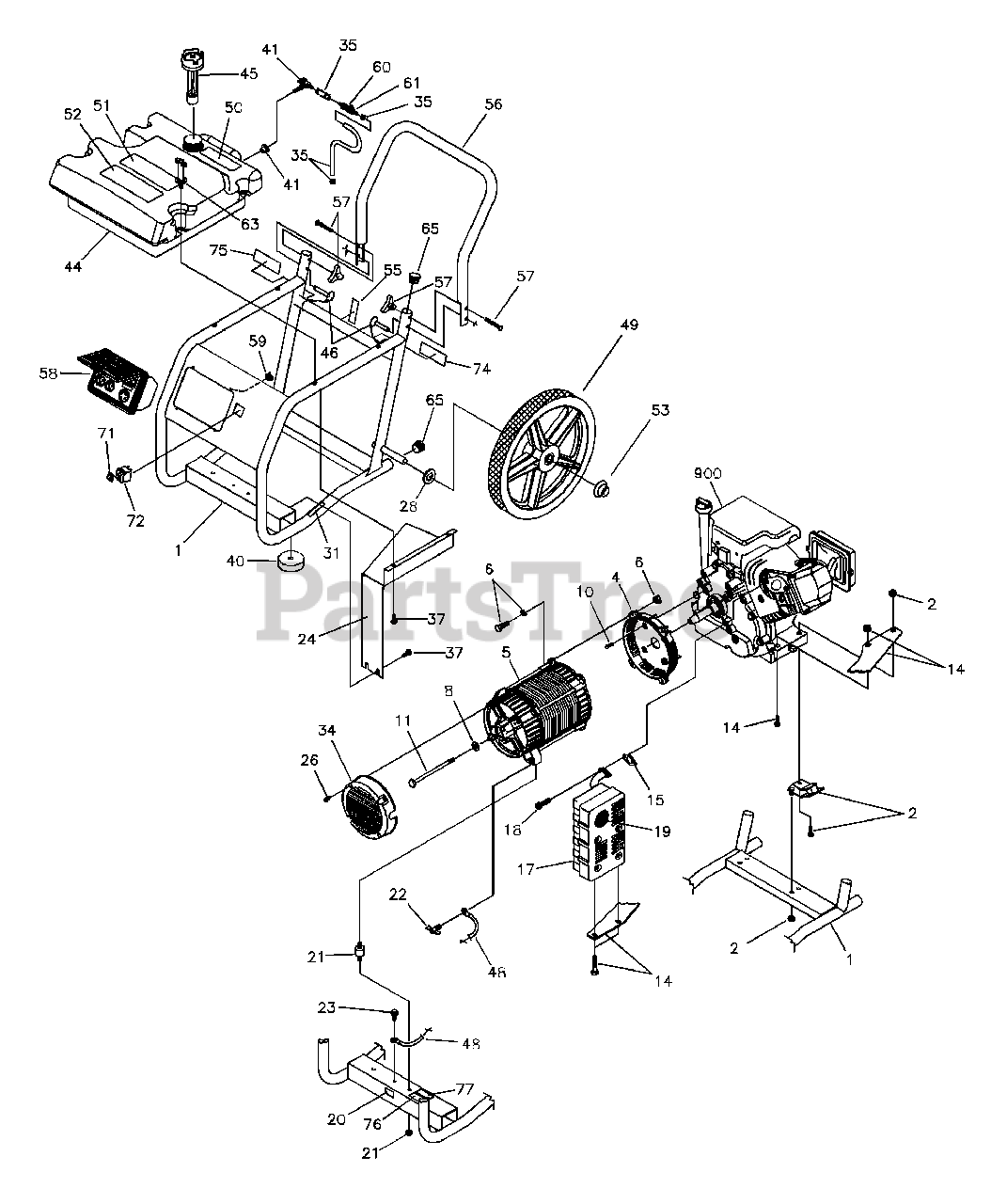

1655-1 - Generac Wheelhouse 5,500 Watt Portable Generator Main Unit Parts Diagram

Wheelhouse 5,500 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M191579GS

CRADLE

$

$

Not available

2

Briggs & Stratton 194150GS

KIT, Mount,Vibration 45°.

$13.99

$

In Stock, Qty 7

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY,Alternator

Note: (See "Alternator")

$

$

Not available

6

Briggs & Stratton 194151GS

KIT, Hardware Mounting Adapter

$22.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SHCS, 3/8-16 x 1.00 Lg.

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365FGS

HHCS, 5/16-24 x 7.44

$17.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 194729GS

KIT, Muffler Bracket w/Hardware

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 6

0

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 60706GS

SCREW, 5/16 - 18 x 3/4"

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Mount,Vibration,Alt.

$11.99

$

In Stock, Qty 17

0

22

Briggs & Stratton 86494GS

SCREW, M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10-16 x 3/4, Self Driller
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 192793GS

SHIELD, Heat

$94.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

28

WASHER, M12 Flat

Note: (Purchase Locally)

$

$

Not available

31

Briggs & Stratton 191436GS

DECAL, Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 186347GS

COVER, Bearing Carrier
(Superseded to 195422GS)

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 194432GS

KIT, Fuel Hoses with Clamps
(Superseded to 499742)

$77.99

$

In Stock, Qty 16

0

37

Briggs & Stratton 192376GS

SCREW, 12 -24 x 1/2 THD Forming

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 192553GS

KIT,Vibe Mount with Hardware

$16.99

$

In Stock, Qty 8

0

41

Briggs & Stratton 192980GS

KIT,Valve,Tank

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 194433GS

ASSY,Tank, Fuel
(Superseded to 196814GS)

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton 189420GS

CAP, Fuel Gauge

$47.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton B4135GS

PIN, with Lanyard

$6.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 191908GS

WHEEL
(Superseded to 193548GS)

$

$

Not available

50

Briggs & Stratton 188333GS

DECAL, Fuel Tank

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194984GS

DECAL, Danger, French

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

DECAL, Start Instructions, French

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 190146GS

PUSHNUT, 1/2"

$9.99

$

In Stock, only 2 left!

0

55

Briggs & Stratton 191435GS

DECAL, Shut-Off, Fuel

$8.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton M188205GS

HANDLE, Red

$96.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 189456GS

KIT, Handle Fastening

$24.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 190355GS

ASSY, Control Panel (see page 4)

$

$

Not available

59

NUT, Palnut 3/16"

Note: (Purchase Locally)

$

$

Not available

60

Briggs & Stratton 189117GS

QUICK CONNECT, Fuel, 1/4 Barb

$41.99

$

In Stock, only 4 left!

0

61

Briggs & Stratton 192695GS

QUICK CONNECT, Fuel, 1/4 Barb

$38.99

$

In Stock, Qty 6

0

63

Briggs & Stratton 189114GS

KNOB, Fuel Tank Hold Down

$

$

Not available

65

Briggs & Stratton 189332GS

CAP PLUG, 1 - 1/4" O.D.

$3.99

$

In Stock, only 2 left!

0

71

Briggs & Stratton 191481GS

BOOT, Breaker, Circuit

$11.99

$

In Stock, only 1 left!

0

72

Briggs & Stratton 191479BGS

BREAKER, Circuit, 25A 2P

$

$

Not available

74

Briggs & Stratton 192480GS

DECAL,Warning, Fuel Line Disconnect

$14.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 192519GS

DECAL,Warning, Fuel Line Disconnect

$36.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 76247GS

DECAL, Ground, French

$9.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 74728GS

DECAL, Neutral Ground

$5.49

$

Usually ships in 2-12 days

0

900

NSP

ENGINE

$

$

Not available

Briggs & Stratton MS6737

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 191596GS

MANUAL, Owners

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438GS

PLUG, 250V, 30A

Note: Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 189208GS

STABILIZER, Fuel

Note: Not Illustrated

$4.49

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 193988GS

KIT, Decals, Service

Note: Not Illustrated

$59.99

$

Usually ships in 2-12 days

0
