16550 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) Housing And Engine Assembly Parts Diagram

Walk-Behind Mower

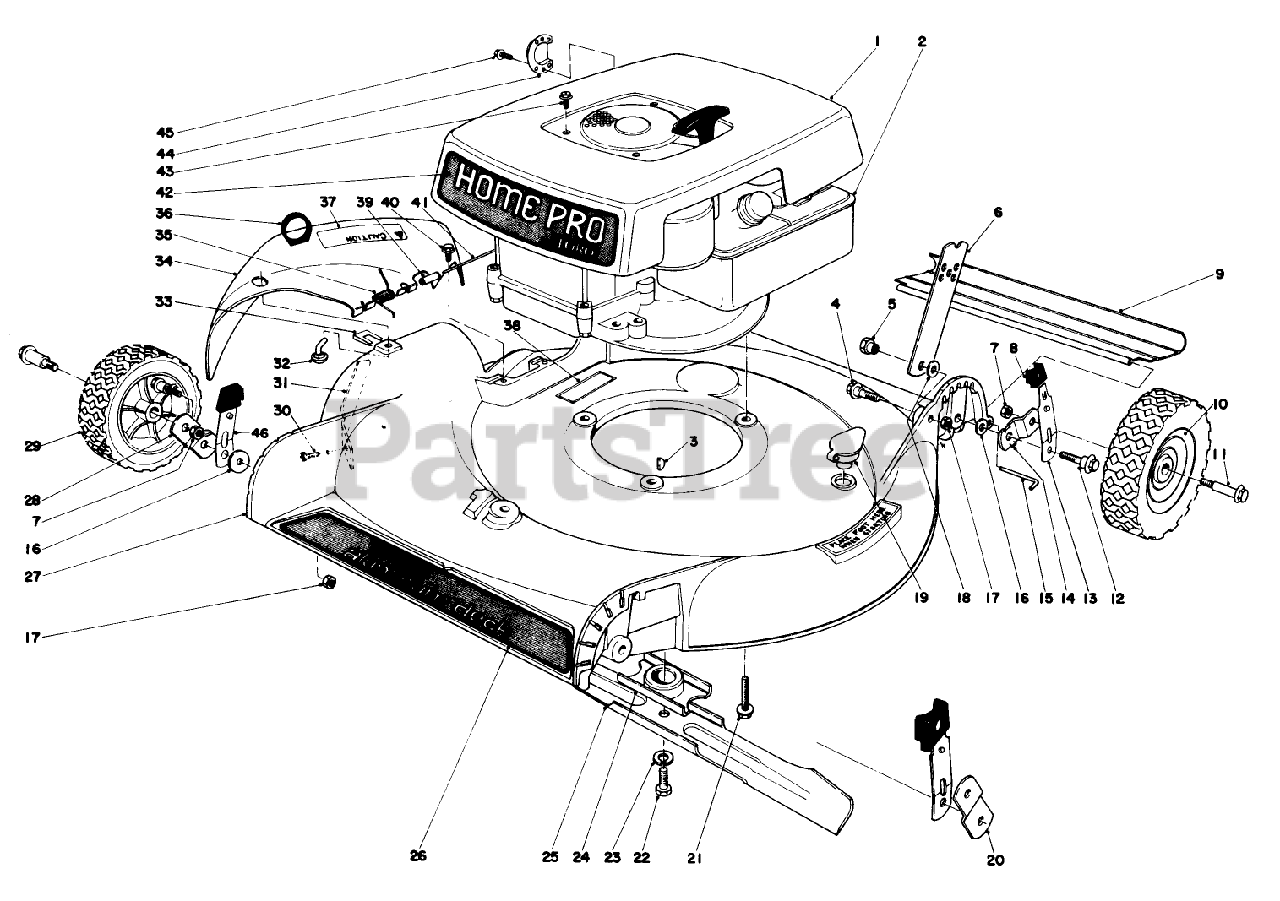

Housing And Engine Assembly Parts Diagram

  • Title

1

Toro 28-1340

DISCONTINUED

$

$

Not available

2

Toro 221-584

Engine

$

$

Currently unavailable

3

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

4

Toro 27-7210

SCREW-SHOULDER

$8.49

$

In Stock, Qty 7

0

5

Toro 27-6520

HANDLE PIVOT NUT

$10.99

$

Usually ships in 3-6 days

0

6

Toro 27-7070

See Supercession: 100-3296-03
(Superseded to 100-3296-03)

$

$

Not available

7

Toro 32146-6

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 10

0

8

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

9

Toro 36-2360

DISCONTINUED

$

$

Not available

10

Toro 10-9680

DISCONTINUED

$

$

Not available

11

Toro 3-2652

Bolt

$

$

Not available

12

Toro 12-2440

PIVOT SCREW

$25.99

$

In Stock, only 1 left!

0

13

Toro 36-3000

DISCONTINUED

$

$

Not available

14

Toro 20-3190

PIVOT ARM PLATED

$

$

Not available

15

Toro 33-3200

DISCONTINUED

$

$

Not available

16

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 6

0

17

Toro 32146-5

See Supercession: 32153-3
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

18

Toro 27-6510

HANDLE LATCH SPACER

$

$

Not available

19

Toro 6-4500

WASHOUT PLUG

$

$

Not available

20

Toro 20-3170

DISCONTINUE

$

$

Not available

21

Toro 11-0590

See Supercession: 32144-102
(Superseded to 32144-102)

$3.99

$

In Stock, Qty 5

0

22

Toro 3-5246

DISCONTINUED

$

$

Not available

23

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

24

Toro 20-2750

See Supercession: 49-7890
(Superseded to 49-7890)

$

$

Not available

25

Toro 8-5240

DISCONTINUED
(Superseded to 8-5240-03)

$

$

Not available

26

Toro 36-2350

Decal-Deck

$

$

Currently unavailable

27

Toro 8-1849

DISCONTINUED

$

$

Not available

28

Toro 20-3180

PIVOT ARM D PLTD

$

$

Not available

29

Toro 10-9670

DISCONTINUED

$

$

Not available

30

Toro 32104-44

DISCONTINUED

$

$

Not available

31

Toro 12-2990

DISCONTINUED

$

$

Not available

32

Toro 28-3260

BAG CHUTE PIN

$

$

Not available

33

Toro 28-3250

BAG CHUTE CLIP PIN

$

$

Not available

34

Toro 36-2970

DISCONTINUED

$

$

Not available

35

Toro 28-1560

DISCONTINUED

$

$

Not available

36

Toro 28-1430

LIFT LOOP

$

$

Not available

37

Toro 29-6070

DISCONTINUED

$

$

Not available

38

Toro 29-6090

DISCONTINUED

$

$

Not available

39

Toro 28-3270

DISCONTINUED

$

$

Not available

40

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 9

0

41

Toro 3-2644

DISCONTINUED

$

$

Not available

42

Toro 28-4650

DISCONTINUED

$

$

Not available

43

Toro 32104-94

DISCONTINUED

$

$

Not available

44

Toro 2210-184

DISCONTINUED

$

$

Not available

45

Toro 2210-173

DISCONTINUED

$

$

Not available

46

Toro 25-7890

SPRING ARM ASM

$

$

Not available

Toro 19-5790

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 25-9150

REPLACEMENT SERIAL PLT

Note: Not illustrated

$20.99

$

Usually ships in 3-6 days

0
