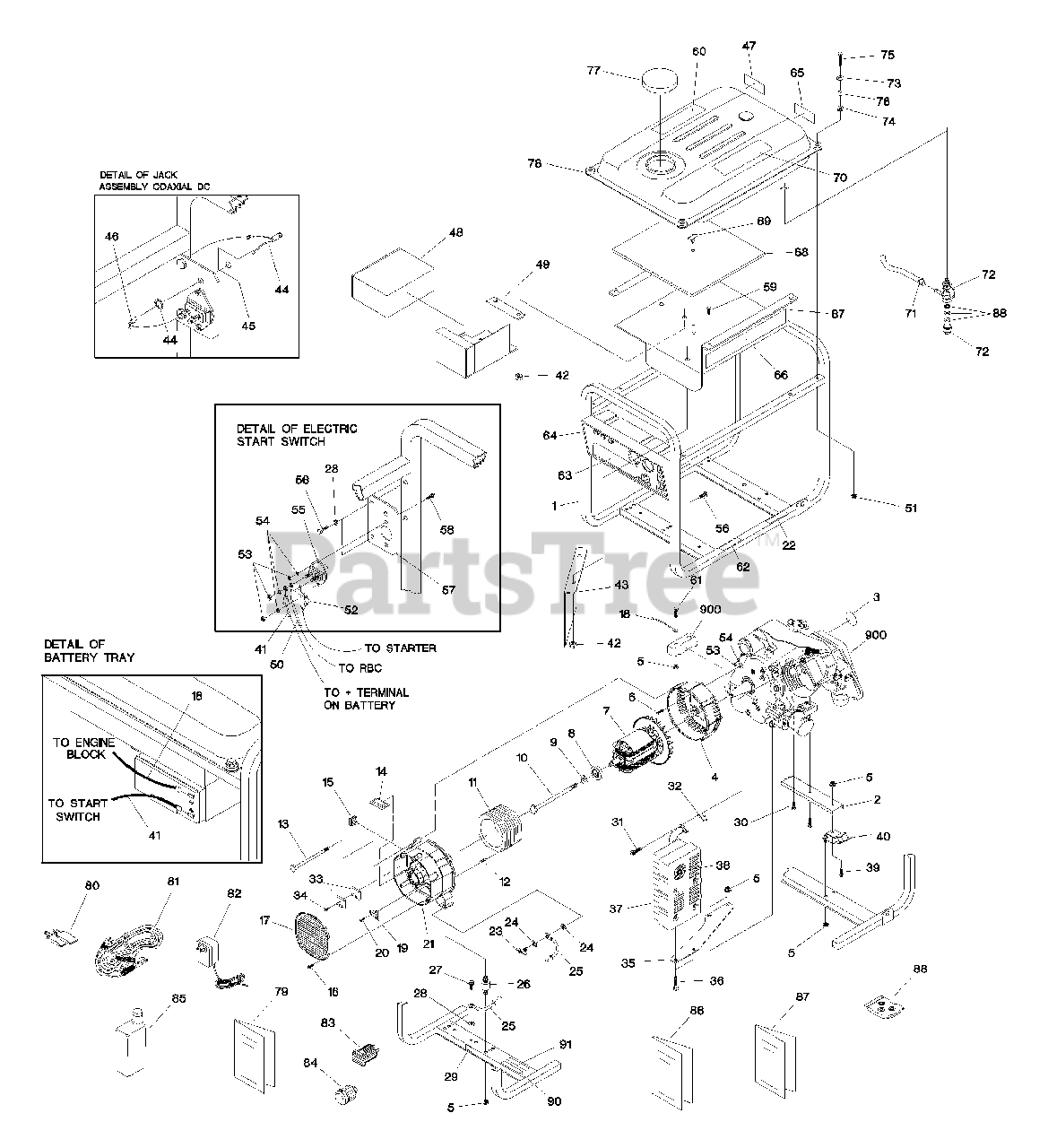

1656-0 - Generac 4,000 Watt Portable Generator Main Unit Parts Diagram

4,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton A189159GS

CRADLE, 4000EXL
(Superseded to M197027GS)

$362.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton A84021GS

SUPPORT, Engine
(Superseded to B84021GS)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 189517GS

DECAL, Recoil

$8.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66365GS

HOUSING, Engine Adapter

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 67989GS

NUT, M8 Flanged Serrated

$3.49

$

In Stock, Qty 20+

0

6

Briggs & Stratton 86307GS

HHMS, 5/16-24 x 3/4

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 84141JGS

ASSEMBLY, Rotor

Note: (Inclds Item 8)

$278.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 47480GS

HHCS, 5/16-24 x 7"

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187105AGS

ASSEMBLY, Stator

$

$

Not available

12

Briggs & Stratton 81917GS

PIN, Roll M4 x 10

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 86308GS

BOLT, M6 - 1.0 x 115

$3.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 84132GS

ASSEMBLY, Drive Module Pwr Reg.

$126.99

$

In Stock, only 3 left!

0

15

Briggs & Stratton 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B4871GS

COVER, Bearing Carrier

$9.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 185931HGS

ASM WIRE, #55, Black

$8.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 66386GS

ASSEMBLY, Brush Holder

$23.99

$

In Stock, only 4 left!

0

20

Briggs & Stratton 66849GS

TAPTITE, M5 0.8 x 16

$4.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton SRV66825DGS

CARRIER, Rear Bearing

$137.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 20566GS

DECAL, Generac 1-800

$1.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86494GS

SCREW, M6 -1.0 x 16 Wing

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 26850GS

WASHER, M6 Shakeproof

$2.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 85652GS

MOUNT,Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 17

0

27

Briggs & Stratton 86292GS

HHCS, 10 - 16 x 3/4" Self Driller
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 23762GS

WASHER, Shakeproof #10

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 84346GS

PPHMS, M8 x 35
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 40976GS

SHCS, M8 1.25 x 20

$4.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 89476GS

GASKET, Exhaust

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

34

Briggs & Stratton 66849CGS

TAPTITE, M5 0.8 x 30

$4.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 83208GS

BRACKET, Muffler

$21.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 66476GS

HHMS, LW M6 1.00 x 12

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 83071GS

MUFFLER

$

$

Not available

38

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, Qty 8

0

39

Briggs & Stratton 70644GS

PPHMS, M8 1.25 x 20

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 84508GS

MOUNT, Vibration 45°.

$22.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 185931GGS

ASM WIRE, #13, Red

$11.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 77395GS

NUT, M6 Flange Lock

$3.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton J189312GS

SHIELD, Heat

$17.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 188989GS

ASM, Jack, DC
(Superseded to 192531GS)

$10.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 189198GS

DECAL, ES, Battery Float Charger

$8.99

$

In Stock, only 1 left!

0

46

Briggs & Stratton 58359GS

LUG, 5/16 #22/18 I-S

$3.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 78549GS

DECAL, Electric Start

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 187079GS

BATTERY, 12V, 10A

$

$

Not available

49

Briggs & Stratton J188988GS

TRAY, Battery
(Superseded to 192988GS)

$55.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 189740GS

HARNESS, Wire, Starter

$25.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 52858GS

NUT, M8 Flange Lock

$3.99

$

In Stock, only 3 left!

0

52

Briggs & Stratton 185959FGS

ASSY.,Wire, #16, Red
(Superseded to 189302BGS)

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 22127GS

NUT, 1/4" - 20 Hex

$1.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 22097GS

WASHER, M6 Lock

$3.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 77282GS

SWITCH, Starter

$76.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton B2153GS

HHCS, 12 - 14 x 7/8 Self Driller

$4.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 188987GS

BRACKET, Starter Switch

$10.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 22287GS

SCREW, 1/4" - 20 x 3/4"

$3.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton B1797GS

CLIP,Tree

$3.99

$

In Stock, Qty 8

0

60

Briggs & Stratton 94480GS

DECAL, Operating Instructions, French

$17.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 39414GS

HHCS, M8 - 1.25 x 35

$2.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 77816GS

DECAL, Caution Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 189682GS

DECAL, Control Panel

$

$

Currently unavailable

64

Briggs & Stratton 87116GS

ASSY., Control Panel

$

$

Not available

65

Briggs & Stratton 73054AGS

DECAL, Fuel Shut Off

$9.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 189683GS

DECAL, Heat Shield

$

$

Currently unavailable

67

Briggs & Stratton J189130GS

SHIELD, Heat

$94.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 84687GS

INSULATION, #2-1/4" Thick

$22.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 85000GS

CLIP, Insulation

$2.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 94479GS

DECAL, Danger, French
(Superseded to 194984GS)

$17.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 189568GS

CLAMP, Hose

$5.49

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 189133GS

VALVE,Tank
(Superseded to 310573GS)

$11.99

$

In Stock, Qty 18

0

73

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 189134GS

GROMMET, Rubber

$4.99

$

In Stock, only 4 left!

0

75

Briggs & Stratton 51731GS

HHCS, M8 - 1.25 x 50

$4.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 189137GS

SPACER

$4.49

$

In Stock, only 4 left!

0

77

Briggs & Stratton 189135GS

CAP, Fuel

$20.99

$

In Stock, only 1 left!

0

78

Briggs & Stratton 189131GS

ASSY, Fuel Tank
(Superseded to 193680GS)

$

$

Not available

79

Briggs & Stratton A8926GS

MANUAL, Engine

$14.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 189208GS

STABILIZER, 1 oz Tube

$4.49

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 65787GS

CABLE, Battery Charge

$24.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

$38.99

$

In Stock, only 1 left!

0

83

Briggs & Stratton 37806GS

PLUG, 125V, 30A
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 43483GS

PLUG, 250V, 20A
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton BB3061GS

BOTTLE, Oil, 28oz Generac

$13.99

$

In Stock, only 1 left!

0

86

Briggs & Stratton 189189GS

MANUAL, 4000, Generac

$14.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton D1456GS

MANUAL, Engine Parts

$14.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 189759GS

KIT, Fuel Valve Repair
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 5

0

90

Briggs & Stratton 74728GS

DECAL, Neutral Ground

$5.49

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 76247GS

DECAL, Neutral Ground, French

$9.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE

$

$

Not available

Briggs & Stratton 84883GS

Cord Wrap

Note: Optional Accessory Not Included

$29.99

$

Usually ships in 2-12 days

0
