16570 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) Engine Assembly Parts Diagram

Walk-Behind Mower

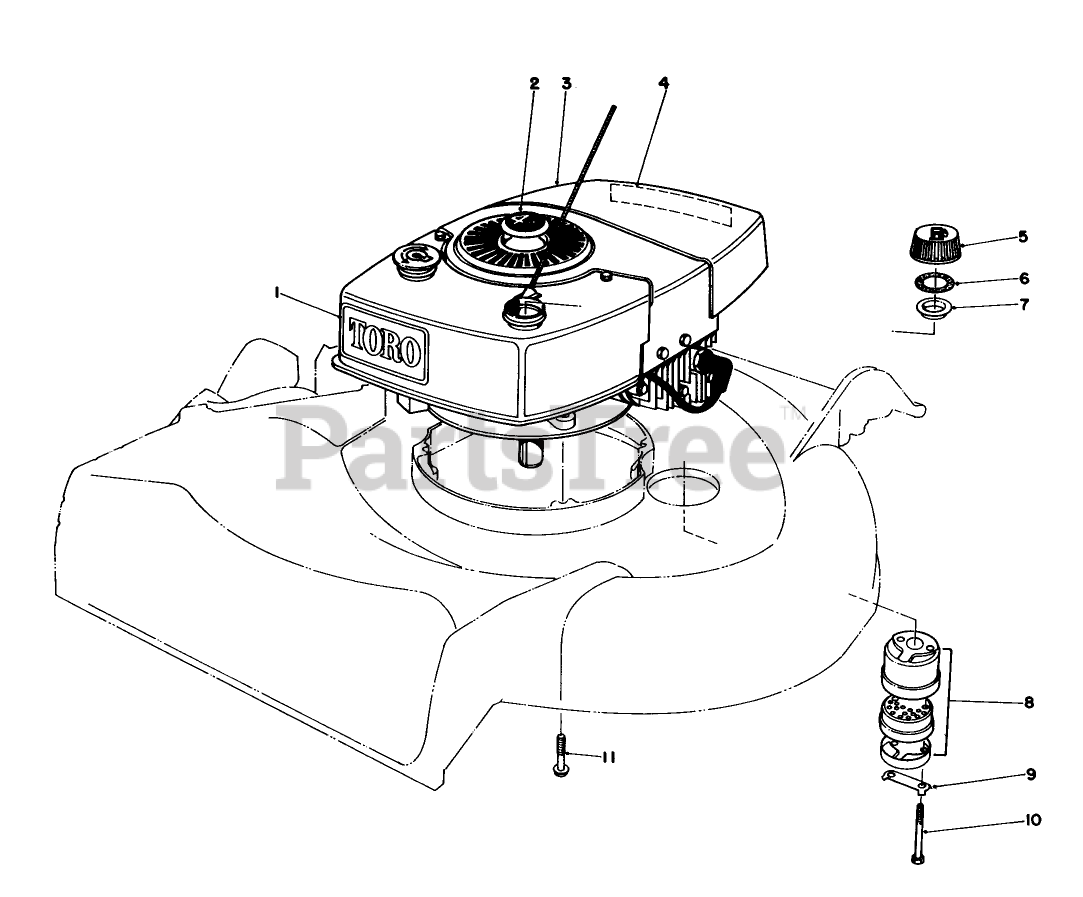

Engine Assembly Parts Diagram

  • Title

1

Toro 44-0510

See Supercession: 70-2200
(Superseded to 70-2200)

$5.99

$

In Stock, only 2 left!

0

2

Toro 38-1480

PLUG BUTTON

$16.99

$

In Stock, only 1 left!

0

3

Toro 221-731

Engine

$

$

Currently unavailable

4

Toro 46-7580

DISCONTINUED

$

$

Not available

5

Toro 27-7872

See Supercession: 42-0682
(Superseded to 42-0682)

$

$

Not available

6

Toro 2210-144

GASKET

$

$

Not available

7

Toro 2210-143

DISCONTINUED

$

$

Not available

8

Toro 5-4769

MUFFLER ASM

$67.99

$

Usually ships in 3-6 days

0

9

Toro 3-5094

CLIP - LOCKING

$12.99

$

Usually ships in 3-6 days

0

10

Toro 321-23

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

11

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$

$

Not available

Toro 11-3469

Loose parts

Note: Not illustrated

$

$

Currently unavailable
