16570 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

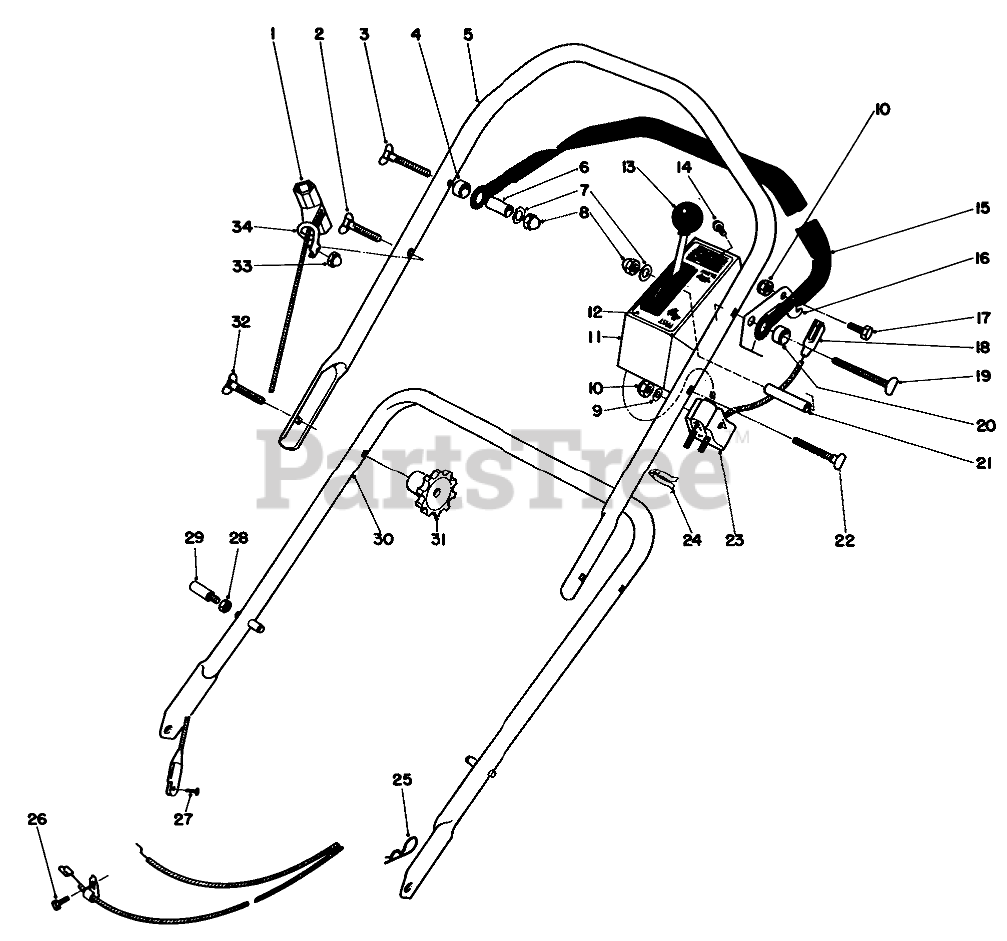

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Rope-Starter

Note: Obtain from your local Tecumseh dealer

$

$

Not available

2

Toro 46-6433

HANDLE SCREW

$11.99

$

Usually ships in 3-6 days

0

3

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

4

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

5

Toro 46-5410

UPPER HANDLE

$

$

Not available

6

Toro 46-5580

Spacer

$

$

Not available

7

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 32111-8

NUT-LOCK, CAP

$3.99

$

Usually ships in 3-6 days

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 11-4579

Panel-Control (Incl. Ref. #12)

$

$

Not available

12

Toro 46-8070

Decal-Control Cover

$

$

Not available

13

Toro 46-6010

SERVICE THROTTLE CONTRO

$60.99

$

Usually ships in 3-6 days

0

14

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 46-556Q

Control Bar Assembly

$

$

Currently unavailable

16

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$13.99

$

Usually ships in 3-6 days

0

17

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 46-8010

BRAKE CABLE

$

$

Not available

19

Toro 17-9423

5/16-18X3.75 HDLE SCREW

$

$

Not available

20

Toro 46-6240

Nylon Spacer

$

$

Not available

21

Toro 46-9380

Spacer

$

$

Not available

22

Toro 46-6432

SCREW-HANDLE

$12.99

$

Usually ships in 3-6 days

0

23

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 2 left!

0

24

Toro 218-465

BOWDEN CLIP

$

$

Not available

25

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

26

Toro 2210-250

SCREW-HH

$

$

Not available

27

Toro 2210-251

RIVET

$

$

Not available

28

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Service Replacement Replace Parts

$0.99

$

Usually ships in 3-6 days

0

29

Toro 17-9380

HANDLE PIN

Note: Service Replacement Replace Parts

$

$

Not available

30

Toro 49-0120

LOWER HANDLE ASSEMBLY

$

$

Not available

31

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

32

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

33

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

34

Toro 46-8080

Guide
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 18

0
