16570 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) STARTER ASSEMBLY NO. 590532 Parts Diagram

Walk-Behind Mower

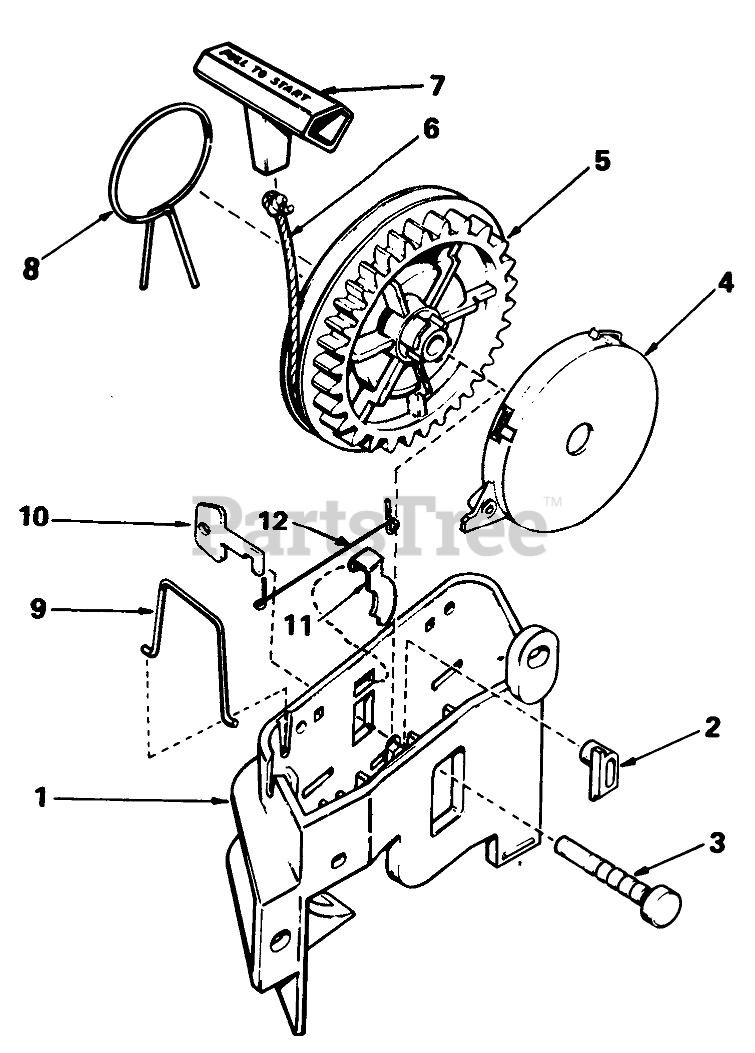

STARTER ASSEMBLY NO. 590532 Parts Diagram

  • Title

1

Toro 590523

Bracket Starter

$

$

Currently unavailable

2

Toro 590524

Pawl, Locking Not used on all engine models)

$

$

Currently unavailable

3

Toro 590525

Pin-Pulley

$

$

Currently unavailable

4

Toro 590526

Spring Assy., Rewind (Incl. #3)

$

$

Currently unavailable

5

Toro 590522

Pulley

$

$

Currently unavailable

6

Toro 590535

Rope-Starter (98 cut to length)

$

$

Currently unavailable

7

Toro 590452

Handle-Starter

$

$

Currently unavailable

8

Toro 590554

Spring, Brake

$

$

Currently unavailable

9

Toro 590529

Clip-Rope

$

$

Currently unavailable

10

Toro 590530

Key (Not Used On All Engine Models

$

$

Currently unavailable

11

Toro 590533

Pawl, Starter

$

$

Currently unavailable

12

Toro 590534

Spring, Pawl

$

$

Currently unavailable
