16575 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) ENGINE TECUMSEH MODEL NO. TVS90-43228D Parts Diagram

Walk-Behind Mower

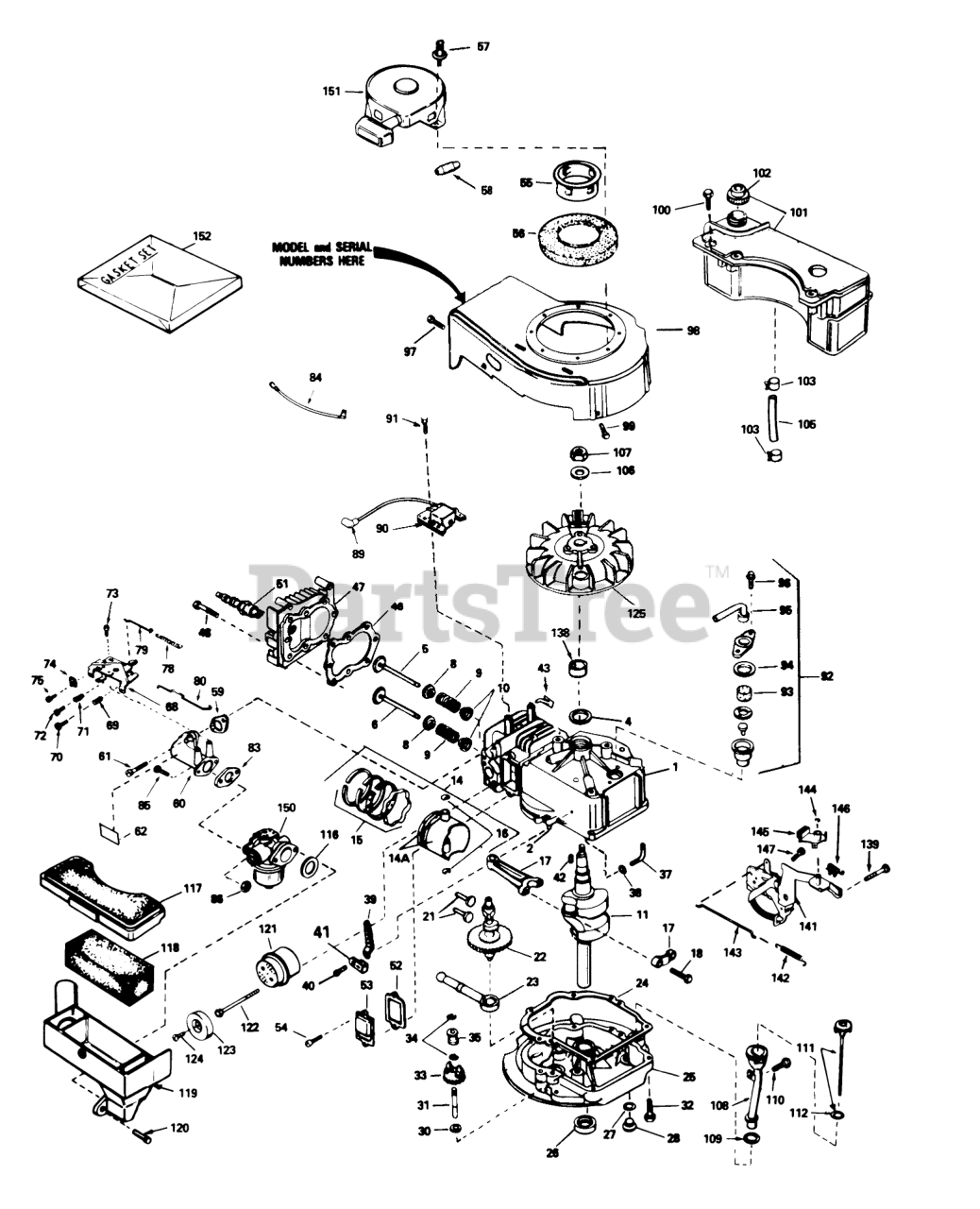

ENGINE TECUMSEH MODEL NO. TVS90-43228D Parts Diagram

  • Title
1

Tecumseh Part# 34975

Cylinder Assy. (Incl. #2 & 4)
(Superseded to 36470A)
Usually ships in 8 to 14 days

$

$135.26

0

2
Usually ships in 1 day

$

$1.76

0

Usually ships in 1 day

$

$6.72

0

5

Tecumseh Part# 29314B

Valve-Intake (Std.) (Incl. #10)
(Superseded to 29314C)
Usually ships in 1 day

$

$5.68

0

5

Tecumseh Part# 29315C

VaIve-Intake (1 /32" Oversize) (Incl. #10)
Usually ships in 8 to 14 days

$

$42.92

0

6

Tecumseh Part# 29313C

Valve-Exhaust (Std.) (Incl. #10)
Usually ships same day

Not available

$

$

6

Tecumseh Part# 29315C

Valve-Exhaust (1 /32" Oversize) (Incl. #10)
Usually ships in 8 to 14 days

$

$42.92

0

8

Tecumseh Part# 31671

Cap-Upper Valve Spring
Usually ships in 8 to 14 days

$

$1.40

0

9

Tecumseh Part# 31672

Spring-Valve
Usually ships in 1 day

$

$1.76

0

10

Tecumseh Part# 31673

Cap-Valve, Spring
Usually ships in 1 day

$

$1.72

0

11

Tecumseh Part# 34440

Crankshaft
(Superseded to 37333)
Usually ships same day

Discontinued

$

$

14

Tecumseh Part# 34514

Piston-Pin & Ring Assy. (Std.) (Incl. #14A, 15 & 16)
Usually ships in 8 to 14 days

$

$72.52

0

14

Tecumseh Part# 34515

Piston-Pin & Ring Assy. (.010 Oversize) (Incl. #14A, 15 & 16)
Usually ships in 8 to 14 days

$

$79.96

0

14

Tecumseh Part# 34516

Piston-Pin & Ring Assy. (.020 Oversize) (Incl. #14A, 15 & 16)
Usually ships in 1 day

$

$79.96

0

14A

Tecumseh Part# 32538B

Piston & Pin Assy. (Std. ) (Incl. #16)
Usually ships in 8 to 14 days

$

$44.76

0

14A

Tecumseh Part# 32548B

Piston & Pin Assy. (.010 Oversize) (Incl. #16)
Usually ships in 8 to 14 days

$

$48.96

0

14A

Tecumseh Part# 32549B

Piston & Pin .020 O.S. (Incl. Ref. #25)
Usually ships in 8 to 14 days

$

$50.00

0

15

Tecumseh Part# 28986

Piston Ring Set Std.
Usually ships same day

Not available

$

$

15

Tecumseh Part# 28987

Piston Ring Set .010 O.S.
Usually ships in 8 to 14 days

$

$28.74

0

15

Tecumseh Part# 28988

Piston Ring Set .020 O.S.
Usually ships same day

Currently unavailable

$

$

16

Tecumseh Part# 20381

Ring-Retaining, Piston Pin
Usually ships in 1 day

$

$1.76

0

17

Tecumseh Part# 30963B

Rod Assy.-Connecting (Incl. #18)
Usually ships in 1 day

$

$29.26

0

18

Tecumseh Part# 32610A

Bolt-Rod, Connecting
Usually ships in 1 day

$

$1.76

0

21

Tecumseh Part# 27241

Lifter-Valve
Usually ships in 1 day

$

$5.44

0

22

Tecumseh Part# 33553

Camshaft(Mech.Comp. Release)
(Superseded to 35992)
Usually ships in 8 to 14 days

$

$72.26

0

23

Tecumseh Part# 29914

Oil Pump ASM
Usually ships in 1 day

$

$9.16

0

24

Tecumseh Part# 26750A

Gasket, Mounting
(Superseded to 37609)

Note: Indicates parts included in Gasket Set Ref. Num 152.

Usually ships in 1 day

$

$2.81

0

25

Tecumseh Part# 34831

Flange Assy.-Mounting (Incl. #26, 27, 28 & 31)
(Superseded to 34831A)
Usually ships same day

Currently unavailable

$

$

26
Usually ships in 1 day

$

$5.80

0

27

Tecumseh Part# 28833

Gasket-Oil Drain

Note: Indicates parts included in Gasket Set Ref. Num 152.

Usually ships in 1 day

$

$1.76

0

28

Tecumseh Part# 27244

Plug Oil Drain
(Superseded to 36083)
Usually ships in 1 day

$

$0.86

0

30

Tecumseh Part# 30590A

Washer-Flat
Usually ships in 1 day

$

$4.04

0

31

Tecumseh Part# 30574

Shaft-Governor
(Superseded to 30574A)
Usually ships in 1 day

$

$7.00

0

32

Tecumseh Part# 650488

Screw (1/4-20 x 1-1/4)
Usually ships in 1 day

$

$1.76

0

33

Tecumseh Part# 30591

Gear Assy.-Governor (Incl. #30)
Usually ships in 1 day

$

$13.90

0

34

Tecumseh Part# 29193

Ring-Retaining
Usually ships in 1 day

$

$1.76

0

35

Tecumseh Part# 30588A

Spool-Governor
Usually ships in 1 day

$

$1.76

0

37

Tecumseh Part# 30589

Rod-Governor (Incl. #38)
Usually ships in 1 day

$

$5.44

0

38

Tecumseh Part# 28277

Washer-Flat
Usually ships in 1 day

$

$1.76

0

39

Tecumseh Part# 31383A

Governor Lever
Usually ships in 1 day

$

$1.72

0

40

Tecumseh Part# 650548

Screw
(Superseded to 651018)
Usually ships in 1 day

$

$1.66

0

41

Tecumseh Part# 31335

Clamp-Lever, Governor
Usually ships in 1 day

$

$1.76

0

42

Tecumseh Part# 611004

Key-Flywheel
Usually ships in 1 day

$

$1.54

0

43
Usually ships in 8 to 14 days

$

$1.76

0

46

Tecumseh Part# 29953B

Gasket-Cylinder Head
(Superseded to 29953C)

Note: Indicates parts included in Gasket Set Ref. Num 152.

Usually ships in 1 day

$

$16.80

0

47

Tecumseh Part# 34335

2025A67 ADD.ASSEMBL
(Superseded to 36474)
Usually ships in 8 to 14 days

$

$33.58

0

48

Tecumseh Part# 6021A

Screw (5/16-18x1-1/2)
Usually ships in 1 day

$

$1.76

0

51

Tecumseh Part# 35078

Plug, Spark (Autolite 458, Champion J-19LM or equiv.)
(Superseded to 35395)
Usually ships in 1 day

$

$3.02

0

52

Tecumseh Part# 27234

Gasket-Breather
(Superseded to 27234A)

Note: Indicates parts included in Gasket Set Ref. Num 152.

Usually ships in 1 day

$

$2.46

0

53

Tecumseh Part# 32755

Cover-Valve
Usually ships in 8 to 14 days

$

$5.30

0

Usually ships in 1 day

$

$5.04

0

55

Tecumseh Part# 34449

Cup-Starter
(Superseded to 34449A)
Usually ships in 1 day

$

$10.56

0

56

Tecumseh Part# 35009

Screen-Starter
Usually ships in 1 day

$

$3.66

0

57

Part#

Pop Rivet (Can be purchased locally)
Usually ships same day

Not available

$

$

58

Tecumseh Part# 34985

Retainer-Starter Rope
(Superseded to 36412)
Usually ships in 8 to 14 days

$

$1.24

0

59

Tecumseh Part# 34690

Gasket-Intake
(Superseded to 34690A)

Note: Indicates parts included in Gasket Set Ref. Num 152.

Usually ships in 1 day

$

$4.20

0

60

Tecumseh Part# 31384A

Pipe-Intake (Incl. #59)
Usually ships in 1 day

$

$21.02

0

61

Tecumseh Part# 650451

Screw (1/4-20 x 1)
Usually ships in 1 day

$

$1.76

0

62

Tecumseh Part# 34144

Decal-Primer
Usually ships in 8 to 14 days

$

$1.40

0

68

Tecumseh Part# 33131

A Control Assy.-Remote Speed (Incl. #69-72)
(Superseded to 33131A)
Usually ships in 8 to 14 days

$

$19.40

0

69

Tecumseh Part# 33802

61709/GIL1515A/95-5
(Superseded to 36482)
Usually ships in 1 day

$

$1.70

0

70

Tecumseh Part# 650777

Screw
(Superseded to 651019)
Usually ships in 1 day

$

$1.70

0

71

Tecumseh Part# 31342

Spring-Compression
Usually ships in 1 day

$

$1.66

0

72

Tecumseh Part# 650549

Screw
(Superseded to 651029)
Usually ships in 1 day

$

$1.70

0

73

Tecumseh Part# 30200

Screw (10-24 x 9/16)
Usually ships in 1 day

$

$1.24

0

Usually ships in 1 day

$

$1.76

0

75

Tecumseh Part# 28942

Screw (10-32 x 3/8)
Usually ships in 1 day

$

$1.24

0

78

Tecumseh Part# 31361

Spring Governor
Usually ships in 1 day

$

$1.66

0

79

Tecumseh Part# 34337

2035A67 ADD.ASSEMBL
Usually ships in 1 day

$

$1.76

0

80

Tecumseh Part# 34336

Link-Throttle
(Superseded to 34336A)
Usually ships in 1 day

$

$1.72

0

83

Tecumseh Part# 26756

Gasket

Note: Indicates parts included in Gasket Set Ref. Num 152.

Usually ships in 1 day

$

$2.78

0

84

Tecumseh Part# 34961

Ground Wire
(Superseded to 37047)
Usually ships in 1 day

$

$1.76

0

85

Tecumseh Part# 6201

Screw (1/4-28 x 7/8)
Usually ships in 1 day

$

$1.76

0

86

Tecumseh Part# 29752

Nut and Lock Washer (1/4-28)
Usually ships in 1 day

$

$1.76

0

89

Tecumseh Part# 610118

Cover-Spark Plug
Usually ships in 1 day

$

$3.74

0

90

Tecumseh Part# 34443A

Lamination & Coil Assy. (Solid State) (Incl. #89)
(Superseded to 34443D)
Usually ships in 1 day

$

$44.94

0

91

Tecumseh Part# 650814

Screw
(Superseded to 651007)
Usually ships in 1 day

$

$1.64

0

92

Tecumseh Part# 34214A

Breather Assy. (Incl. #93-96)
(Superseded to 34214B)
Usually ships in 1 day

$

$15.56

0

93

Tecumseh Part# 33734

Element-Breather
Usually ships in 1 day

$

$1.70

0

94

Tecumseh Part# 33735

Gasket-Breather
Usually ships in 1 day

$

$1.70

0

95

Tecumseh Part# 33886

Tube, Breaker
Usually ships in 1 day

$

$7.02

0

96

Tecumseh Part# 30200

Screw (10-24 x 9/16)
Usually ships in 1 day

$

$1.24

0

97

Tecumseh Part# 30200

Screw (10-24 x 9/16)
Usually ships in 1 day

$

$1.24

0

98

Tecumseh Part# 34936

Housing-Blower
Usually ships in 8 to 14 days

$

$50.74

0

99

Tecumseh Part# 650831

Screw (1/4-20 x 1/2)
Usually ships in 1 day

$

$1.68

0

100

Tecumseh Part# 28763

Screw (10-32 x 35/64)
Usually ships in 1 day

$

$1.62

0

101

Tecumseh Part# 34476

Tank Assy.-Fuel (Incl. #102)
(Superseded to 34476A)
Usually ships in 8 to 14 days

$

$30.60

0

102
Usually ships in 1 day

$

$7.44

0

103

Tecumseh Part# 26460

Clamp-Line, Fuel
Usually ships in 1 day

$

$1.49

0

105

Tecumseh Part# 34682

Line-Fuel
(Superseded to 30705)
Usually ships in 1 day

$

$7.30

0

106

Tecumseh Part# 650815

Washer-Belleville
Usually ships in 1 day

$

$1.76

0

107

Tecumseh Part# 650816

Nut-Flywheel
Usually ships in 1 day

$

$1.76

0

108

Tecumseh Part# 34264

Tube-Oil Fill
Usually ships in 1 day

$

$9.22

0

Usually ships in 1 day

$

$2.10

0

110

Tecumseh Part# 650562

Screw (10-32 x 1/2)
Usually ships in 1 day

$

$1.68

0

111

Tecumseh Part# 34281

Dipstick-Oil (Incl. #112)
(Superseded to 34267)
Usually ships in 1 day

$

$11.70

0

Usually ships in 1 day

$

$1.76

0

116

Tecumseh Part# 34338

Gasket-Cleaner, Air

Note: Indicates parts included in Gasket Set Ref Num 152

Usually ships in 1 day

$

$1.72

0

117

Tecumseh Part# 34341

Cover Air Cleaner
(Superseded to 34341B)
Usually ships in 1 day

$

$5.44

0

118

Tecumseh Part# 34340

Filter-Air Cleaner
Usually ships in 1 day

$

$4.75

0

119

Tecumseh Part# 34858

Body Air cleaner
Usually ships in 8 to 14 days

$

$9.16

0

Usually ships in 1 day

$

$1.64

0

121

Tecumseh Part# 27181B

Muffler (Incl. #122)
(Superseded to 27181C)
Usually ships in 1 day

$

$10.06

0

Usually ships in 1 day

$

$1.76

0

123

Tecumseh Part# 32431

Cover-Muffler
Usually ships in 8 to 14 days

$

$5.30

0

124

Tecumseh Part# 650643

Screw
(Superseded to 650760)
Usually ships in 1 day

$

$1.64

0

125

Tecumseh Part# 611046

Flywheel
(Superseded to 611046A)
Usually ships in 8 to 14 days

$

$94.44

0

Usually ships in 1 day

$

$1.76

0

139

Tecumseh Part# 650839

Screw (1/4-20 x 3/8)
Usually ships in 1 day

$

$1.68

0

141

Tecumseh Part# 35015

Bracket Assy.
(Superseded to 35015B)
Usually ships in 8 to 14 days

$

$31.62

0

142

Tecumseh Part# 34965

Spring-Extension
Usually ships in 1 day

$

$3.66

0

143

Tecumseh Part# 34966

Link-Control
Usually ships in 1 day

$

$1.70

0

144

Tecumseh Part# 32309

Ring-Retaining
Usually ships in 1 day

$

$1.72

0

145

Tecumseh Part# 34968

Lever-Brake
(Superseded to 35831)
Usually ships in 8 to 14 days

$

$12.26

0

146
Usually ships in 8 to 14 days

$

$3.64

0

147

Tecumseh Part# 650837

Screw-Hex. Hd.
Usually ships in 1 day

$

$1.68

0

150

Tecumseh Part# 632098

Carburetor (Incl. #83)
(Superseded to 632795A)
Usually ships in 1 day

$

$109.20

0

151

Tecumseh Part# 590420A

tarter-Rewind
Usually ships in 1 day

$

$70.00

0

152

Tecumseh Part# 33238C

Gasket Set (Incl. Items Marked )
(Superseded to 33238E)

Note: Indicates parts included in Gasket Set Ref Num 152

Usually ships in 1 day

$

$22.42

0
