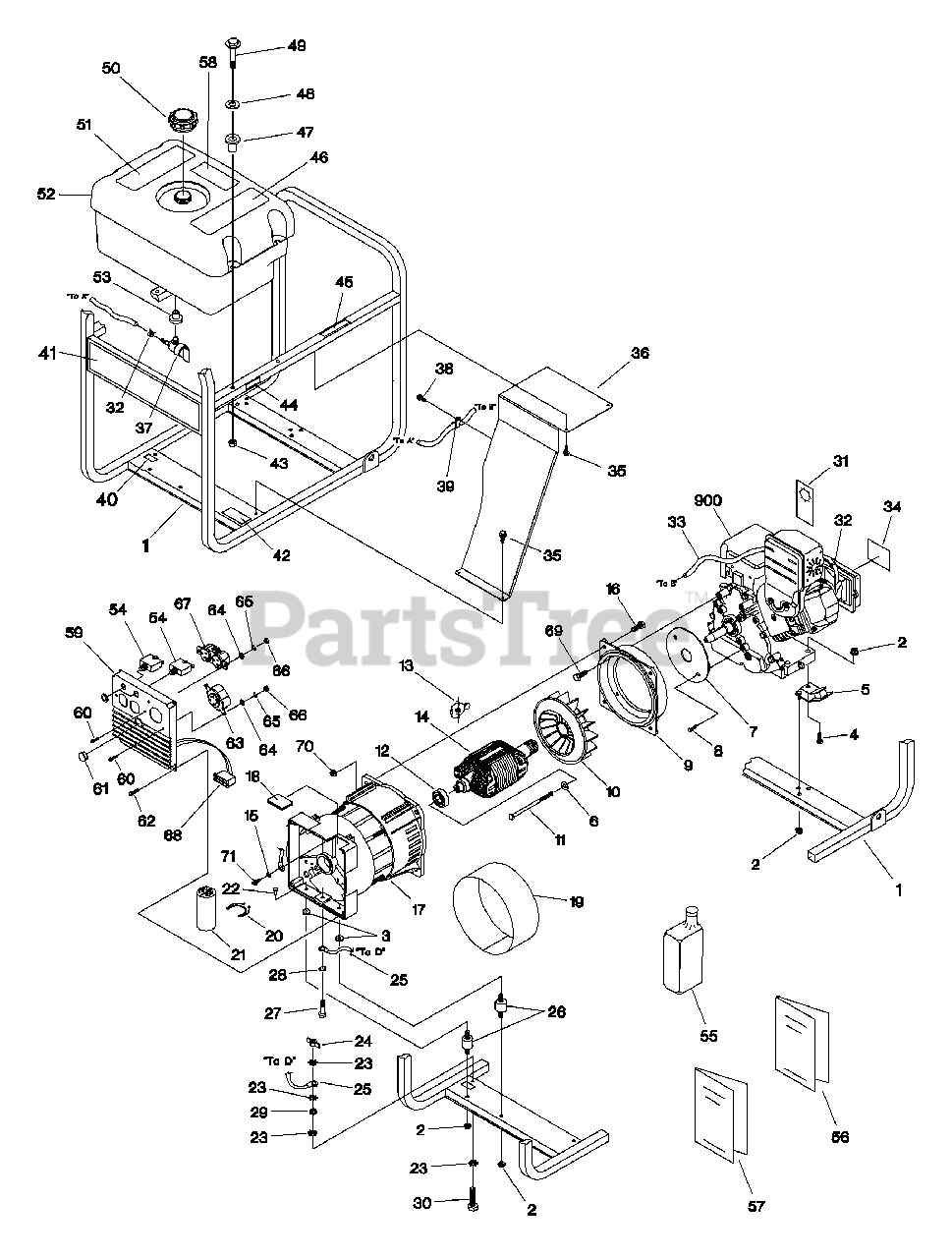

1658-0 - Generac 5,000 Watt Portable Generator Main Unit Parts Diagram

5,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B189553GS

CRADLE

$

$

Currently unavailable

2

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 20+

0

3

Briggs & Stratton 189626GS

SPACER

$

$

Currently unavailable

4

Briggs & Stratton 84346GS

PPHMS, M8 -1.25 x 35 mm
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 70642GS

MOUNT,Vibration 45 Deg.

$31.99

$

In Stock, only 3 left!

0

6

Briggs & Stratton 96796GS

WASHER, 22.2 OD X 8.4 ID x 3

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton BB4260GS

DISK, Engine Air

$

$

Currently unavailable

8

Briggs & Stratton 86307GS

HHCS, 5/16 x 3/4, SEMS

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 189750GS

ADAPTER, Engine/Alt, Sincro

$57.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 189749GS

FAN, Sincro

$

$

Currently unavailable

11

Briggs & Stratton 189825GS

HHCS, 5/16 - 24 x 7 1/2"

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 189757GS

BEARING, Ball

$

$

Currently unavailable

13

Briggs & Stratton A1816GS

ASSEMBLY, Diode/Varistor

$24.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 189751GS

ROTOR, Sincro
(Superseded to 191311GS)

$291.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 23762GS

WASHER, Shakeproof #10

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 39253GS

HHCS, M8 - 1.25 x 20

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 189752GS

STATOR, Sincro
(Superseded to 191311GS)

$291.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 189758GS

COVER, RBC Opening

$11.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 189755GS

COVER, Stator

$33.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 189754GS

CLIP, Capacitor

$8.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton A1817AGS

CAPACITOR, 35, UF

$159.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 189824GS

CAP, M8 THD

$4.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 26850GS

WASHER, M6 Shakeproof

$2.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 87680GS

WING NUT, M6 - 1.0

$7.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 19553621GS

WIRE, Ground

$7.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 85652GS

MOUNT,Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 12

0

27

Briggs & Stratton 42907GS

CAPSCREW, M8 - 1.25 x 16

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 27482GS

WASHER, 5/16" Shakeproof

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 49813GS

NUT, Hex M6 - 1.0

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 45757GS

HHCS, M6 - 1.0 x 25

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 70453GS

TAG, Oil Warning

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 48031CGS

CLAMP, Hose 1/2"
(Superseded to 691038)

$3.99

$

In Stock, Qty 6

0

33

Briggs & Stratton 189867CGS

HOSE, 1/4" x 21" I.D. SAE-30R7

$

$

Currently unavailable

34

Briggs & Stratton 189878GS

DECAL,Air Cleaner

$

$

Currently unavailable

35

Briggs & Stratton B2153GS

SCREW, Self Drill 12-14 x 7/8"

$4.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton J189055GS

HEAT SHIELD, Muffler

$66.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 80270GS

VALVE, Fuel
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

38

Briggs & Stratton 56893GS

CRIMPTITE, #10-24 x 1/2"

$3.49

$

In Stock, only 1 left!

0

39

Briggs & Stratton 55934GGS

CLAMP,Vinyl Coated

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

41

Briggs & Stratton 189637GS

DECAL, Panel

$

$

Currently unavailable

42

Briggs & Stratton 20566GS

DECAL, 1-800

$1.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 77395GS

NUT, M6 Flange Lock

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 73054GS

DECAL, Fuel Shut-Off

$8.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 77816GS

DECAL, Caution Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 189235GS

DECAL, Start Instruction

$19.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 188973GS

GROMMET, Mounting Tank

$3.99

$

In Stock, only 1 left!

0

48

Briggs & Stratton 189155GS

WASHER, Flat, 6.6 x 21.6 x 1.9

$9.49

$

In Stock, only 1 left!

0

49

Briggs & Stratton 189286GS

HHCS, M6 -1.0 x 45

$3.49

$

In Stock, only 1 left!

0

50

Briggs & Stratton 90878GS

CAP, Fuel

$

$

Not available

51

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 188797GS

TANK, Fuel, 5 Gallon
(Superseded to 193961GS)

Note: (Includes Items 37 & 53)

$

$

Not available

53

Briggs & Stratton 78299GS

BUSHING, Fuel Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

54

Briggs & Stratton 75207GS

BREAKER, Circuit, 20 Amp
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton BB3061GS

OIL BOTTLE

$13.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 189633GS

MANUAL, Generator

$14.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 188826GS

MANUAL, Engine
(Superseded to 275092GS)

$11.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 188333GS

DECAL, Gas Tank Fill

$23.99

$

In Stock, only 1 left!

0

59

Briggs & Stratton 189624GS

PANEL, Control, Sincro

$67.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 75475GS

PPHMS, M4 - 0.7 x 10

$3.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton B4911GS

CAP

$4.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 91526GS

PPMS, M5 - .8 x 12

$3.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 68867GS

OUTLET, 120/240V 20A Locking

$46.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 22985GS

WASHER, M4 Flat

$1.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 22264GS

WASHER, M4 Lock

$2.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 51715GS

NUT, M4 - 0.7

$2.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 68759GS

OUTLET, 120V/20A, Duplex

$24.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 189625GS

HARNESS, Wire, Sincro

$

$

Currently unavailable

69

Briggs & Stratton 29745GS

HHCS, 3/8" - 16 x 1

$3.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 49820GS

NUT, Nylok, M8 - 1.25

$3.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE

$

$

Not available
