16580 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) Carburetor Assembly Parts Diagram

Walk-Behind Mower

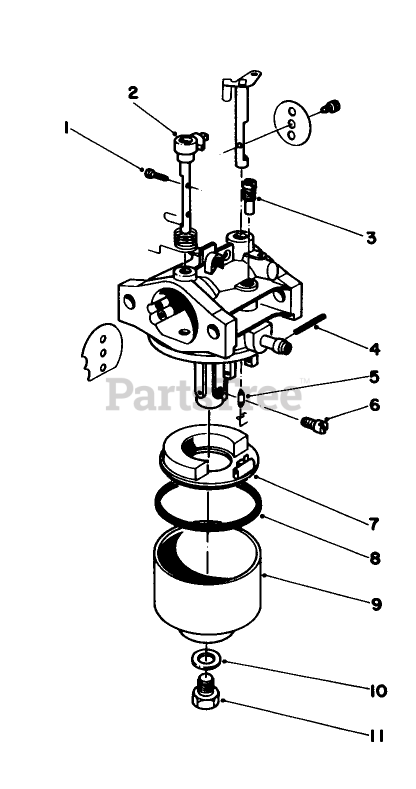

Carburetor Assembly Parts Diagram

  • Title

1

Toro 81-0990

DISCONTINUED

$

$

Not available

2

Toro 81-1650

THROTTLE SHAFT

$

$

Not available

3

Toro 81-1030

PILOT JET

$36.99

$

Usually ships in 3-6 days

0

4

Toro 81-0980

See Supercession: 81-2600
(Superseded to 81-2600)

$8.99

$

Usually ships in 3-6 days

0

5

Toro 81-1600

NEEDLE VALVE ASM

$

$

Not available

6

Toro 81-1040

MAIN JET

$31.99

$

Usually ships in 3-6 days

0

Toro 81-1050

DISCONTINUED

Note: Not illustrated

$

$

Not available

7

Toro 81-0970

FLOAT

$64.99

$

Usually ships in 3-6 days

0

8

Toro 81-1010

GASKET

$20.99

$

Usually ships in 3-6 days

0

9

Toro 81-1610

See Supercession: 81-5660
(Superseded to 81-5660)

$74.99

$

Usually ships in 3-6 days

0

10

Toro 81-1020

GASKET

$

$

Not available

11

Toro 81-1000

See Supercession: 81-5670
(Superseded to 81-5670)

$15.99

$

Usually ships in 3-6 days

0

Toro 81-1620

See Supercession: 99-5277
(Superseded to 99-5277)

Note: Not illustrated

$

$

Not available

Toro 81-0960

See Supercession: 81-4900
(Superseded to 81-4900)

Note: Not illustrated

$

$

Not available
