16585 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) Handle Assembly Parts Diagram

Walk-Behind Mower

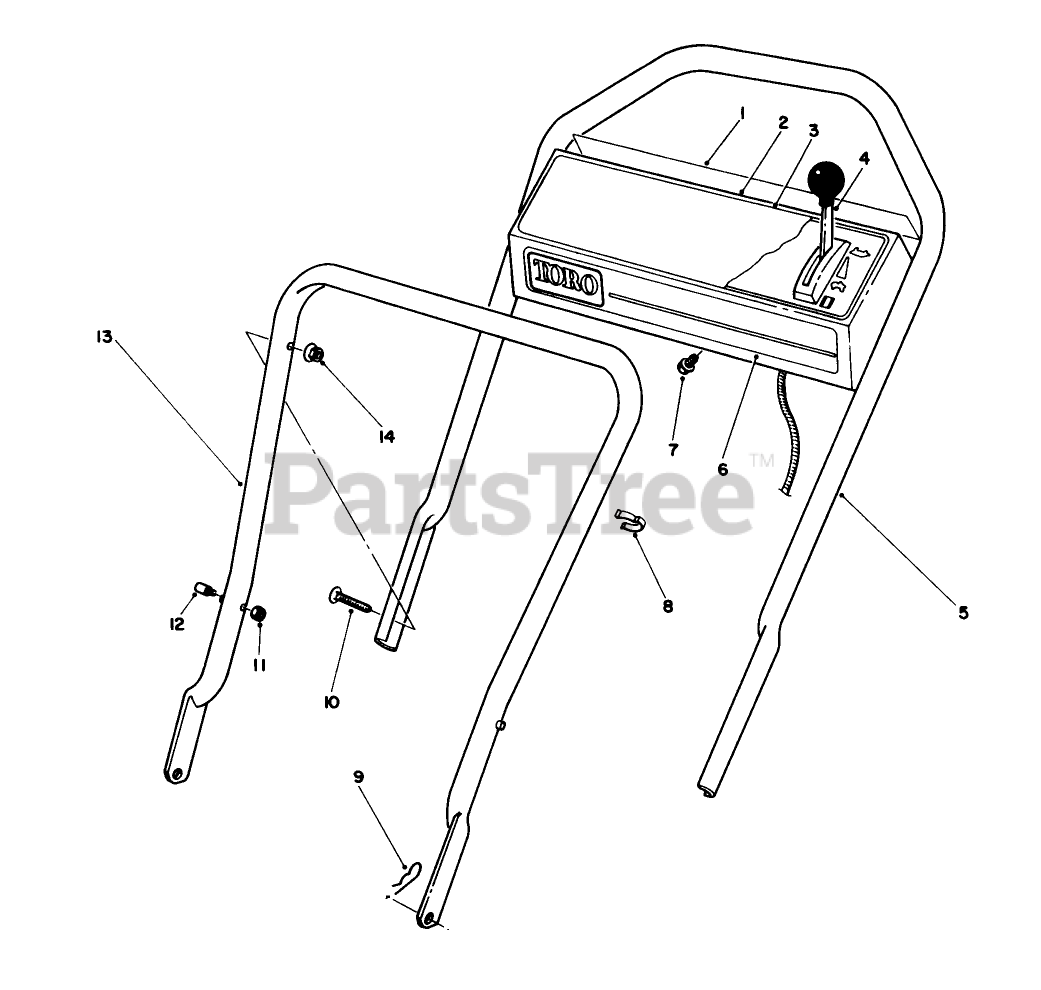

Handle Assembly Parts Diagram

  • Title

1

Toro 66-1790

See Supercession: 93-6655
(Superseded to 93-6655)

$

$

Not available

2

Toro 13-2449

DISCONTINUED

$

$

Not available

3

Toro 66-1830

DISCONTINUED

$

$

Not available

4

Toro 49-4193

THROTTLE CONT-SERVICE

$90.99

$

Usually ships in 3-6 days

0

5

Toro 46-5411

DISCONTINUED
(Superseded to 84-8332)

$

$

Not available

6

Toro 66-1770

DISCONTINUED

$

$

Not available

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

8

Toro 218-465

BOWDEN CLIP

$

$

Not available

9

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

10

Toro 17-9424

DISCONTINUED
(Superseded to 6-6330)

$

$

Not available

11

Toro 329647

Locknut

$

$

Currently unavailable

12

Toro 49-2750

HANDLE PIN

$38.99

$

Usually ships in 3-6 days

0

13

Toro 49-1690

LOWER HANDLE ASM

$

$

Not available

14

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0
