16585 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) ENGINE ASSEMBLY (MODEL NO. 47PG6) (USED ON UNITS WITH SERIAL NO. 7002105 & UP) Parts Diagram

Walk-Behind Mower

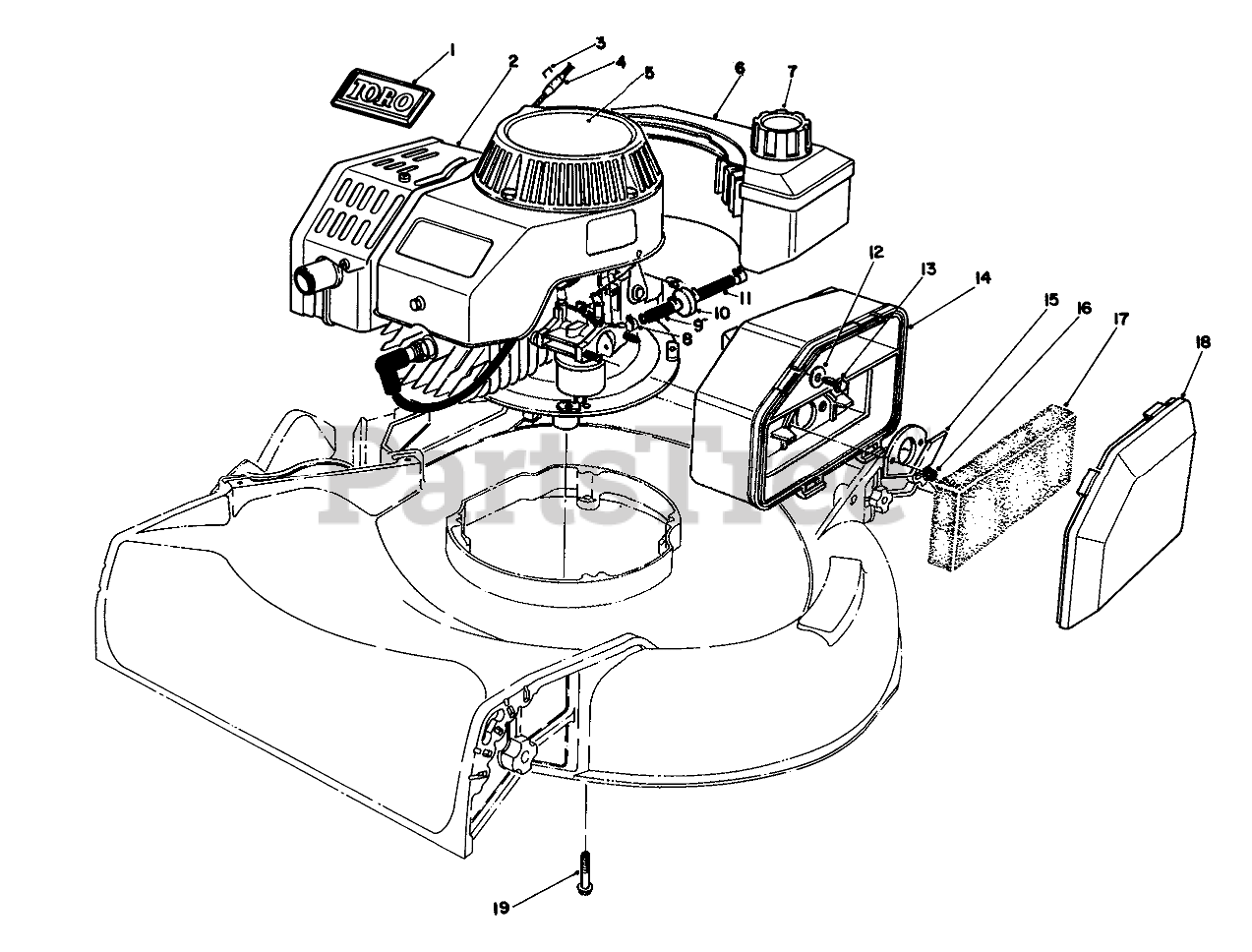

ENGINE ASSEMBLY (MODEL NO. 47PG6) (USED ON UNITS WITH SERIAL NO. 7002105 & UP) Parts Diagram

  • Title

1

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$1.99

$

In Stock, only 2 left!

0

2

Toro 51-0412

Engine
(Superseded to 12-8099)

$

$

Not available

3

Staple

Note: Obtain Locally

$

$

Not available

4

Toro 47-2480

STOP-ROPE

$

$

Not available

5

Toro 57-9870

DECAL

$

$

Not available

6

Toro 81-0162

FUEL TANK ASM
(Superseded to 99-5263)

$

$

Not available

7

Toro 55-3575

GAS CAP ASM

$17.99

$

In Stock, only 3 left!

0

8

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 14

0

9

Toro 51-3216

HOSE-FUEL

$5.49

$

In Stock, Qty 5

0

10

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

11

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

12

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 51-2690

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

14

Toro 81-0110

AIR CLEANER

$

$

Not available

15

Toro 81-0140

SPIT BACK DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

16

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

17

Toro 81-0100

FILTER

$9.49

$

In Stock, only 4 left!

0

18

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

19

Toro 3234-20

FLG SCREW,3/8-16X2.000
(Superseded to 66-9302)

$4.99

$

Usually ships in 3-6 days

0
