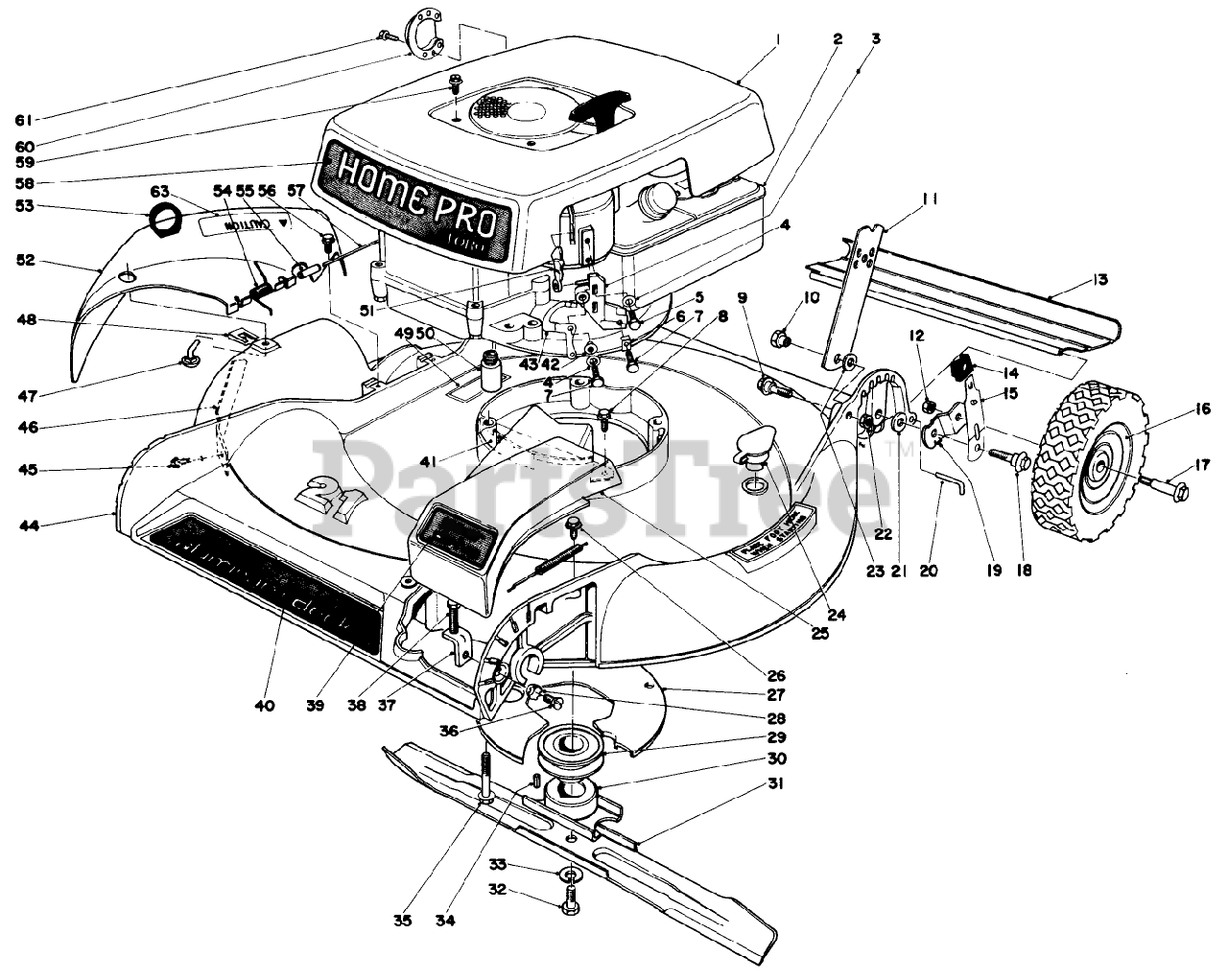

16655 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) Housing And Engine Assembly Parts Diagram

Walk-Behind Mower

Housing And Engine Assembly Parts Diagram

  • Title

1

Toro 28-1340

DISCONTINUED

$

$

Not available

2

Toro 221-537

Engine

$

$

Currently unavailable

3

Toro 27-9280

DISCONTINUED

$

$

Not available

4

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 3214419

Screw

$

$

Currently unavailable

6

Toro 2412-63

DISCONTINUED

$

$

Not available

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

8

Toro 12-5450

SCREW

$10.99

$

Usually ships in 3-6 days

0

9

Toro 27-7210

SCREW-SHOULDER

$8.49

$

In Stock, Qty 7

0

10

Toro 27-6520

HANDLE PIVOT NUT

$10.99

$

Usually ships in 3-6 days

0

11

Toro 27-7080

HANDLE LATCH

$

$

Not available

12

Toro 32146-6

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 10

0

13

Toro 28-3780

DISCONTINUED

$

$

Not available

14

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

15

Toro 25-7890

SPRING ARM ASM

$

$

Not available

16

Toro 12-2620

DISCONTINUED
(Superseded to 99-5256)

$

$

Not available

17

Toro 3-2652

Bolt

$

$

Not available

18

Toro 12-2440

PIVOT SCREW

$25.99

$

In Stock, only 1 left!

0

19

Toro 20-3190

PIVOT ARM PLATED

$

$

Not available

20

Toro 33-3201

SHIELD ROD

$

$

Not available

21

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 6

0

22

Toro 32146-5

See Supercession: 32153-3
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

23

Toro 27-6510

HANDLE LATCH SPACER

$

$

Not available

24

Toro 6-4500

WASHOUT PLUG

$

$

Not available

25

Toro 28-4610

DISCONTINUED

$

$

Not available

26

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

27

Toro 19-4040

DISCONTINUED

$

$

Not available

28

Toro 3255-12

DISCONTINUED

$

$

Not available

29

Toro 23-0130

See Supercession: 93-0278
(Superseded to 93-0278)

$53.99

$

Usually ships in 3-6 days

0

30

Toro 20-2750

See Supercession: 49-7890
(Superseded to 49-7890)

$

$

Not available

31

Toro 8-5230

See Supercession: 8-5230-03
(Superseded to 8-5230-03)

$41.99

$

Usually ships in 3-6 days

0

32

Toro 3-5246

DISCONTINUED

$

$

Not available

33

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

34

Toro 27-6300

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

35

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$

$

Not available

36

Toro 32108-20

SCREW

$0.99

$

Usually ships in 3-6 days

0

37

Toro 25-7560

DISCONTINUED

$

$

Not available

38

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 28-4620

DISCONTINUED

$

$

Not available

40

Toro 28-4630

DISCONTINUED

$

$

Not available

41

Toro 27-7470

HOUSING CAP

$

$

Not available

42

Toro 25-0520

BUSHING

$37.99

$

Usually ships in 3-6 days

0

43

Toro 25-8150

DISCONTINUED

$

$

Not available

44

Toro 8-1859

Housing (Incl. Ref. #40 49)

$

$

Currently unavailable

45

Toro 32104-44

DISCONTINUED

$

$

Not available

46

Toro 12-2990

DISCONTINUED

$

$

Not available

47

Toro 28-3260

BAG CHUTE PIN

$

$

Not available

48

Toro 28-3250

BAG CHUTE CLIP PIN

$

$

Not available

49

Toro 29-6090

DISCONTINUED

$

$

Not available

50

Toro 19-4030

DISCONTINUED

$

$

Not available

51

Toro 25-0350

INTERLOCK LEVER

$

$

Not available

52

Toro 36-2970

DISCONTINUED

$

$

Not available

53

Toro 28-1430

LIFT LOOP

$

$

Not available

54

Toro 28-1560

DISCONTINUED

$

$

Not available

55

Toro 28-3270

DISCONTINUED

$

$

Not available

56

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 9

0

57

Toro 3-2644

DISCONTINUED

$

$

Not available

58

Toro 28-4650

DISCONTINUED

$

$

Not available

59

Toro 32104-94

DISCONTINUED

$

$

Not available

60

Toro 2210-184

DISCONTINUED

$

$

Not available

61

Toro 2210-173

DISCONTINUED

$

$

Not available

63

Toro 29-6070

DISCONTINUED

$

$

Not available

Toro 19-5790

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 25-9150

REPLACEMENT SERIAL PLT

Note: Not illustrated

$20.99

$

Usually ships in 3-6 days

0
