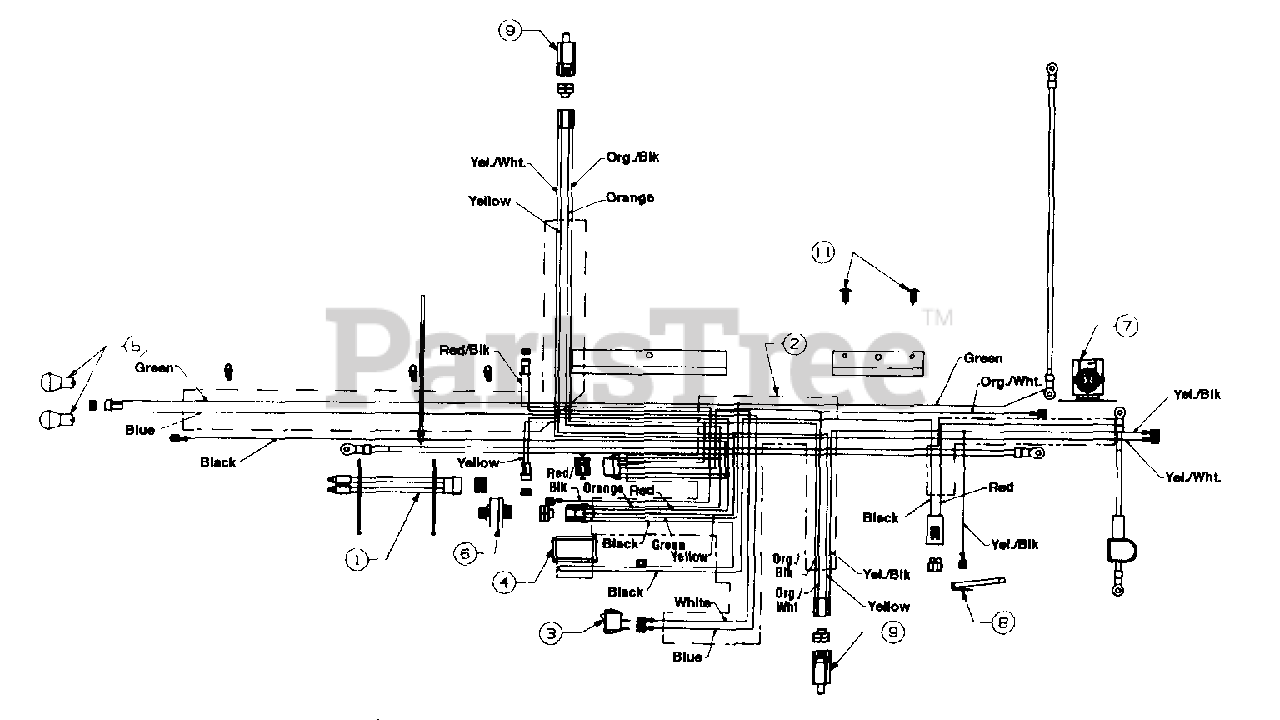

1670874 (136M695G352) - MTD Lawn Tractor (1996) (Walmart) Electrical/Switches Parts Diagram

Lawn Tractor

Electrical/Switches Parts Diagram

  • Title

1

MTD 629-0132

Wire Harness (Monitor)

$

$

Not available

2

MTD 629-0306

Wire Harness w/Light Switch, Amp and Monitor
(Superseded to 929-0306E)

Note: New Part

$

$

Not available

MTD 629-0305

Wire Harness w/Light Switch and Amp
(Superseded to 929-0305E)

Note: New Part

$176.99

$

Usually ships in 3-6 days

0

MTD 629-0304

Wire Harness w/o Light Switch and Amp
(Superseded to 929-0304E)

Note: New Part

$

$

Not available

3

MTD 725-0634

Light Switch
(Superseded to 925-0634)

Note: (Optional)

$16.99

$

In Stock, Qty 5

0

4

MTD 725-0925

Ammeter
(Superseded to 925-0925)

Note: (Optional)

$28.99

$

Usually ships in 3-6 days

0

5

MTD 725-0963

Bulb (Headlight)
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

6

MTD 725-1396

Ignition Switch
(Superseded to 925-1396A)

$40.99

$

In Stock, Qty 15

0

7

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

8

MTD 725-1643

Safety Switch (Reverse)

$9.99

$

In Stock, only 1 left!

0

9

MTD 725-1657A

Safety Switch
(Superseded to 925-1657A)

$22.99

$

In Stock, Qty 14

0

?10

MTD 725-1711

Wire Retainer Clip

Note: New Part

$

$

Not available

11

MTD 726-3046

Ratchet

Note: New Part

$3.99

$

In Stock, Qty 20+

0
