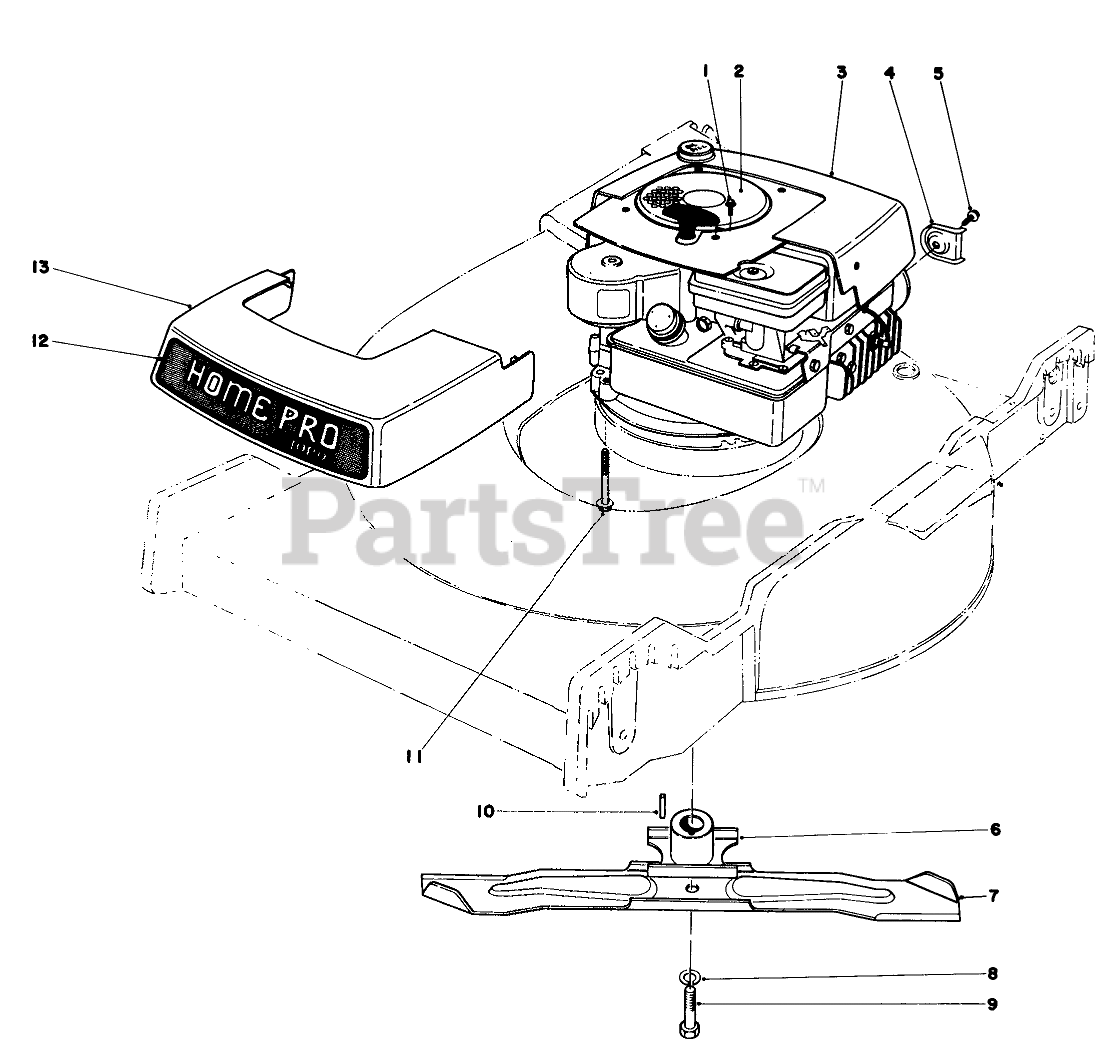

16711 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1977) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

2

Toro 221-562

Engine

$

$

Currently unavailable

3

Toro 28-7490

Shroud Rear

$

$

Not available

4

Toro 2210-129

Deflector

$

$

Not available

5

Toro 2210-128

Screw
(Superseded to 2210-173)

$

$

Not available

6

Toro 23-0110

BLADE RETAINER WA(BLACK)
(Superseded to 23-0110-03)

$

$

Not available

7

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$30.99

$

In Stock, Qty 7

0

8

Toro 3253-2

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 23-0080

BLADE SCREW

$31.99

$

Usually ships in 3-6 days

0

10

Toro 7-0036

KEY-SQUARE

$

$

Not available

11

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

12

Toro 28-4650

Decal Shroud

$

$

Not available

13

Toro 28-7480

Shroud Front

$

$

Not available
