16711 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

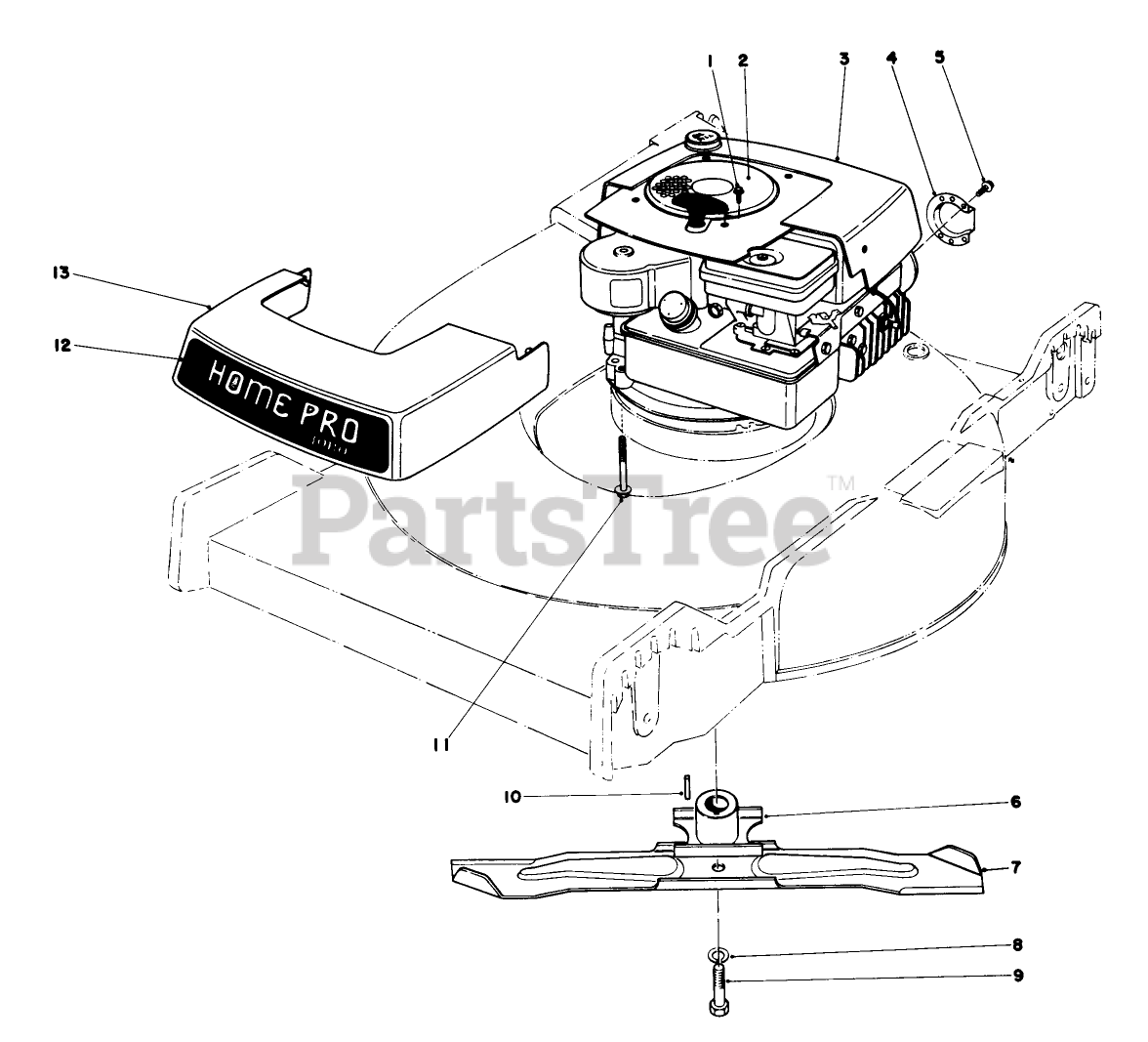

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

2

Toro 221-562

Engine

$

$

Currently unavailable

3

Toro 36-4130

Shroud Rear

$

$

Not available

4

Toro 2210-184

Deflector

$

$

Not available

5

Toro 2210-173

SCREW W/ENGINE

$

$

Not available

6

Toro 23-0110

BLADE RETAINER WA(BLACK)
(Superseded to 23-0110-03)

$

$

Not available

7

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$30.99

$

In Stock, Qty 7

0

8

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

9

Toro 23-0080

BLADE SCREW

$31.99

$

Usually ships in 3-6 days

0

10

Toro 7-0036

KEY-SQUARE

$

$

Not available

11

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

12

Toro 28-4650

Decal Shroud

$

$

Not available

13

Toro 36-4140

Shroud Front

$

$

Not available
