16711 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) STARTER & SHROUD ASSEMBLY MODEL 92908-1846-01 Parts Diagram

Walk-Behind Mower

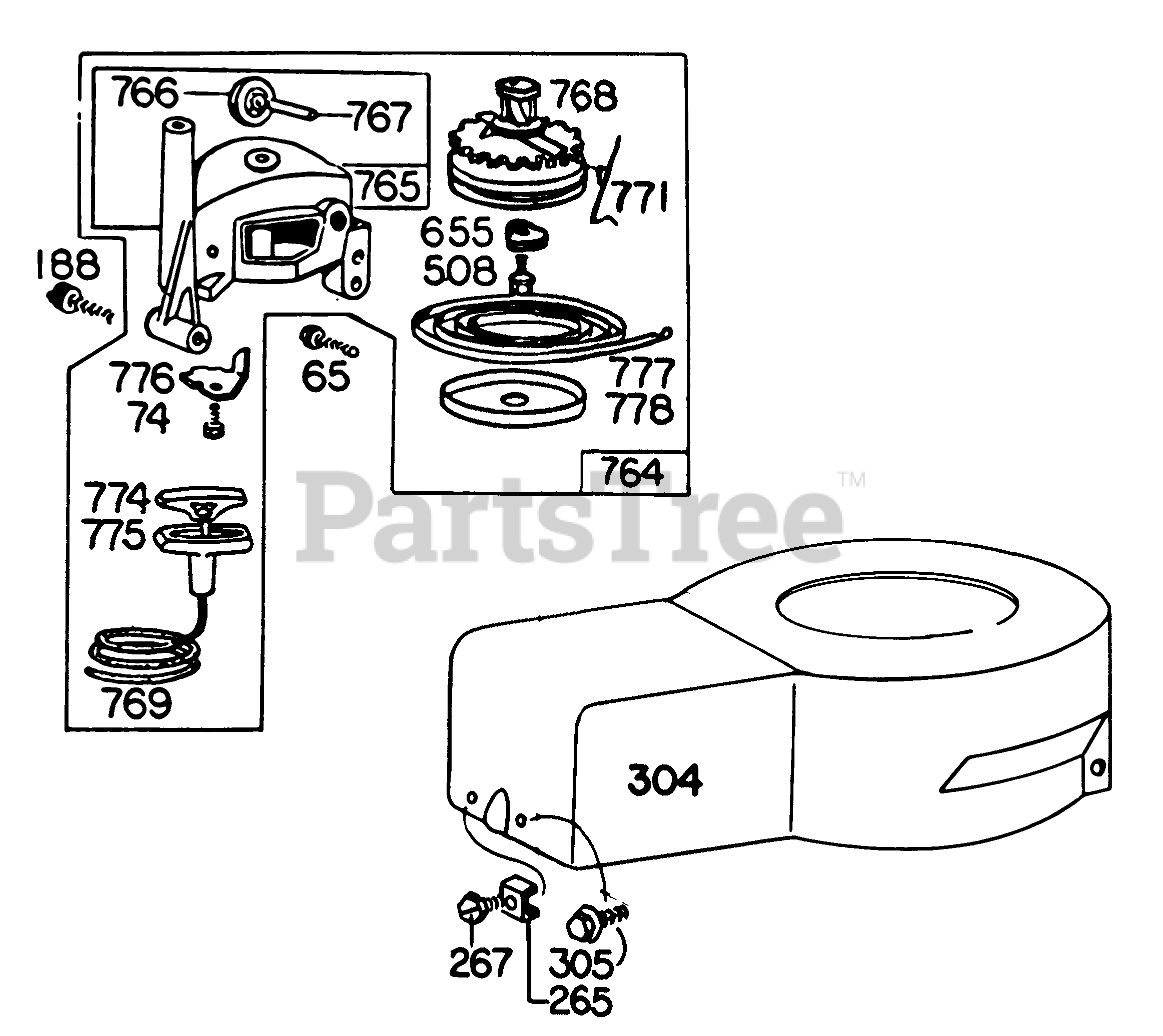

STARTER & SHROUD ASSEMBLY MODEL 92908-1846-01 Parts Diagram

  • Title

65

Briggs & Stratton 93587

Screw-Starter Mounting
(Superseded to 691083)

$5.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

188

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

265

Briggs & Stratton 22372

Clamp-Casing
(Superseded to 692179)

$4.49

$

In Stock, only 4 left!

0

267

Briggs & Stratton 93469

Screw
(Superseded to 691044)

$3.99

$

In Stock, Qty 9

0

304

Toro 299983

Housing-Blower

$

$

Currently unavailable

305

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, only 4 left!

0

508

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, only 2 left!

0

655

Briggs & Stratton 222057

Anchor-Spring

$6.99

$

Usually ships in 2-12 days

0

764

Briggs & Stratton 391486

Starter Ass-y-Vertical Pull
(Superseded to 396082)

$50.99

$

Usually ships in 2-12 days

0

765

Briggs & Stratton 299947

Housing, Vert. Pull Starter
(Superseded to 395914)

$55.99

$

Usually ships in 2-12 days

0

766

Briggs & Stratton 280022

Duct Body

$11.99

$

Usually ships in 2-12 days

0

767

Briggs & Stratton 231048

Pin-Small Rope Pulley

$3.49

$

Usually ships in 2-12 days

0

768

Briggs & Stratton 299948

Pulley and Gear Assy.

$22.99

$

Usually ships in 2-12 days

0

769

Briggs & Stratton 66734

Rope-Starter (48.6")

$6.49

$

Usually ships in 2-12 days

0

771

Briggs & Stratton 299961

Clip-Starter

$6.49

$

Usually ships in 2-12 days

0

774

Briggs & Stratton 280121

Insert-Starter Handle
(Superseded to 393152)

$4.99

$

In Stock, only 3 left!

0

775

Briggs & Stratton 280036

Grip-Starter Rope
(Superseded to 393152)

$4.99

$

In Stock, only 3 left!

0

776

Briggs & Stratton 222049

Guide Rope

$3.99

$

Usually ships in 2-12 days

0

777

Briggs & Stratton 390066

Spring-Starter

$20.99

$

In Stock, only 1 left!

0

778

Briggs & Stratton 280021

Cover-Starter

$6.49

$

Usually ships in 2-12 days

0
