16756 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1977) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

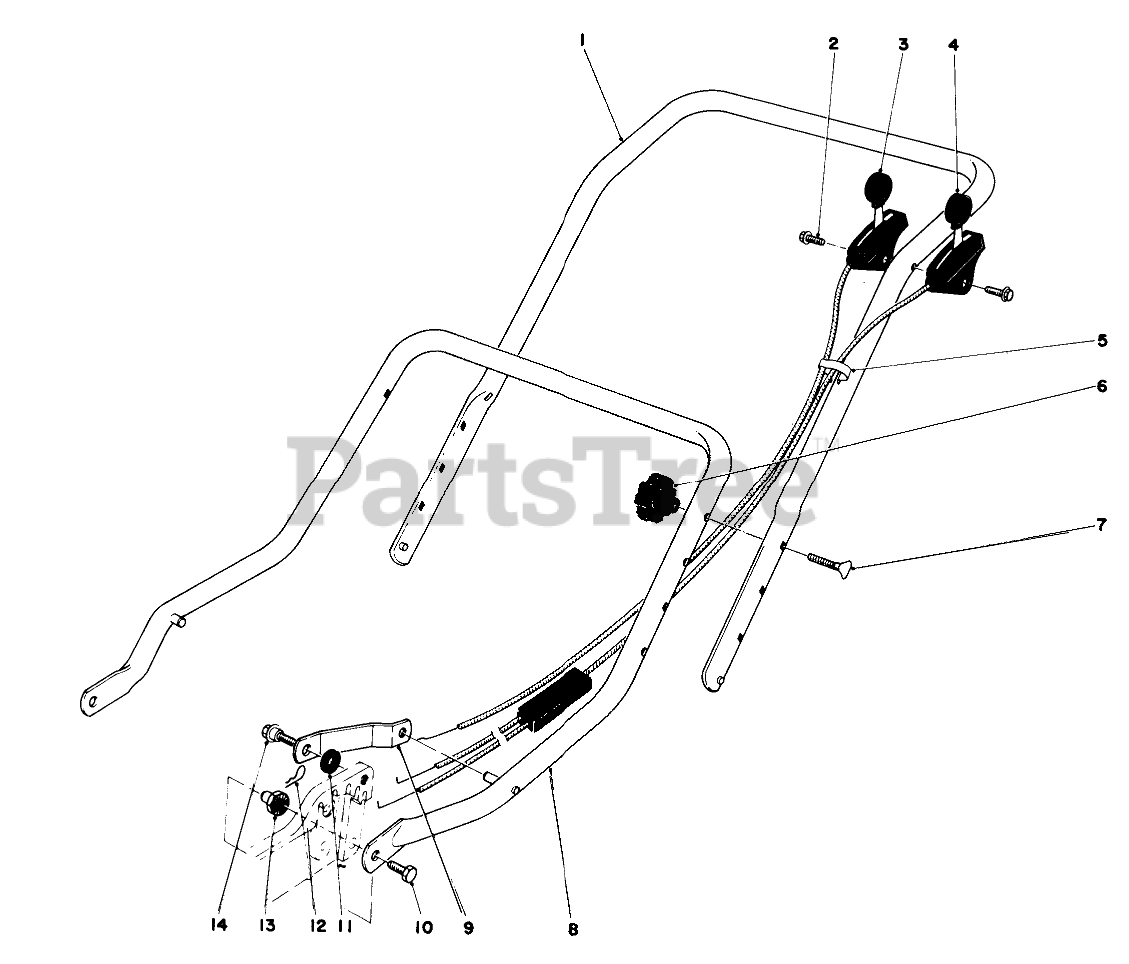

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 28-5430

Upper Handle

$

$

Not available

2

Toro 32144-22

SCREW

$0.99

$

Usually ships in 3-6 days

0

3

Toro 28-6170

Throttle Control
(Superseded to 46-6000)

$42.99

$

Usually ships in 3-6 days

0

4

Toro 28-6160

Traction Control
(Superseded to 46-6030)

$

$

Not available

5

Toro 218-465

BOWDEN CLIP

$

$

Not available

6

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

7

Toro 6-6330

HANDLE SCREW

$

$

Not available

8

Toro 26-0740

Lower Handle

$

$

Currently unavailable

9

Toro 26-0760

HANDLE LATCH

$

$

Not available

10

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 3-3287

SPACER

$5.49

$

In Stock, only 3 left!

0

12

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

13

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

14

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

Toro 6-8609

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
