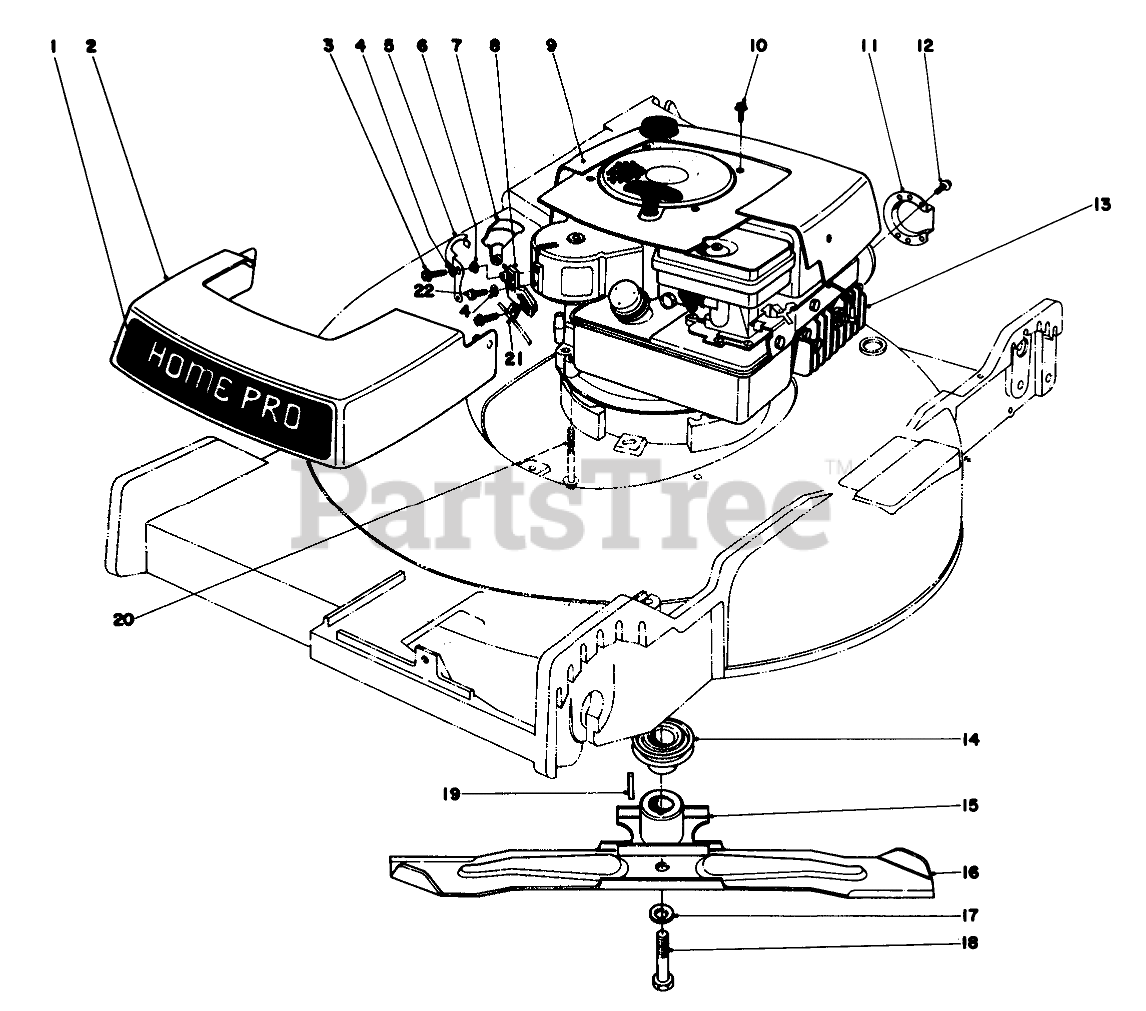

16756 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 28-4650

Decal Shroud

$

$

Not available

2

Toro 36-4140

Shroud Front

$

$

Not available

3

Toro 3210476

Screw

$

$

Currently unavailable

4

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 25-8150

CAM INTERLOCK

$

$

Not available

6

Toro 25-0520

BUSHING

$32.99

$

Usually ships in 3-6 days

0

7

Toro 25-0350

INTERLOCK LEVER

$

$

Not available

8

Toro 27-9280

CABLE & PIVOT BLOCK

$

$

Not available

9

Toro 36-4130

Shroud Rear

$

$

Not available

10

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

11

Toro 2210-184

Deflector

$

$

Not available

12

Toro 2210-173

SCREW W/ENGINE

$

$

Not available

13

Toro 221-549

Engine

$

$

Currently unavailable

14

Toro 21-5580

DRIVER PULLEY

$

$

Not available

15

Toro 23-0110

BLADE RETAINER WA(BLACK)
(Superseded to 23-0110-03)

$

$

Not available

16

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$30.99

$

In Stock, Qty 7

0

17

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

18

Toro 23-0080

BLADE SCREW

$31.99

$

Usually ships in 3-6 days

0

19

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

20

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

21

Toro 2412-63

CLAMP

$

$

Not available

22

Toro 32144-19

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0
