16770 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) Handle Assembly Parts Diagram

Walk-Behind Mower

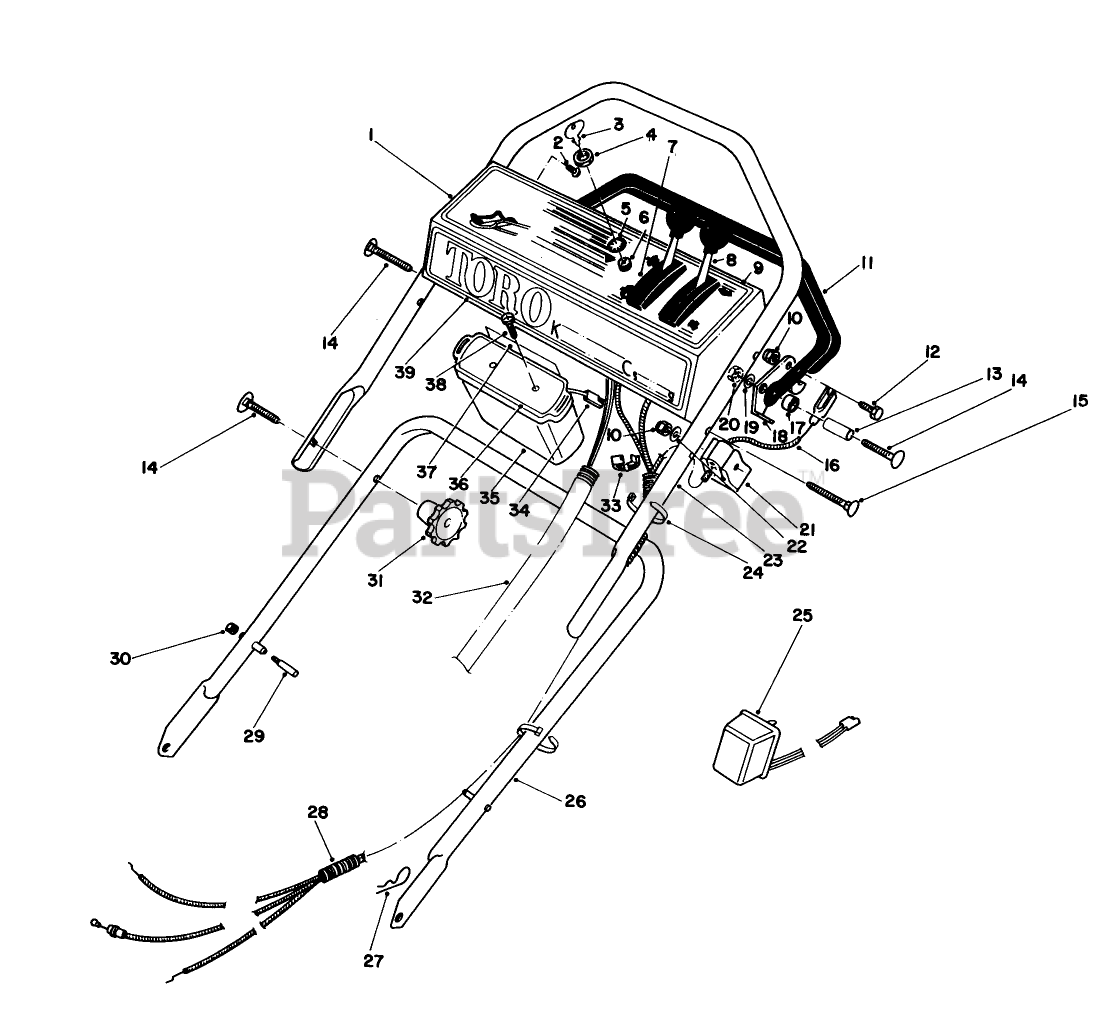

Handle Assembly Parts Diagram

  • Title

1

Toro 11-5139

DISCONTINUED

$

$

Not available

2

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

3

Toro 218-412

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 14

0

4

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

5

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 8

0

6

Toro 46-5780

STARTER SWITCH ASM

$31.99

$

In Stock, only 2 left!

0

7

Toro 46-6040

SERVICE TRACT. CONTROL

$

$

Not available

8

Toro 46-6010

SERVICE THROTTLE CONTRO

$

$

Not available

9

Toro 46-7430

DISCONTINUED

$

$

Not available

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 46-5560

DISCONTINUED
(Superseded to 52-7430-03)

$

$

Not available

12

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 46-5580

DISCONTINUED

$

$

Not available

14

Toro 17-9421

See Supercession: 92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

15

Toro 46-6432

SCREW-HANDLE

$15.99

$

Usually ships in 3-6 days

0

16

Toro 43-4531

BRAKE CABLE-SUZUKI

$

$

Not available

17

Toro 46-6240

DISCONTINUED

$

$

Not available

18

Toro 46-7950

See Supercession: 66-5350
(Superseded to 66-5350)

$16.99

$

Usually ships in 3-6 days

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 10

0

20

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 19

0

21

Toro 46-6980

SUPPORT-CABLE

$18.99

$

In Stock, only 2 left!

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

23

Toro 46-5410

DISCONTINUED

$

$

Not available

24

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

25

Toro 6-9780

See Supercession: 131-0848
(Superseded to 131-0848)

$74.99

$

Usually ships in 3-6 days

0

26

Toro 49-0120

DISCONTINUED

$

$

Not available

27

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

28

Toro 46-6441

DISCONTINUED

$

$

Not available

29

Toro 17-9380

HANDLE PIN

Note: Service Replacement Parts

$

$

Not available

30

Toro 32146-8

See Supercession: 32153-4
(Superseded to 32153-4)

Note: Service Replacement Parts

$0.99

$

Usually ships in 3-6 days

0

31

Toro 19-4050

KNOB

$18.99

$

In Stock, only 2 left!

0

32

Toro 46-5810

WIRE HARNESS

$217.99

$

Usually ships in 3-6 days

0

33

Toro 2412-50

FITTING-RING

$10.99

$

Usually ships in 3-6 days

0

34

Toro 48-2070

DISCONTINUED

$

$

Not available

35

Toro 39-0640

DISCONTINUED

$

$

Not available

36

Toro 39-0630

DISCONTINUED

$

$

Not available

37

Toro 36-5380

DISCONTINUED

$

$

Not available

38

Toro 32104-129

DISCONTINUED

$

$

Not available

39

Toro 46-8460

DISCONTINUED

$

$

Not available

Toro 38-4180

See Supercession: 99-5262
(Superseded to 99-5262)

Note: Not illustrated

$

$

Not available
