16770 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) Engine Assembly Parts Diagram

Walk-Behind Mower

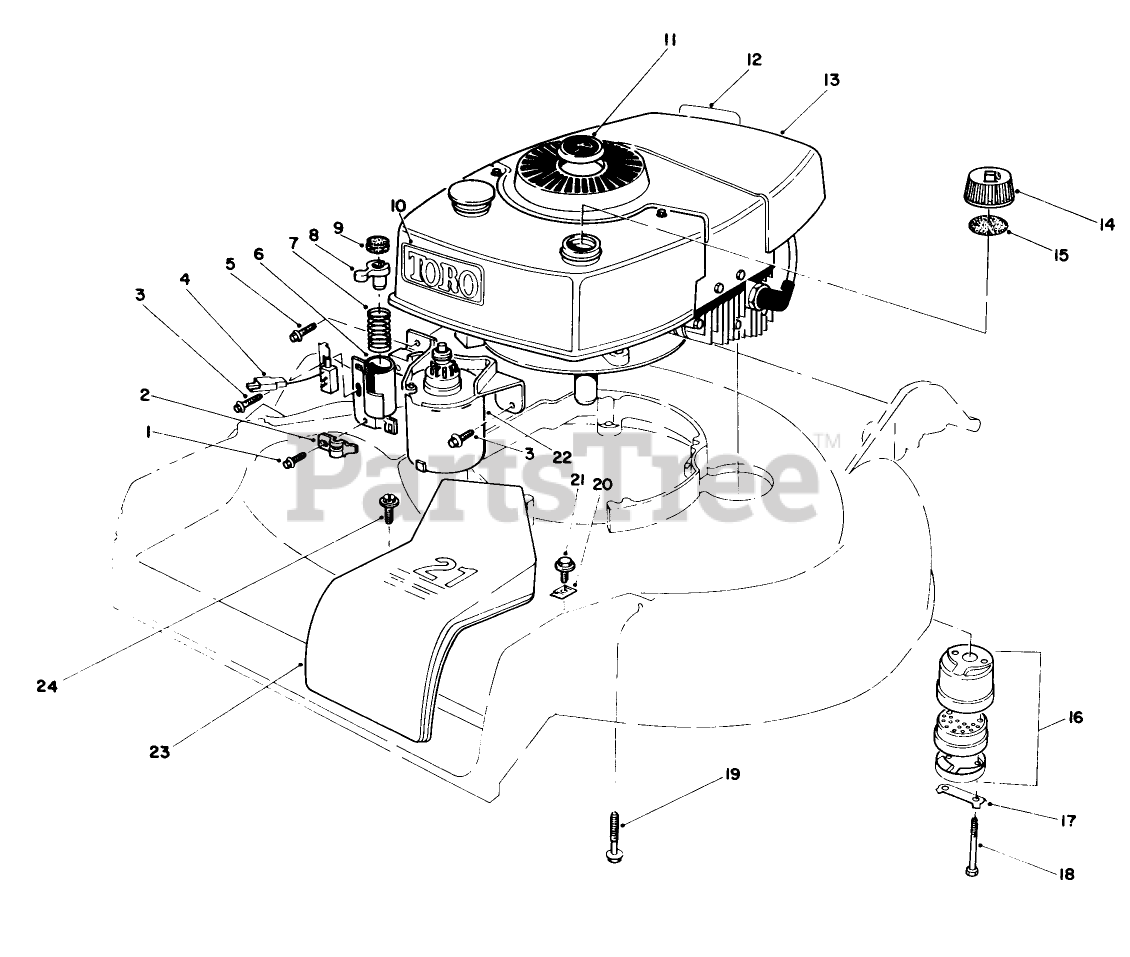

Engine Assembly Parts Diagram

  • Title

1

Toro 12-5450

SCREW

$10.99

$

Usually ships in 3-6 days

0

2

Toro 464530

Clamp-Cable

$

$

Currently unavailable

3

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 9

0

4

Toro 474530

Support Seat

$

$

Currently unavailable

5

Toro 11-9760

See Supercession: 49-2040
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

6

Toro 46-5840

DISCONTINUED

$

$

Not available

7

Toro 47-2180

DISCONTINUED

$

$

Not available

8

Toro 46-5820

DISCONTINUED
(Superseded to 47-7350)

$

$

Not available

9

Toro 434670

Pad-Friction

$

$

Currently unavailable

10

Toro 44-0510

See Supercession: 70-2200
(Superseded to 70-2200)

$5.99

$

In Stock, only 2 left!

0

11

Toro 38-1480

PLUG BUTTON

$16.99

$

In Stock, only 1 left!

0

12

Toro 37-1580

DISCONTINUED

$

$

Not available

13

Toro 221-730

Engine

$

$

Currently unavailable

14

Toro 42-0682

DISCONTINUED

$

$

Not available

15

Toro 20-4620

GAS CAP GASKET

$11.99

$

Usually ships in 3-6 days

0

16

Toro 5-4769

MUFFLER ASM

$67.99

$

Usually ships in 3-6 days

0

17

Toro 3-5094

CLIP - LOCKING

$12.99

$

Usually ships in 3-6 days

0

18

Toro 321-20

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

19

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$

$

Not available

20

Toro 46-5610

See Supercession: 62-3720
(Superseded to 62-3720)

$2.99

$

In Stock, only 1 left!

0

21

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

22

Toro 49-4210

DISCONTINUED

$

$

Not available

23

Toro 46-4780

BELT COVER 21" S D

$

$

Not available

24

Toro 12-5450

SCREW

$10.99

$

Usually ships in 3-6 days

0

Toro 39-5930

DISCONTINUED

Note: Not illustrated

$

$

Not available
