16771 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

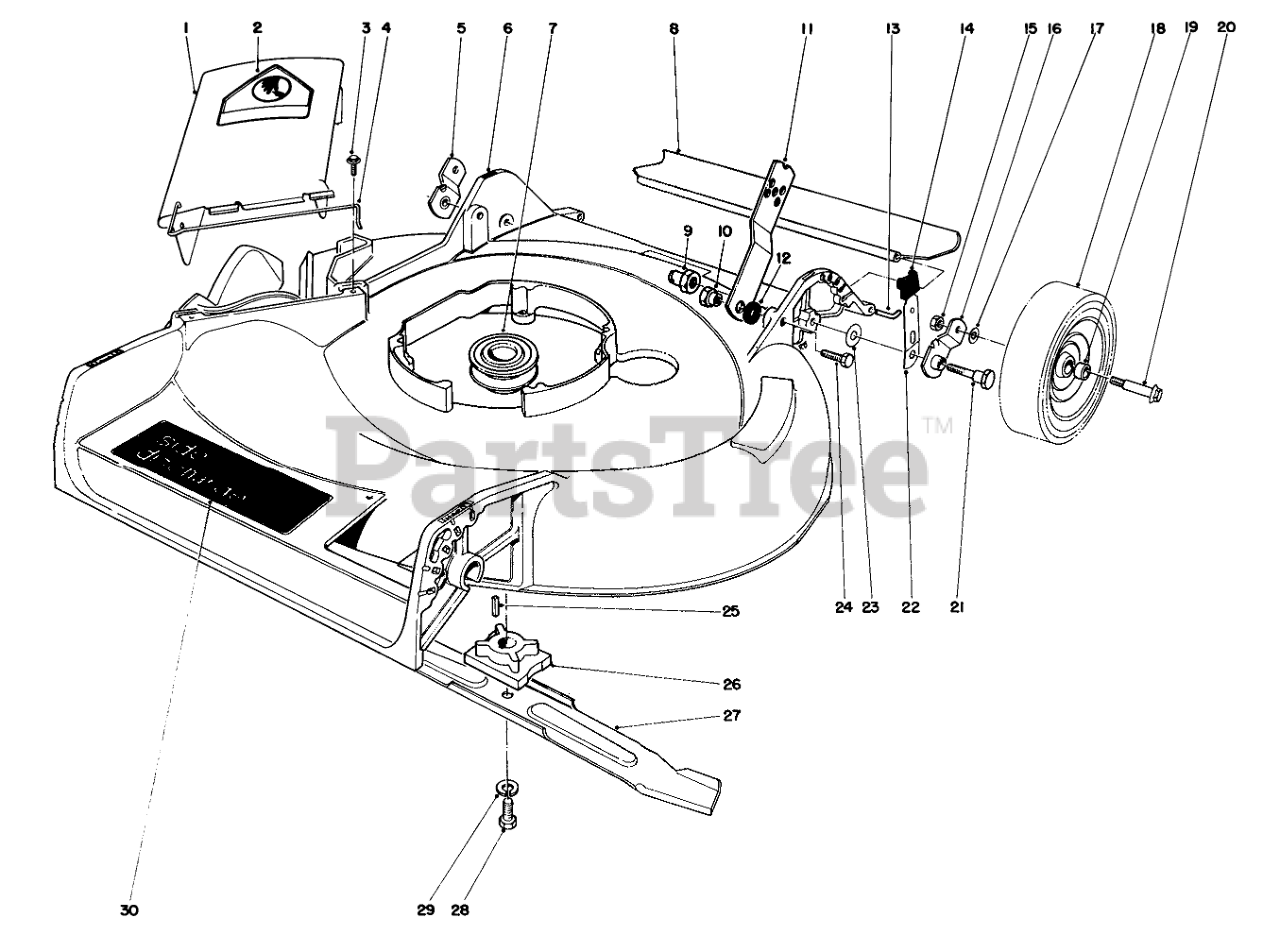

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 27-7817

Deflector (Incl. Ref #2 & 4)
(Superseded to 13-4049)
Usually ships same day

Not available

$

$

2

Toro Part# 39-5770

DECAL-DANGER
Usually ships in 1 day

$

$6.35

0

3

Toro Part# 46-6810

SCREW AND WASHER ASM
Usually ships in 1 day

$

$3.08

0

4

Toro Part# 20-2640

SPRING HINGE
Usually ships same day

Not available

$

$

5

Toro Part# 20-2130

Pivot Arm
(Superseded to 98-1527)
Usually ships same day

Not available

$

$

6

Toro Part# 11-4639

Housing
(Superseded to 99-5250)
Usually ships same day

Not available

$

$

7

Toro Part# 23-0130

Pulley
(Superseded to 93-0278)
Usually ships in 5 to 8 days

$

$35.63

0

8

Toro Part# 224950

Rear Shield
Usually ships same day

Currently unavailable

$

$

9

Toro Part# 12-2080

HANDLE PIVOT NUT
Usually ships in 5 to 8 days

$

$18.21

0

10

Toro Part# 27-6520

HANDLE PIVOT NUT
Usually ships in 1 day

$

$7.13

0

11

Toro Part# 27-7070

Handle Latch
(Superseded to 100-3296-03)
Usually ships same day

Not available

$

$

12
Usually ships in 1 day

$

$3.30

0

13

Toro Part# 33-3201

SHIELD ROD
Usually ships in 5 to 8 days

$

$9.05

0

14
Usually ships in 1 day

$

$4.46

0

15

Toro Part# 32146-6

Nut
(Superseded to 3296-6)
Usually ships in 1 day

$

$1.44

0

16

Toro Part# 20-2140

Pivot Arm
(Superseded to 98-1511)
Usually ships in 1 day

$

$28.73

0

17
Usually ships in 1 day

$

$1.38

0

18

Toro Part# 27-6200

Wheel & Tire Assembly (Incl. Ref. #19)
Usually ships in 1 day

$

$45.08

0

19
Usually ships in 1 day

$

$2.23

0

20

Toro Part# 27-6230

BOLT-WHEEL
Usually ships in 1 day

$

$6.59

0

21

Toro Part# 3-0655

5/16-18 PIVOT SCREW
Usually ships in 1 day

$

$11.90

0

22

Toro Part# 25-8000

SPRING ARM ASM
Usually ships in 1 day

$

$54.32

0

23

Toro Part# 5-4460

WASHER-PIVOT
Usually ships in 1 day

$

$5.56

0

24

Toro Part# 322-6

SCREW-HH
Usually ships in 1 day

$

$3.58

0

25

Toro Part# 5-7310

Key Square
Usually ships same day

Not available

$

$

26

Toro Part# 46-4870

Blade Retainer
(Superseded to 49-7890)
Usually ships in 5 to 8 days

$

$49.82

0

27

Toro Part# 20-2720

Blade
(Superseded to 20-2720-03)
Usually ships in 5 to 8 days

$

$29.56

0

28
Usually ships in 1 day

$

$5.58

0

29

Toro Part# 3253-22

WASHER-LOCK
Usually ships in 1 day

$

$1.88

0

30

Toro Part# 44-0440

Decal-Side Discharge
Usually ships same day

Not available

$

$
