1678-0 - Briggs & Stratton 6.5kW Home Standby Generator Control Panel Parts Diagram

6.5kW Home Standby Generator

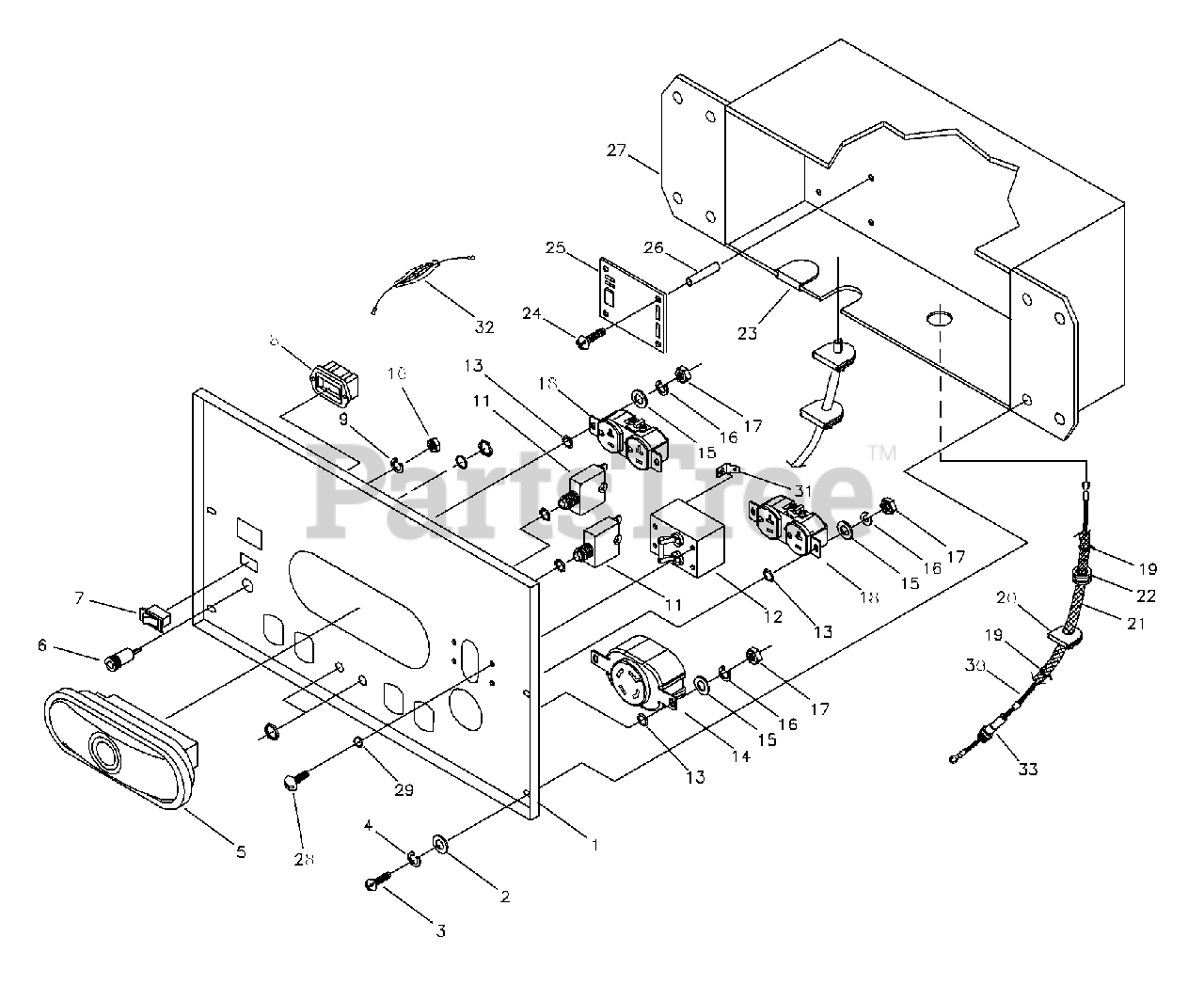

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton BB4689GS

PANEL, Control

$207.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 23897GS

WASHER, Flat

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 49226GS

WASHER, Lock

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 91526GS

MACHINE SCREW, Phllps Pn Hd

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B4695GS

LIGHT, 12V Backup

$144.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B4694GS

JACK, Coaxial DC Power
(Superseded to 312004GS)

$10.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 20984GS

SWITCH, Rocker (On - Off)

$9.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 77604GS

METER, Hour, Hobbs

$112.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 43182GS

WASHER, Lock

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 51714GS

NUT

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 75207GS

CIRCUIT BREAKER, 20A Manual Reset
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 82081GS

BREAKER, 30A Manual 2-Pole

$

$

Not available

13

Briggs & Stratton 23365GS

WASHER, Shakeproof

$2.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 43437GS

OUTLET, 120/240V - 30A

$17.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 43180GS

WASHER, Flat

$4.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22264GS

WASHER, Lock

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 51715GS

NUT, Hex

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 68759GS

OUTLET, 120V - 20A Duplex

$24.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 28739AGS

WRAP, Black Tie

$1.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 84135GS

GROMMET, Rubber

$3.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 84409GS

SLEEVING, Flexo

$4.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton B1127GS

GROMMET, Rubber

$4.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84242GS

GROMMET, Plastic

$4.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 64526GS

SCREW, Self Tapping

$2.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 83970GS

BOARD, System Control

$

$

Not available

26

Briggs & Stratton 64525GS

STAND OFF, Hex

$5.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B92069GS

BOX, Control Panel

$192.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 36900GS

MACHINE SCREW, Phllps Pn Hd

$

$

Currently unavailable

29

Briggs & Stratton 23364GS

WASHER, Shakeproof

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 190914GS

ASSY, Wire Harness

$

$

Currently unavailable

31

Briggs & Stratton 74138GS

ADAPTER, Male Disconnect

$17.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton B5112GS

ASSY, Diode

$95.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton A3746GS

ASSY, Fuse Holder

$16.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton A3747GS

FUSE, 10A Normal BLO

Note: (Included with Item 33)

$

$

Currently unavailable
