16793 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

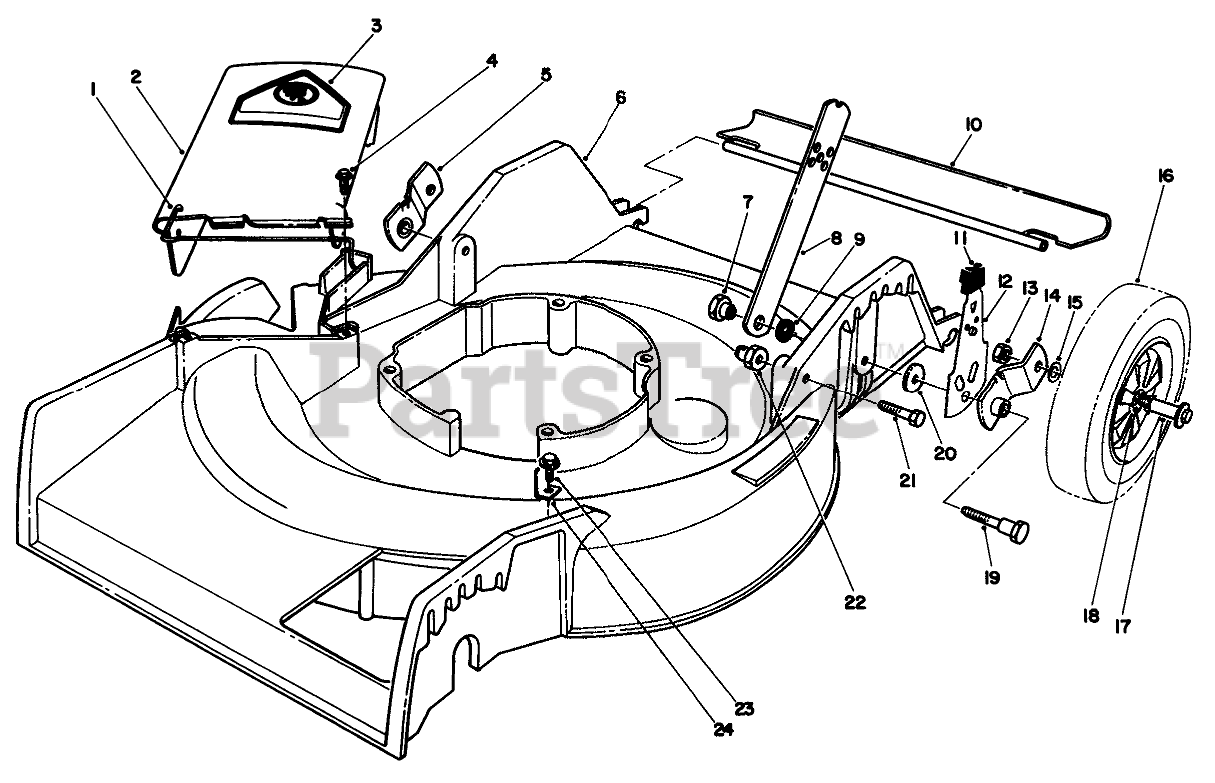

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 20-2640

SPRING HINGE
Usually ships same day

Not available

$

$

2

Toro Part# 13-4049

Deflector (Incl. Ref. #1 & 3)
Usually ships same day

Not available

$

$

3

Toro Part# 39-5770

DECAL-DANGER
Usually ships in 1 day

$

$6.35

0

4

Toro Part# 46-6811

SCREW-HWH
Usually ships in 1 day

$

$2.23

0

5

Toro Part# 20-2130

Pivot Arm
(Superseded to 98-1527)
Usually ships same day

Not available

$

$

6

Toro Part# 13-4769

HOUSING W/CARTON
Usually ships same day

Not available

$

$

7

Toro Part# 27-6520

HANDLE PIVOT NUT
Usually ships in 1 day

$

$7.13

0

8

Toro Part# 27-7080

HANDLE LATCH
Usually ships in 5 to 8 days

$

$18.21

0

Usually ships in 1 day

$

$3.30

0

10

Toro Part# 66-5990

SHIELD - TRAILING
Usually ships same day

Not available

$

$

11
Usually ships in 1 day

$

$4.46

0

12

Toro Part# 66-6030

REAR SPRING ARM ASM
Usually ships in 5 to 8 days

$

$11.77

0

13

Toro Part# 52-3620

Nut
(Superseded to 32153-11)
Usually ships in 1 day

$

$3.53

0

14

Toro Part# 20-2140

Pivot Arm
(Superseded to 98-1511)
Usually ships in 1 day

$

$28.73

0

15
Usually ships in 1 day

$

$1.38

0

16

Toro Part# 27-6200

Wheel & Tire Assembly (Incl. Ref. #18)
Usually ships in 1 day

$

$45.08

0

17

Toro Part# 27-6230

BOLT-WHEEL
Usually ships in 1 day

$

$6.59

0

18
Usually ships in 1 day

$

$2.23

0

19

Toro Part# 28-8880

PIVOT SCREW
Usually ships in 1 day

$

$7.42

0

20

Toro Part# 33-0390

PIVOT WASHER
Usually ships in 1 day

$

$2.64

0

21

Toro Part# 322-6

SCREW-HH
Usually ships in 1 day

$

$3.58

0

22

Toro Part# 12-2080

HANDLE PIVOT NUT
Usually ships in 5 to 8 days

$

$18.21

0

23

Toro Part# 32144-70

SCREW-HWHTF
Usually ships in 1 day

$

$1.81

0

24

Toro Part# 70-8080

BELT GUIDE
Usually ships in 1 day

$

$3.05

0
