16810 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) GEAR CASE ASSEMBLY-MODEL 16810 Parts Diagram

Walk-Behind Mower

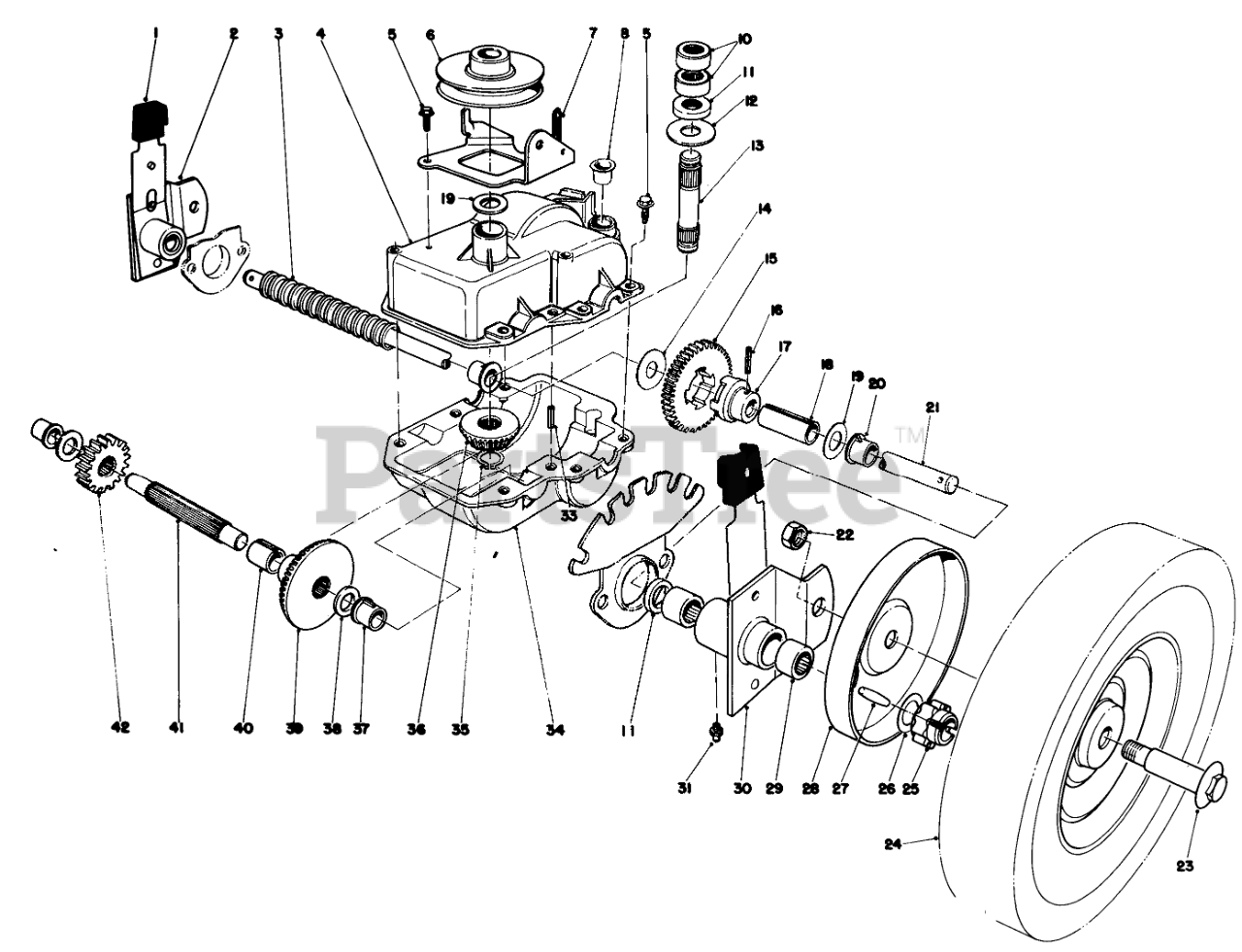

GEAR CASE ASSEMBLY-MODEL 16810 Parts Diagram

  • Title

1

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 20+

0

2

Toro 37-9680

Pivot Arm L.H. (Incl. Ref. #29 & 32)

$

$

Not available

3

Toro 37-9280

Cover-Drive Shaft

$

$

Not available

4

Toro 29-9360

Case Upper

$

$

Not available

5

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

6

Pulley

$

$

Not available

7

Toro 36-6360

Belt Guide Bracket

$

$

Not available

8

Toro 12-0510

Caplug

$

$

Not available

10

Toro 252-97

Bearing
(Superseded to 47-7270)

$33.99

$

In Stock, only 4 left!

0

11

Toro 253-140

Seal
(Superseded to 47-6730)

$14.99

$

In Stock, Qty 20+

0

12

Toro 256-196

Thrust Washer
(Superseded to 47-2910)

$14.99

$

In Stock, only 1 left!

0

13

Toro 8-5659

Input Shaft & Pulley Ass-y (Incl. Ref. #6)

$

$

Not available

14

Toro 29-9690

WASHER

$14.99

$

Usually ships in 3-6 days

0

15

Toro 29-9260

Gear
(Superseded to 14-2009)

$

$

Not available

16

Toro 32121-95

COIL PIN
(Superseded to 32121-108)

$7.49

$

Usually ships in 3-6 days

0

17

Toro 36-6280

ADAPTER DRIVE

$

$

Not available

18

Toro 36-9120

Spacer-Output Shaft

$

$

Not available

19

Toro 36-4780

WASHER-PLAIN

$8.49

$

In Stock, Qty 20+

0

20

Toro 29-9310

Bushing
(Superseded to 47-5220)

$

$

Not available

21

Toro 36-6300

DRIVE SHAFT

$

$

Not available

22

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

23

Toro 3-2652

Bolt

$

$

Not available

24

Toro 12-2610

Wheel & Tire
(Superseded to 11-1279)

$

$

Not available

25

Toro 18-9690

Pinion
(Superseded to 99-2532)

$16.99

$

Usually ships in 3-6 days

0

26

Toro 18-9810

WASHER-THRUST

$9.99

$

In Stock, only 2 left!

0

27

Toro 3284-3

PIN-GROOVED

$3.49

$

In Stock, Qty 12

0

28

Toro 23-0280

WHEEL COVER

$

$

Not available

29

Toro 252-96

Needle Baring
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 20+

0

30

Toro 37-9690

Pivot Arm R.H. (Incl. Ref. #29 & 32)

$

$

Not available

31

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

33

Toro 32121-100

ROLL PIN 3/16 X 1 IN

$2.49

$

Usually ships in 3-6 days

0

34

Toro 29-9410

LOWER GEAR CASE CAST

$

$

Not available

35

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

36

Toro 29-9200

Pinion Bevel

$

$

Not available

37

Toro 29-9350

Botching Shaft
(Superseded to 52-5410)

$

$

Not available

38

Toro 36-4790

WASHER-THRUST

$3.49

$

Usually ships in 3-6 days

0

39

Toro 29-9210

Bevel Gear

$

$

Not available

40

Toro 36-9130

Spacer-Short Shaft

$

$

Not available

41

Toro 29-9290

Short Shaft

$

$

Not available

42

Toro 29-9230

Gear

$

$

Not available

Toro 37-4730

Gear Case Assy. Complete (Incl. Ref. #4-21 & 33-42)

$

$
