1682685 - Simplicity 44" Mower Deck 44" Mower Deck - Belt, Pulley, & Hitch Parts Diagram

44" Mower Deck

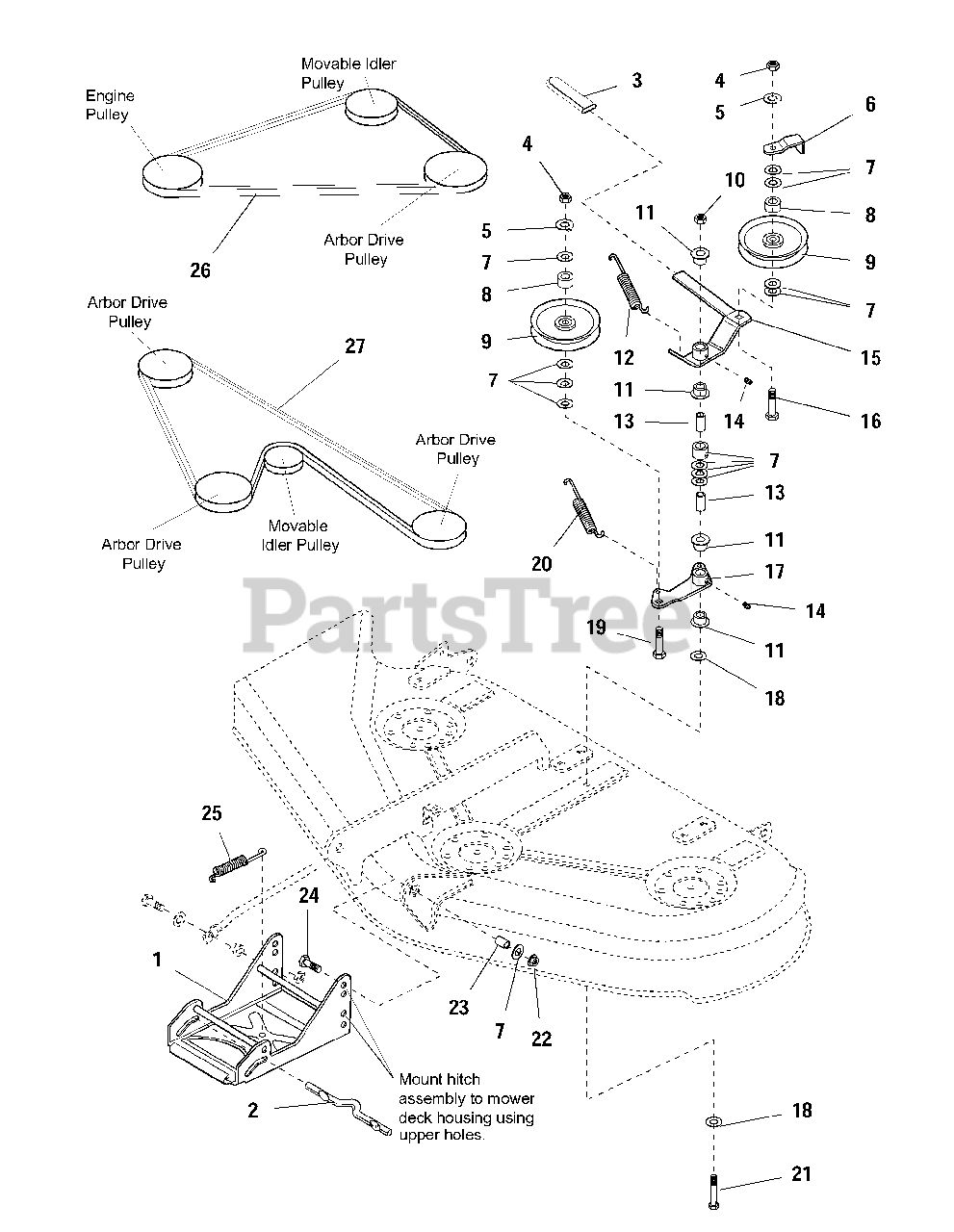

44" Mower Deck - Belt, Pulley, & Hitch Parts Diagram

  • Title

1

Simplicity 1707432ASM

HITCH ASSEMBLY

$149.99

$

Usually ships in 2-12 days

0

2

Simplicity 1715759SM

ROD, Latch

$7.99

$

In Stock, Qty 8

0

3

Simplicity 1665835

GRIP, Lever
(Superseded to 1665835YP)

$7.49

$

Usually ships in 2-12 days

0

4

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 12

0

5

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

6

Simplicity 1677135ASM

BELT STOP, Idler

$12.99

$

In Stock, only 2 left!

0

7

Simplicity 1924940SM

WASHER, Plain, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

9

Simplicity 1685150SM

PULLEY, Idler

Note: (Incl. Ref. 8)

$34.99

$

In Stock, Qty 8

0

10

Simplicity 1930645SM

NUT, Hex Flange, 2-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

11

Simplicity 1676148SM

BUSHING

$5.99

$

In Stock, Qty 10

0

12

Simplicity 1715435SM

SPRING

$9.49

$

In Stock, Qty 9

0

13

Simplicity 1674669SM

SPACER

$11.99

$

In Stock, Qty 8

0

14

Simplicity 2812808SM

FITTING, Grease

$4.49

$

In Stock, only 2 left!

0

15

Simplicity 1704658SM

LEVER ASSEMBLY, Idler

Note: (Incl. Ref. Nos. 11 & 14)

$48.99

$

In Stock, Qty 7

0

16

Simplicity 1960315SM

CARRIAGE BOLT, 3/8-16 x 2

$6.49

$

In Stock, only 1 left!

0

17

Simplicity 1718561SM

LEVER ASSEMBLY, Idler Arm

Note: (Incl, Ref. Nos. 11 & 14)

$50.99

$

Usually ships in 2-12 days

0

18

Simplicity 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 17

0

19

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 10

0

20

Simplicity 1656936SM

SPRING

$9.99

$

In Stock, Qty 16

0

21

Simplicity 1923938SM

CAPSCREW, Hex Hd, 3/8-16 x 3-1/2
(Superseded to 703182)

$6.99

$

Usually ships in 2-12 days

0

22

Simplicity 1919439SM

NUT, Hex Nylon Lock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, Qty 12

0

24

Simplicity 1921969SM

CAPSCREW, Hex Hd, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, Qty 6

0

25

Simplicity 2156302

SPRING
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 11

0

26

Simplicity 2167031

V-BELT, Arbor Drive, 44" Deck
(Superseded to 1721532SM)

$58.99

$

In Stock, only 4 left!

0

27

Simplicity 1601672SM

V-BELT, Mower Drive, 44" Deck

$32.99

$

In Stock, Qty 11

0
