16830 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) Gear Case Assembly (model No. 16830) Parts Diagram

Walk-Behind Mower

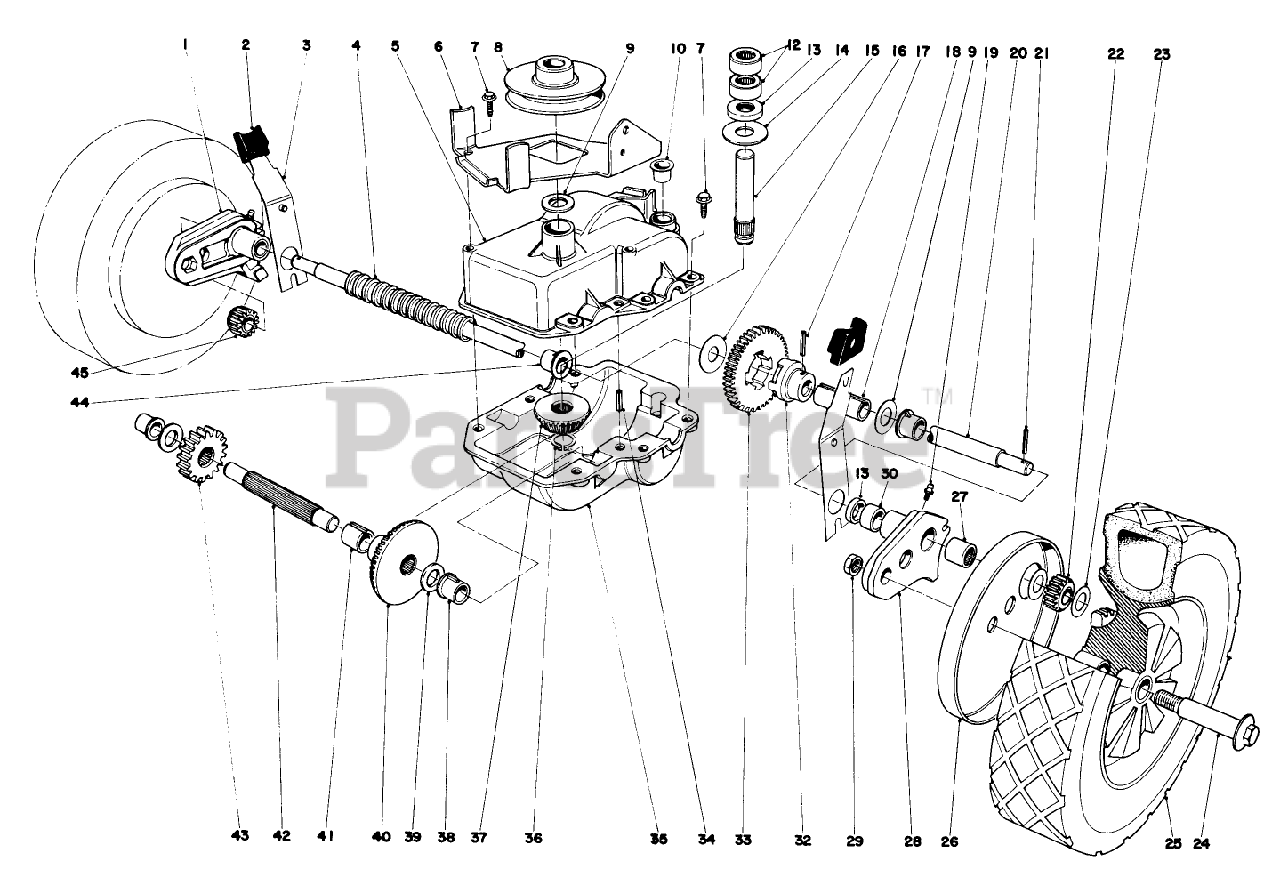

Gear Case Assembly (model No. 16830) Parts Diagram

  • Title

1

Toro 29-9590

See Supercession: 49-7720
(Superseded to 49-7720)

$

$

Not available

2

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

3

Toro 37-4820

DISCONTINUED

$

$

Not available

4

Toro 37-9281

DISCONTINUED

$

$

Not available

5

Toro 29-9360

DISCONTINUED

$

$

Not available

6

Toro 37-4460

DISCONTINUED

$

$

Not available

7

Toro 11-9760

See Supercession: 49-2040
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

8

Pulley

$

$

Not available

9

Toro 36-4780

WASHER-PLAIN

$8.49

$

In Stock, Qty 11

0

10

Toro 12-0510

DISCONTINUED

$

$

Not available

12

Toro 252-97

See Supercession: 47-7270
(Superseded to 47-7270)

$34.99

$

In Stock, only 2 left!

0

13

Toro 253-140

See Supercession: 47-6730
(Superseded to 47-6730)

$15.99

$

In Stock, Qty 14

0

14

Toro 256-196

See Supercession: 47-2910
(Superseded to 47-2910)

$15.99

$

Usually ships in 3-6 days

0

15

Toro 8-5659

DISCONTINUED

$

$

Not available

16

Toro 29-9690

WASHER

$

$

Not available

17

Toro 32121-95

See Supercession: 32121-108
(Superseded to 32121-108)

$7.49

$

In Stock, only 1 left!

0

18

Toro 36-9120

DISCONTINUED

$

$

Not available

19

Toro 302-18

FITTING-GREASE

$4.49

$

Usually ships in 3-6 days

0

20

Toro 29-9390

OUTPUT SHAFT

$

$

Not available

21

Toro 32121-98

See Supercession: 32121-88
(Superseded to 32121-88)

$8.99

$

In Stock, only 1 left!

0

22

Toro 36-8100

See Supercession: 39-7730
(Superseded to 39-7730)

$

$

Not available

23

Toro 29-9700

WASHER

$

$

Not available

24

Toro 27-6230

BOLT-WHEEL

$8.99

$

In Stock, only 2 left!

0

25

Toro 26-7790

See Supercession: 11-1419
(Superseded to 11-1419)

$

$

Not available

26

Toro 36-5630

See Supercession: 36-5630-03
(Superseded to 36-5630-03)

$

$

Not available

27

Toro 252-96

See Supercession: 117-3500
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 7

0

28

Toro 29-9640

DISCONTINUED
(Superseded to 49-7710)

$

$

Not available

29

Toro 32146-6

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 10

0

30

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

32

Toro 36-6280

DISCONTINUED

$

$

Not available

33

Toro 29-9270

See Supercession: 29-9271
(Superseded to 29-9271)

$100.99

$

Usually ships in 3-6 days

0

34

Toro 32121-100

ROLL PIN 3/16 X 1 IN

$2.49

$

Usually ships in 3-6 days

0

35

Toro 29-9410

DISCONTINUED

$

$

Not available

36

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

37

Toro 29-9200

DISCONTINUED

$

$

Not available

38

Toro 29-9350

See Supercession: 52-5410
(Superseded to 52-5410)

$

$

Not available

39

Toro 36-4790

WASHER-THRUST

$3.49

$

Usually ships in 3-6 days

0

40

Toro 29-9210

DISCONTINUED

$

$

Not available

41

Toro 37-4760

DISCONTINUED

$

$

Not available

42

Toro 29-9290

DISCONTINUED

$

$

Not available

43

Toro 29-9220

Gear

$

$

Currently unavailable

44

Toro 29-9310

See Supercession: 47-5220
(Superseded to 47-5220)

$

$

Not available

45

Toro 38-3120

See Supercession: 39-7740
(Superseded to 39-7740)

$188.99

$

Usually ships in 3-6 days

0

Toro 37-4740

REPAIR AS NEEDED

Note: Not illustrated

$

$

Not available
