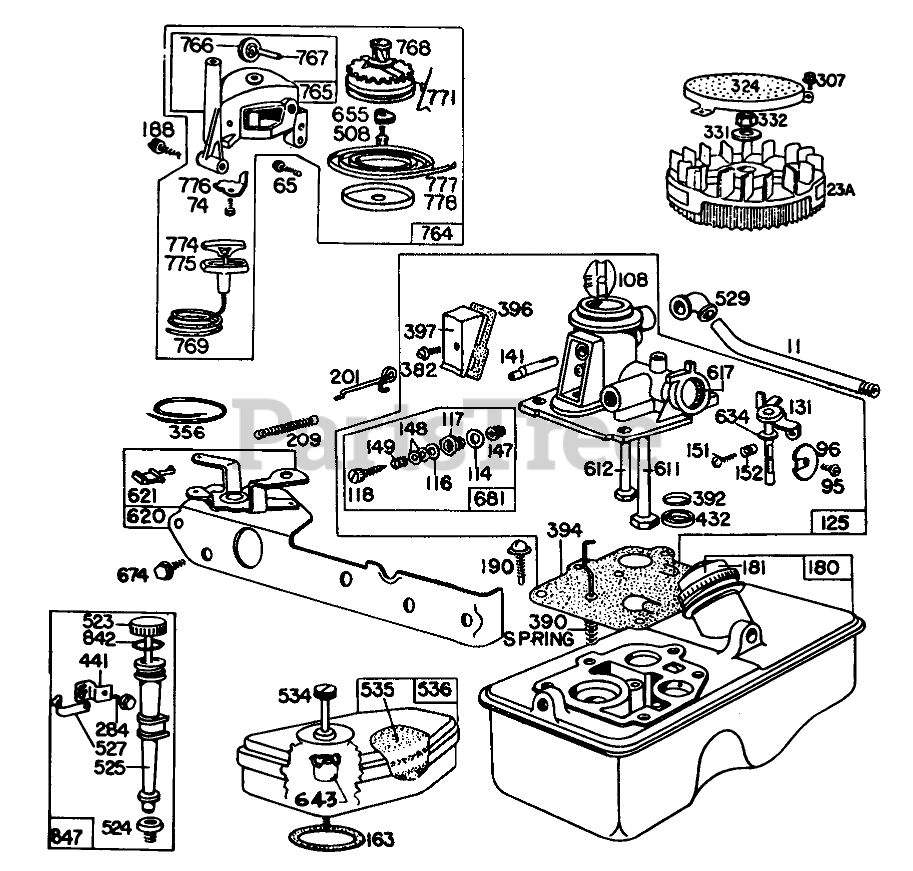

16870 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) BRIGGS & STRATTON ENGINE MODEL NO. 92908-2055-01 21" HAND PROPELLED (MODEL 16860) Parts Diagram

Walk-Behind Mower

BRIGGS & STRATTON ENGINE MODEL NO. 92908-2055-01 21" HAND PROPELLED (MODEL 16860) Parts Diagram

  • Title
Usually ships in 1 day

$

$7.37

0

23A

Briggs & Stratton Part# 299982

Key-Flywheel
(Superseded to 394848)
Usually ships same day

Not available

$

$

65

Briggs & Stratton Part# 93587

Screw-Starter Mounting
(Superseded to 691083)
Usually ships in 6 to 12 days

$

$4.70

0

74

Briggs & Stratton Part# 93490

Screw
(Superseded to 691660)
Usually ships in 1 day

$

$3.01

0

95

Briggs & Stratton Part# 93499

Screw
(Superseded to 691437)
Usually ships in 1 day

$

$3.01

0

Usually ships in 6 to 12 days

$

$7.26

0

108

Briggs & Stratton Part# 298819

Valve-Choke
(Superseded to 280178)
Usually ships same day

Not available

$

$

114

Briggs & Stratton Part# 66594

Gasket Valve Nut
(Superseded to 691608)
Usually ships in 1 day

$

$5.02

0

116

Briggs & Stratton Part# 65978

Packing-Needle
(Superseded to 691606)
Usually ships in 1 day

$

$4.35

0

117

Briggs & Stratton Part# 230590

Nut-Needle Valve
(Superseded to 690504)
Usually ships in 1 day

$

$2.78

0

118

Briggs & Stratton Part# 23433

Valve-Needle
(Superseded to 690266)
Usually ships in 1 day

$

$7.48

0

125

Briggs & Stratton Part# 390065

Carburetor Assembly
(Superseded to 395957)
Usually ships same day

Not available

$

$

131

Briggs & Stratton Part# 299977

Shaft & Lever-Throttle
Usually ships in 6 to 12 days

$

$12.51

0

Usually ships in 6 to 12 days

$

$11.17

0

147

Briggs & Stratton Part# 230591

Seat-Needle Valve
(Superseded to 692134)
Usually ships in 1 day

$

$7.37

0

148

Briggs & Stratton Part# 22235

Washer-Needle Valve
(Superseded to 690257)
Usually ships in 1 day

$

$3.68

0

149

Briggs & Stratton Part# 26336

Spring Needle Valve
(Superseded to 691592)
Usually ships in 1 day

$

$2.78

0

Usually ships in 6 to 12 days

$

$3.12

0

152

Briggs & Stratton Part# 260746

Spring-Throttle Adj
(Superseded to 691783)
Usually ships in 1 day

$

$6.70

0

163

Briggs & Stratton Part# 270816

Gasket-Air Cleaner Mtg.
(Superseded to 271139S)
Usually ships same day

Not available

$

$

180

Toro Part# 391684

Tank Assembly-Fuel
Usually ships same day

Currently unavailable

$

$

181

Briggs & Stratton Part# 298425

Cap-Fuel Tank
(Superseded to 493982S)
Usually ships in 1 day

$

$4.68

0

188

Briggs & Stratton Part# 93585

Screw-Sem
(Superseded to 691103)
Usually ships in 1 day

$

$3.12

0

190
Usually ships same day

Not available

$

$

201
Usually ships in 6 to 12 days

$

$4.57

0

209
Usually ships same day

Not available

$

$

284

Briggs & Stratton Part# 93572

Screw
(Superseded to 690664)
Usually ships in 1 day

$

$4.01

0

307

Briggs & Stratton Part# 93490

Screw
(Superseded to 691660)
Usually ships in 1 day

$

$3.01

0

324

Briggs & Stratton Part# 222063

Screw-Rotating
(Superseded to 223006)
Usually ships same day

Not available

$

$

331

Briggs & Stratton Part# 220865

Washer
(Superseded to 690582)
Usually ships in 1 day

$

$3.68

0

332

Briggs & Stratton Part# 92284

Nut
(Superseded to 690662)
Usually ships in 1 day

$

$4.80

0

356

Briggs & Stratton Part# 298479

Wire-Ground
(Superseded to 398808)
Usually ships in 1 day

$

$9.16

0

382

Briggs & Stratton Part# 93545

Screw-Choke Link Cover
Usually ships in 6 to 12 days

$

$2.90

0

390

Briggs & Stratton Part# 261015

Spring
(Superseded to 261249)
Usually ships same day

Not available

$

$

392

Briggs & Stratton Part# 260455

Spring-Fuel Pump
(Superseded to 692206)
Usually ships in 1 day

$

$3.90

0

394

Briggs & Stratton Part# 391681

Diaphragm-Carburetor
Usually ships in 1 day

$

$20.67

0

396

Briggs & Stratton Part# 270571

Gasket-Choke Link Cover
Usually ships in 1 day

$

$5.80

0

397
Usually ships same day

Not available

$

$

432

Briggs & Stratton Part# 221377

Cap-Spring
(Superseded to 690766)
Usually ships in 1 day

$

$3.90

0

441

Briggs & Stratton Part# 222530

Bracket-Oil Fill Tube
Usually ships same day

Not available

$

$

508

Briggs & Stratton Part# 93158

Screw
(Superseded to 692198)
Usually ships in 1 day

$

$5.02

0

523

Briggs & Stratton Part# 391838

Cap with Dipstick-Oil Filler
(Superseded to 495234)
Usually ships in 6 to 12 days

$

$11.50

0

524

Briggs & Stratton Part# 68838

Seal-Fill Tube
(Superseded to 281370S)
Usually ships in 1 day

$

$7.03

0

525
Usually ships in 6 to 12 days

$

$10.39

0

527

Briggs & Stratton Part# 222548

Clamp-Oil Fill Tube
Usually ships same day

Not available

$

$

529

Briggs & Stratton Part# 67838

Grommet
(Superseded to 692189)
Usually ships in 1 day

$

$4.35

0

534
Usually ships in 6 to 12 days

$

$4.24

0

535

Briggs & Stratton Part# 270579

Element Air Cleaner
(Superseded to 270579S)
Usually ships in 1 day

$

$6.92

0

536

Briggs & Stratton Part# 390055

Cleaner Assembly-Air
Usually ships same day

Not available

$

$

611

Briggs & Stratton Part# 297219

Pipe Fuel (long)
(Superseded to 297219S)
Usually ships in 1 day

$

$6.92

0

612

Briggs & Stratton Part# 296811

Pipe-Fuel
(Superseded to 497413S)
Usually ships in 1 day

$

$6.03

0

617

Briggs & Stratton Part# 270344

Seal-O Ring
(Superseded to 270344S)
Usually ships in 1 day

$

$2.90

0

620

Briggs & Stratton Part# 299974

Plate Carburetor Control
Usually ships in 6 to 12 days

$

$32.41

0

621

Briggs & Stratton Part# 297472

Switch-Stop
(Superseded to 297472S)
Usually ships same day

Not available

$

$

634
Usually ships in 1 day

$

$3.68

0

643

Briggs & Stratton Part# 221321

Cup-Air Cleaner
(Superseded to 280374)
Usually ships same day

Not available

$

$

655
Usually ships in 6 to 12 days

$

$5.02

0

674

Toro Part# 93447

Spacer-Fuel Tank
Usually ships same day

Currently unavailable

$

$

681
Usually ships in 1 day

$

$7.45

0

764

Briggs & Stratton Part# 391486

Starter Ass-y-Vertical Pull
(Superseded to 396082)
Usually ships same day

Not available

$

$

765

Briggs & Stratton Part# 299947

Housing, Vert. Pull Starter
(Superseded to 395914)
Usually ships in 6 to 12 days

$

$48.62

0

Usually ships in 6 to 12 days

$

$8.71

0

767

Briggs & Stratton Part# 231048

Pin-Small Rope Pulley
Usually ships in 6 to 12 days

$

$2.90

0

768

Briggs & Stratton Part# 299948

Pulley and Gear Assy.
Usually ships in 6 to 12 days

$

$20.46

0

769

Briggs & Stratton Part# 66734

Rope-Starter (48.6")
Usually ships in 1 day

$

$5.47

0

Usually ships in 6 to 12 days

$

$5.13

0

774

Briggs & Stratton Part# 280121

Insert-Starter Handle
(Superseded to 393152)
Usually ships in 1 day

$

$4.91

0

775

Briggs & Stratton Part# 280036

Grip-Starter Rope
(Superseded to 393152)
Usually ships in 1 day

$

$4.91

0

Usually ships in 6 to 12 days

$

$3.23

0

777
Usually ships in 6 to 12 days

$

$17.88

0

778
Usually ships in 6 to 12 days

$

$4.80

0

842

Briggs & Stratton Part# 270920

O-Ring
(Superseded to 691870)
Usually ships in 1 day

$

$4.01

0

847
Usually ships same day

Not available

$

$
